ABB ACS2355-03E-02A4-4

Name: ABB ACS2355-03E-02A4-4
Brand: IK AUTOMATION
Price: 1212 INR
Availability: InStock

Price 1212 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ABB ACS2355-03E-02A4-4 Specification

Surface Finish
Matte

Overheating Protection
YES

Mounting Type
Panel Mounting

Feature
Built-in Keypad, Display, Programmable Functions

Humidity %
Max 95% non-condensing

Efficiency
High (Above 95%)

Operating Temperature
-10C to +50C

Shape
Rectangular

IP Rating
IP20

Power Factor
>0.96

Insulation Material
High Grade Plastic

Connector Type
Terminal Block

Product Type
AC Drive / Frequency Inverter

Application
Industrial Automation / Motor Speed Control

Protection Level
Overload, Overvoltage, Undervoltage, Short Circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Optimized for Drive Control / Energy Saving Operation

Output Type
Analog / Digital Output

Color
White / Gray

Dimension (L*W*H)
Approx. 180 mm x 100 mm x 120 mm

Weight
2.4 kg

Size
Standard ABB Size (Compact)

Phase
Three Phase

Input Voltage
380-480V AC

No Of Poles
3

Material
ABS Plastic / Metal

Connection Type
Screw Terminal

Series
ACS2355

Display Type
LCD Display with Keypad

Communication Interface
RS485 (Modbus), Optional Ethernet

Model Number
ACS2355-03E-02A4-4

Input Current
2.4A

Storage Temperature
-20C to +60C

Output Voltage
Up to 480V AC

Motor Power Output
0.75 kW (1 HP)

Control Method
Vector Control / V/F Control

Cooling Method
Fan Cooled

ABB ACS2355-03E-02A4-4 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ABB ACS2355-03E-02A4-4

ABB ACS2355-03E-02A4-4 About

USED ABB ACS2355-03E-02A4-4

ABB ACS2355-03E-02A4-4

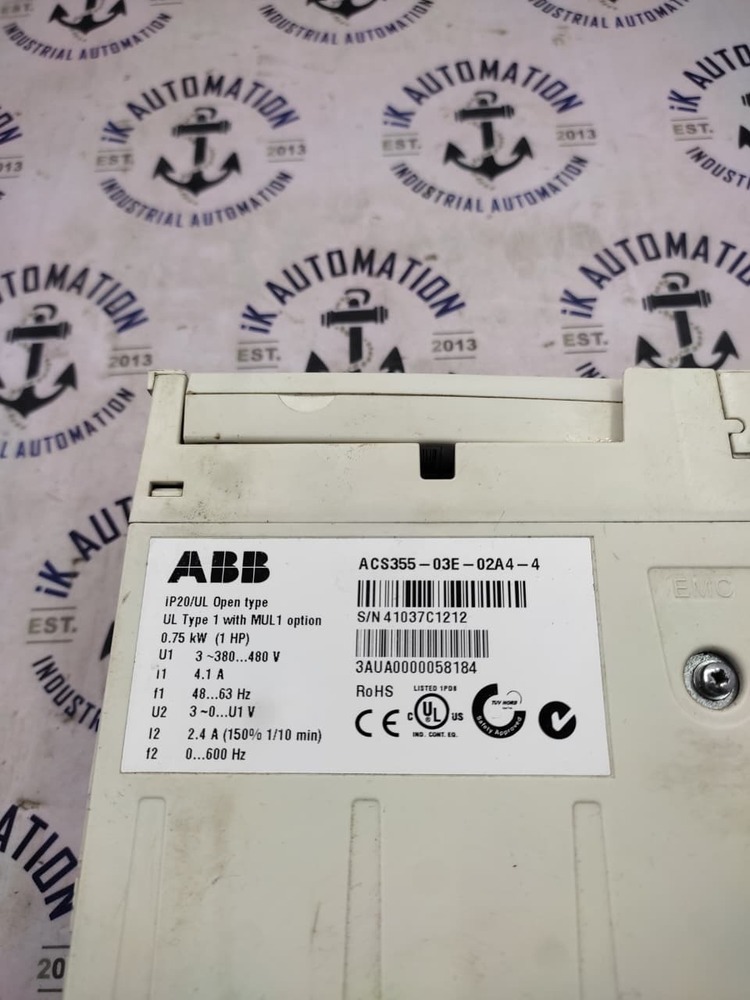

Key Technical Specifications

Power Rating: 0.75 kW (1.0 HP)

Output Current: 2.4 A

Input Voltage: 3-Phase, 380 to 480 V AC (50/60 Hz)

Output Frequency: 0 to 599 Hz

Protection Rating: IP20 (for cabinet installation)

Control Modes: Scalar (V/f) and Vector control

Comprehensive Motor Control for Industrial Automation

The ABB ACS2355-03E-02A4-4 offers advanced motor control, allowing facilities to optimize efficiency in a wide range of automation processes. Its robust construction, built-in protective features, and highly efficient operation make it ideal for demanding environments where reliability and precision are essential.

User-Friendly Operation and Communication Flexibility

Equipped with a clear LCD display and keypad, setting parameters becomes straightforward, while RS485 (Modbus) support ensures smooth connectivity. Optional Ethernet facilitates enhanced system integration, making this drive adaptable to modern industrial networks.

FAQ's of ABB ACS2355-03E-02A4-4:

Q: How do I set up and program the ABB ACS2355-03E-02A4-4 for my motor application?

A: To set up the ACS2355-03E-02A4-4, mount the unit on a panel using screw terminals for electrical connections. Use the built-in LCD display and keypad to navigate the intuitive menu and program motor parameters according to your application's requirements.

Q: What protections does the ACS2355-03E-02A4-4 offer to ensure safe operation?

A: The drive features comprehensive protection mechanisms including overload, overvoltage, undervoltage, short circuit, and overheating safeguards, ensuring operational safety and extending equipment lifespan.

Q: When should I use vector control versus V/F control on this drive?

A: Vector control offers higher precision and dynamic performance for demanding applications such as conveyer belts or cranes, while V/F control is suitable for standard motor speed control where cost-effectiveness and simplicity are priorities.

Q: Where can the ACS2355-03E-02A4-4 be installed, and what are the environmental constraints?

A: This inverter is designed for panel mounting within industrial environments. It operates reliably between -10C to +50C, and can be stored at temperatures from -20C to +60C. Ensure non-condensing humidity levels up to 95% and avoid exposure to excessive dust or corrosive substances.

Q: What is the benefit of the energy-saving feature in the ACS2355 series?

A: The drive's optimized energy consumption reduces operational costs and environmental impact by maintaining high efficiency levels (above 95%), making it a sustainable option for continuous motor operation.

Q: How does the communication interface enhance usage and integration?

A: The standard RS485 (Modbus) port, along with optional Ethernet, enables seamless integration with modern industrial automation systems, allowing for remote monitoring, control, and programming.
