ABB ACS355-03E-08A8-4

Price 1212 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ABB ACS355-03E-08A8-4 Specification

Humidity %
<95% RH, non-condensing

Overheating Protection
Thermal protection built-in

IP Rating
IP20

Insulation Material
Molded Plastic

Surface Finish
Matte Finish

Efficiency
Up to 97%

Mounting Type
Wall mounting / Panel mounting

Operating Temperature
-10C to +50C

Shape
Rectangular

Connector Type
Screw terminal connectors

Feature
User-friendly keypad, compact design, built-in brake chopper

Power Factor
> 0.98

Product Type
AC Drive / Frequency Inverter

Application
Motor speed control, industrial automation

Protection Level
Standard drive protection

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Depends on application/load

Output Type
Three-phase PWM

Color
White/Grey

Dimension (L*W*H)
186 x 70 x 160 mm approx.

Weight
Approx. 1.1 kg

Input Voltage
380-480V AC 3-phase

Phase
Three Phase

Size
ACS355-03E-08A8-4 frame size R1

Connection Type
Screw Terminal

Material
Plastic & Metal

Relay Outputs
2 programmable relays

Analog Outputs
1 (0-10V/4-20mA)

Braking Unit
Integrated

Cooling
Fan cooled

Output Current
8.8A

Display
Digital LCD keypad

Power Rating
4 kW (5HP)

Digital Inputs
5 programmable

Communication Options
Modbus, optional fieldbus modules

Analog Inputs
2 (0-10V/4-20mA configurable)

Control Method
Scalar (V/Hz), vector control

Programming
Parameter menu, macros

Standards Compliance
CE, UL, cUL

ABB ACS355-03E-08A8-4 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications

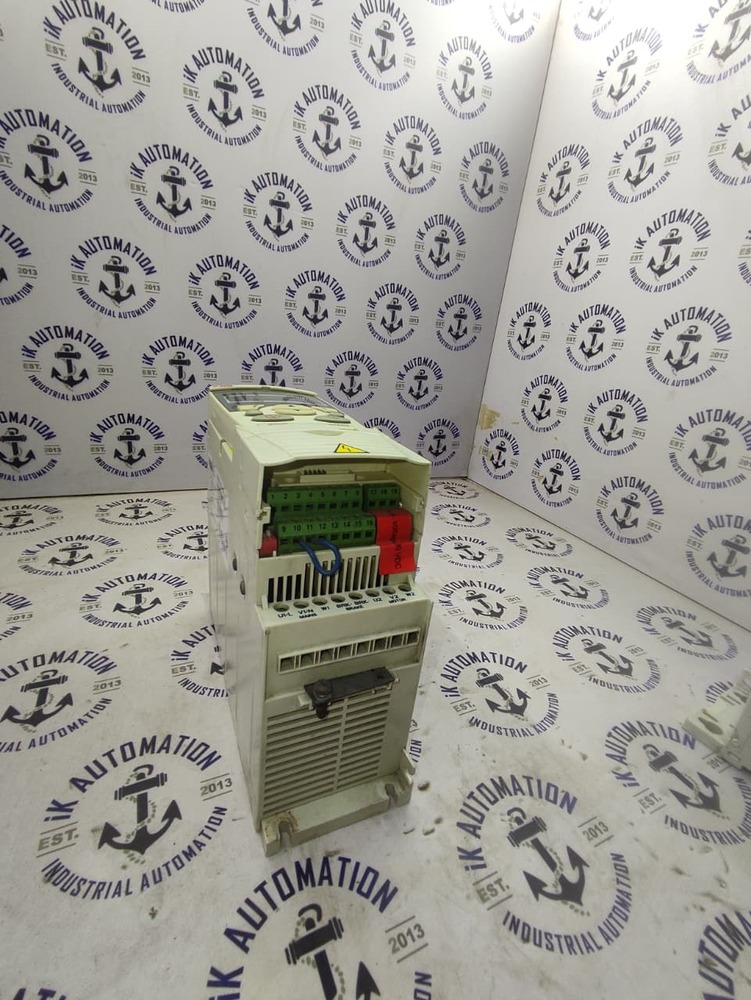

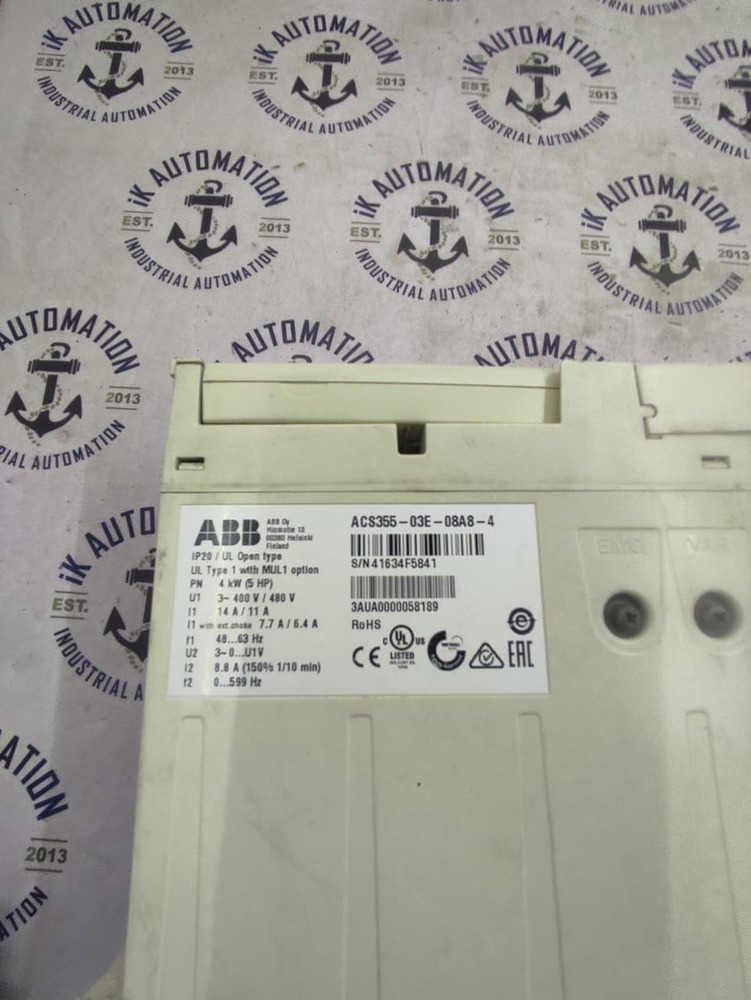

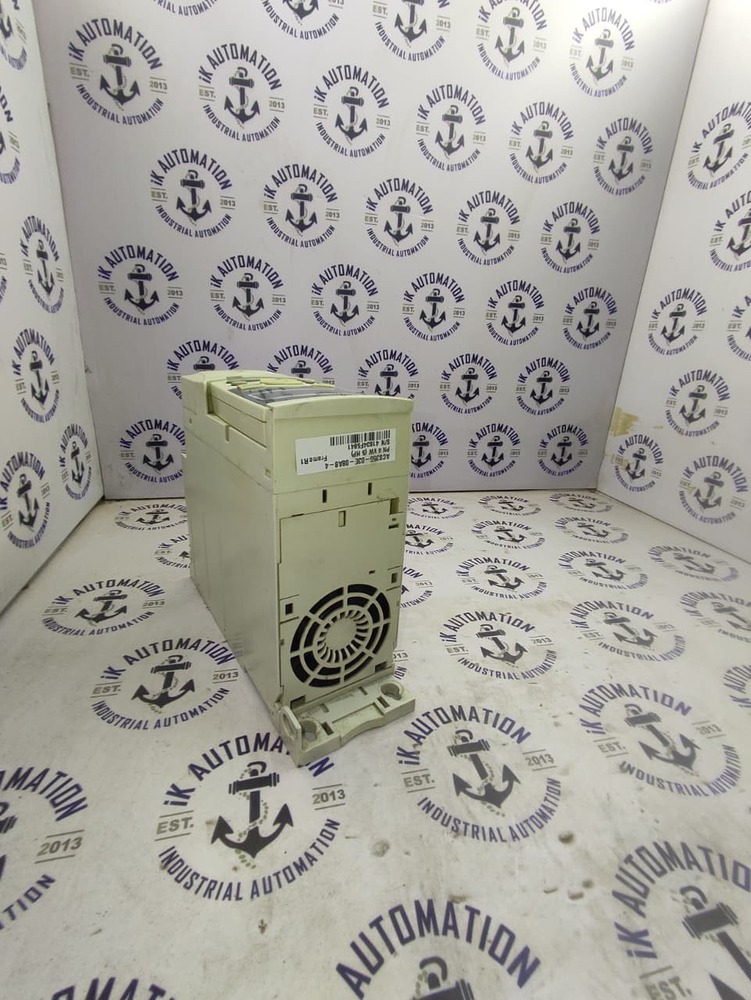

USED ABB ACS355-03E-08A8-4

ABB ACS355-03E-08A8-4 About

USED ABB ACS355-03E-08A8-4

ABB ACS355-03E-08A8-4

Key Specifications

Power Output: 4.0 kW (5.5 HP)

Output Current: 8.8 A

Input Voltage: 380â€“480 V AC (3-phase)

Frequency Range: 48â€“63 Hz input, 0â€“600 Hz output

Enclosure Rating: IP20 (standard cabinet mount)

Control Type: Vector and scalar control (V/Hz)

Streamlined Motor Control Solution

The ABB ACS355-03E-08A8-4 offers advanced yet user-friendly motor speed control for industrial settings. With built-in braking, flexible parameter menus, and multiple programming macros, the drive simplifies installation and customisation. The compact design allows for easy wall or panel mounting, ensuring efficient power management in limited spaces. Its robust construction maintains operational integrity in challenging environments.

Flexible Connectivity and Enhanced Communication

This drive supports Modbus communication out of the box, with optional modules available for extended fieldbus compatibility. With multiple analog and digital inputs and outputs, including programmable relay outputs, it can be adapted to a variety of control systems and application requirements. The digital LCD keypad streamlines configuration and operation for faster setup.

Energy Efficient and Reliable Operation

Operating at up to 97% efficiency, the ACS355-03E-08A8-4 ensures energy savings in both light and heavy-duty applications. It features thermal protection against overheating and is built to withstand a wide range of environmental conditions, operating reliably between -10C and +50C and in up to 95% relative humidity (non-condensing).

FAQ's of ABB ACS355-03E-08A8-4:

Q: How do I program and set up the ABB ACS355-03E-08A8-4 drive?

A: Programming the ACS355-03E-08A8-4 is straightforward using the digital LCD keypad and parameter menu. Select from various macros or manual settings to tailor the drive to your application-simply follow the on-screen prompts. The user manual provides step-by-step guidance for initial setup and parameter configuration.

Q: What are the main benefits of using this drive in industrial automation?

A: The drive provides precise motor speed control, integrated safety features like built-in braking, flexible I/O for system customization, and robust protection. Its high efficiency (up to 97%) and compact footprint help reduce energy consumption and save valuable installation space, making it a practical choice for manufacturers and automation integrators.

Q: Where can I install the ACS355-03E-08A8-4, and what mounting options are available?

A: The ACS355-03E-08A8-4 is designed for both wall and panel mounting, allowing flexibility in industrial automation panels or machinery frames. Its IP20 rating makes it suitable for indoor environments with appropriate standard drive protection.

Q: In which types of applications is this drive most commonly used?

A: The drive is ideal for motor speed control in conveyors, mixers, pumps, fans, and various process automation systems across manufacturing, food processing, and logistics industries-anywhere reliable and efficient variable speed operation is required.

Q: What process does the built-in thermal protection follow if the drive overheats?

A: If the drive senses excessive temperature due to prolonged heavy load or ambient heat, the built-in thermal protection triggers a fault and will reduce output or shut down the drive to prevent damage. The system can resume normal operation after cooling and resetting the fault.

Q: How does the integrated braking unit enhance the drive's performance?

A: The integrated braking unit enables faster deceleration of connected motors, improving safety and efficiency during stop cycles. This feature minimizes wear on mechanical brakes, making it especially beneficial in applications requiring frequent or emergency stops.

Q: What communication options are available for integrating this drive into a control system?

A: The drive supports Modbus communication as standard for easy integration into most control networks. Additionally, optional fieldbus modules can be added to connect with other industrial protocols, offering flexibility for diverse automation setups.
