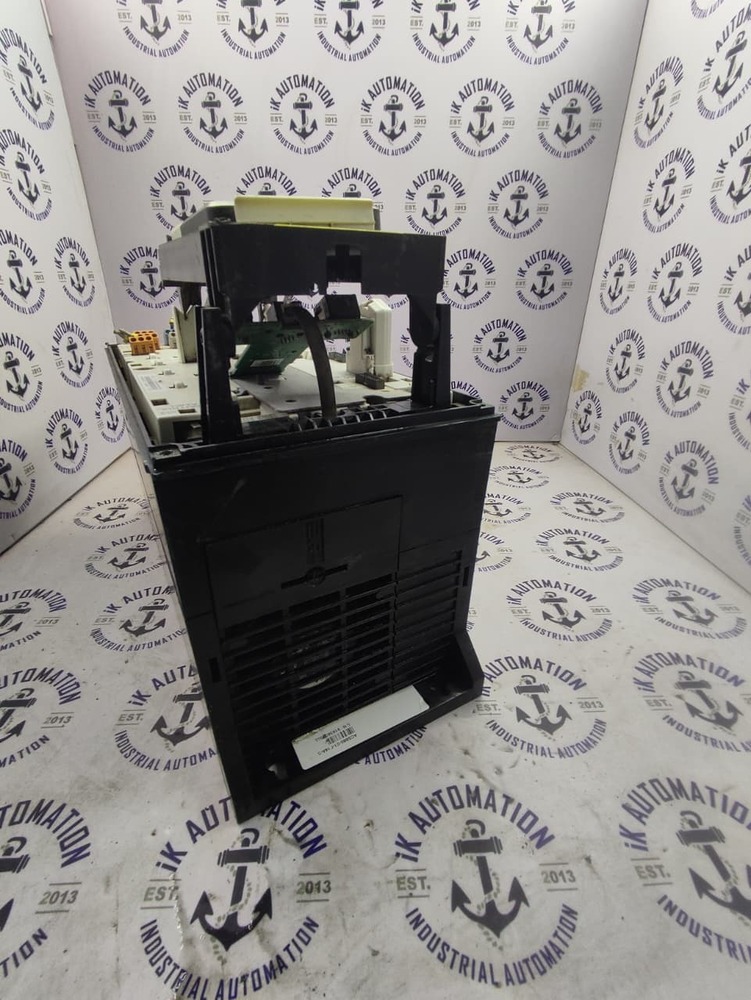

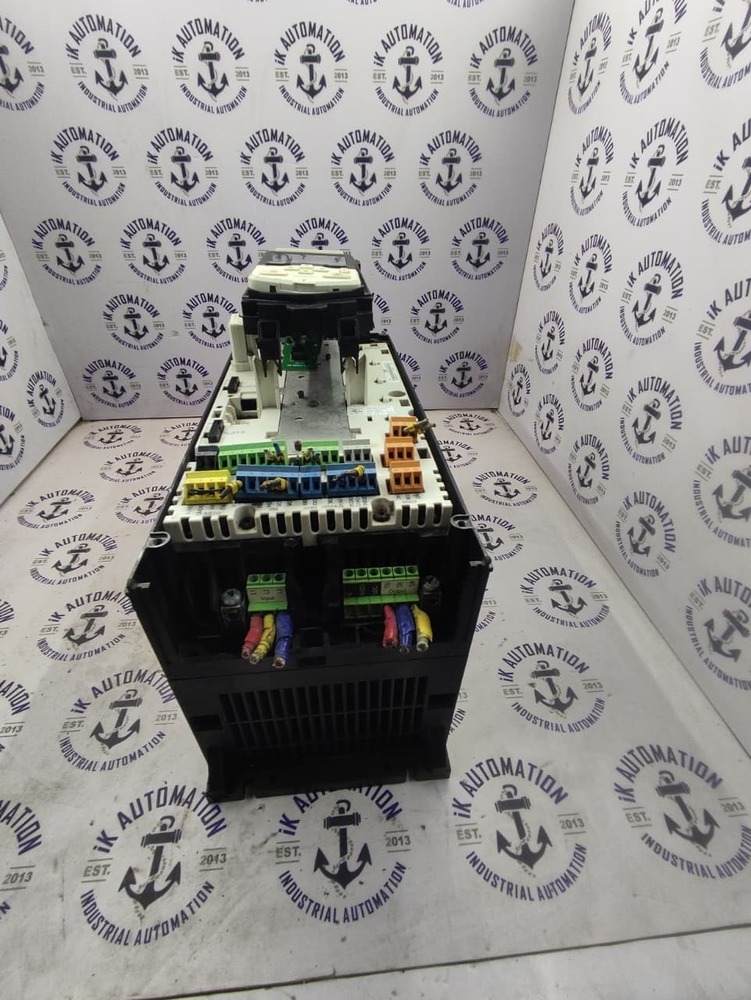

ABB ACS880-010014A-5+P944

Name: ABB ACS880-010014A-5+P944
Brand: IK AUTOMATION
Price: 1515 INR
Availability: InStock

Price 1515 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ABB ACS880-010014A-5+P944 Specification

Overheating Protection
Yes, with built-in sensors and alarms

Mounting Type
Wall Mount

Feature
Removable control panel, built-in safety functions, configurable I/O

Shape
Rectangular

Humidity %
0-95%, non-condensing

Connector Type
Spring clamp, ribbon for control, terminal for power

IP Rating
IP21 (standard) / Optional IP55 with enclosure

Surface Finish
Matte finish with smooth front panel

Insulation Material
High-grade plastic and insulated copper

Efficiency
>97% (under nominal load)

Operating Temperature
-10C to +50C

Power Factor
>0.98 with built-in choke

Product Type
AC Drive / Variable Frequency Drive (VFD)

Application
Industrial motor speed control, process automation

Protection Level
Overvoltage, Overcurrent, Short Circuit Protection

Frequency (MHz)
50/60 Hz (standard line frequency)

Rated Voltage
380-500 V AC

Energy Consumption
Depends on motor load, optimized for efficiency

Output Type
Three-phase AC output

Color
Black/White

Dimension (L*W*H)
~465 x 196 x 230 mm

Weight
Approximately 8 kg

Phase
Three Phase

Input Voltage
380-500 V AC

Size
Frame Size R3

Connection Type
Screw terminal connectors

Material
Plastic (front panel), metal (chassis)

Model
ACS880-0100-14A-5+P944

Digital Inputs/Outputs
6 DI, 3 DO (configurable)

Standards Compliance
CE, UL, cUL, EAC, RCM, and others

Serial Communication
RS485 (Modbus), optional fieldbus slots

Safety Functions
Safe Torque Off (STO)

Control Panel
Removable, with graphical display

Programming
Firmware upgradable, custom logic supported

Display Type
LCD graphical display with keypad navigation

Cooling Method
Air-cooled with integrated fan

Output Current
14A

Braking Chopper
Integrated brake chopper as standard

Analog Inputs/Outputs
2 AI (0/4-20mA, 0-10V), 2 AO

Motor Control Type
Direct Torque Control (DTC)

Relay Outputs
2 configurable relay outputs (250V/2A)

ABB ACS880-010014A-5+P944 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ABB ACS880-010014A-5+P944

ABB ACS880-010014A-5+P944 About

USED ABB ACS880-010014A-5+P944

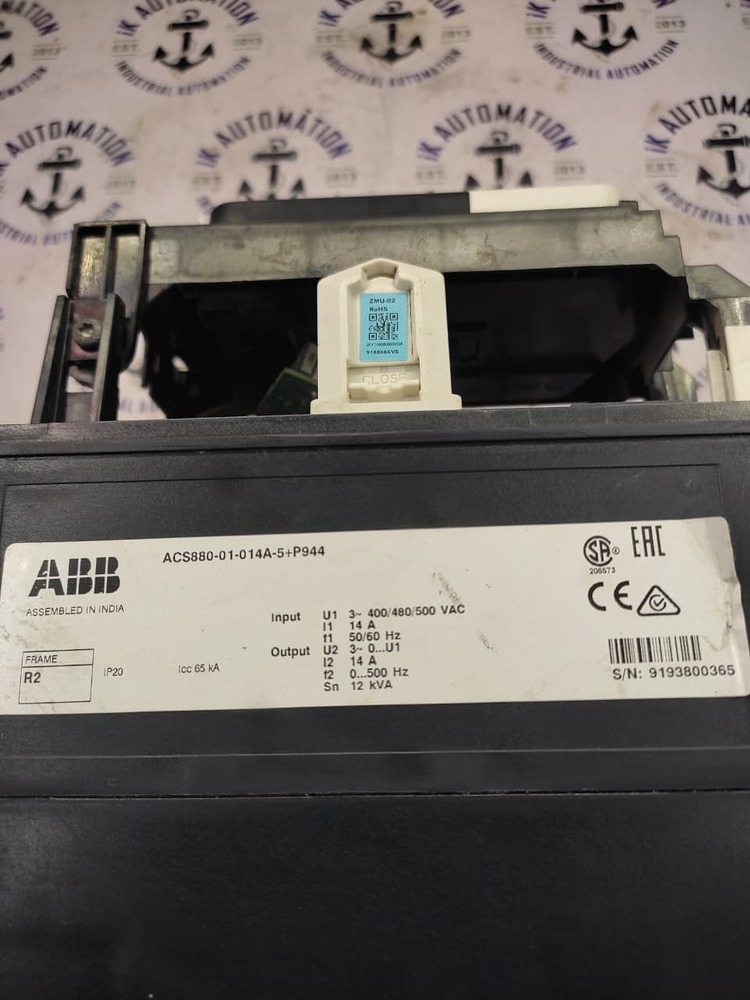

Main specifications

Manufacturer: ABB
Series: ACS880
Model: ACS880-01-014A-5
Type: AC industrial drive / VFD
Input: 3-phase, 380500 VAC
Rated current: 14 A
Typical IEC power: 7.5 kW
UL power rating: 10 HP at 480 V
Mounting: Wall-mounted / cabinet installation
Drive type: Low-voltage industrial drive
Application: Speed, torque and motion control of AC motors
Protection/control: Built-in Safe Torque Off (STO), motor control and extensive monitoring functions.

Advanced Motor Control Technology

Equipped with ABB's Direct Torque Control (DTC), the ACS880-010014A-5+P944 offers fast and accurate motor response. This results in superior speed and torque regulation, making it suitable for demanding automation environments. The integrated Safe Torque Off (STO) function and built-in brake chopper further enhance operational safety and flexibility.

User-Friendly Operation and Customization

The drive includes a removable control panel with a graphical LCD display and keypad navigation, allowing on-site configuration and diagnostics. Users benefit from customizable I/O settings, firmware upgradability, and dedicated terminals for both analog and digital signals-enabling adaptation to diverse application needs.

Robust Design and Versatile Mounting

Housed in a rectangular frame with IP21 (or optional IP55 with enclosure) protection, the drive supports wall mounting in challenging industrial settings. Its durable construction-plastic front and metal chassis-ensures longevity, and its spring clamp and screw terminal connectors simplify installation and maintenance.

FAQ's of ABB ACS880-010014A-5+P944:

Q: How is the ACS880-010014A-5+P944 typically installed in industrial settings?

A: The drive is designed for wall mounting using its rectangular frame (size R3). Installation is straightforward thanks to included spring clamp and screw terminal connectors. For added environmental resilience, the standard IP21 rating can be upgraded to IP55 by using a compatible enclosure.

Q: What control and communication options does this drive support?

A: It provides a removable LCD graphical control panel for easy configuration, supports RS485 (Modbus) serial communication, and can be expanded with optional fieldbus modules. The drive's configurable analog/digital I/O and relay outputs enable integration into various automation systems.

Q: When should the integrated brake chopper feature be used?

A: The built-in brake chopper is essential for applications requiring quick motor deceleration or controlled braking-such as conveyors or lifting systems-ensuring reliable and safe stopping under demanding load conditions.

Q: Where can this drive be used, considering environmental factors?

A: The ACS880-010014A-5+P944 operates reliably in a temperature range of -10C to +50C and humidity up to 95% (non-condensing). It is suitable for most industrial environments, including process automation and machinery control.

Q: What benefits does the Safe Torque Off (STO) function provide?

A: The STO function increases operational safety by ensuring the motor cannot produce torque when activated. This feature is crucial for maintenance, emergency situations, and compliance with international safety standards.

Q: How does the drive optimize energy efficiency?

A: The drive achieves over 97% efficiency at nominal load, aided by a built-in choke for improved power factor (>0.98). Energy consumption is dynamically managed based on actual motor load, reducing unnecessary power usage.

Q: What is the process of updating firmware or customizing logic on this drive?

A: Firmware upgrades are facilitated via the drive's control panel or through connected software tools. Users can also implement custom logic for specialized automation processes, enhancing flexibility for evolving industrial demands.
