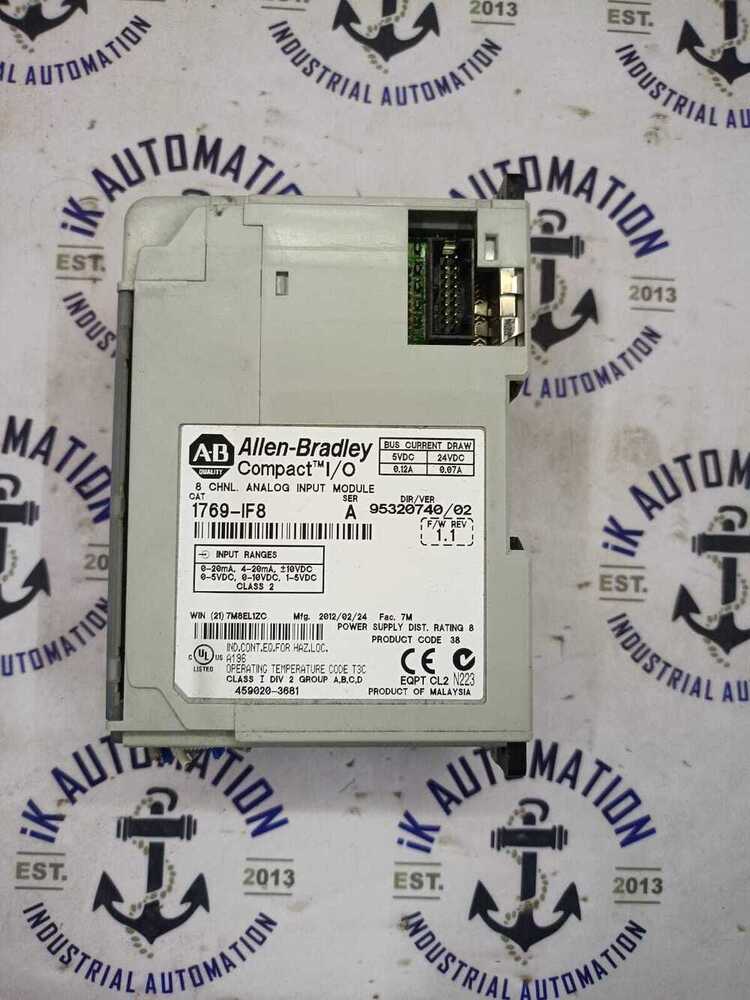

ALLEN-BRADLEY 1769-IF8

Name: ALLEN-BRADLEY 1769-IF8
Brand: IK AUTOMATION
Price: 1414 INR
Availability: InStock

Price 1414 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN-BRADLEY 1769-IF8 Specification

Mounting Type
DIN Rail Mounting

Connector Type
Screw Terminal

Humidity %
5% to 95% non-condensing

Surface Finish
Matte

Feature
8-channel, high density, analog inputs

Shape
Rectangular

Insulation Material
Plastic enclosure

Operating Temperature
0C to 60C

Product Type
Analog Input Module

Application
Industrial Automation, PLC Systems

Rated Voltage
24 VDC (nominal)

Energy Consumption
2.5 W

Color
Gray

Dimension (L*W*H)
118 x 35 x 87 mm (approx.)

Weight
300 g (approx.)

Input Voltage
24 VDC

Size
Standard Compact I/O

Connection Type
Terminal Block

Material
Plastic & Metal

Number of Inputs
8 (Analog)

Backplane Current (5V),
85 mA

Input Signal Range
-10 to +10V DC, 0-20mA

Isolation Voltage
1200 Vrms (field to logic)

Storage Temperature
-40C to 85C

Model Number
1769-IF8

Input Type
Current/Voltage Analog

Backplane Current (24V)
22 mA

Resolution
16 Bit

ALLEN-BRADLEY 1769-IF8 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ALLEN-BRADLEY 1769-IF8

About ALLEN-BRADLEY 1769-IF8

Main specifications

Part number: 1769-IF8
Type: Analog Input Module
Inputs: 8 channels, differential or single-ended
Voltage inputs: 10 VDC, 010 VDC, 05 VDC, 15 VDC
Current inputs: 020 mA, 420 mA
Resolution: Up to 16-bit unipolar / 15-bit + sign bipolar
Input impedance: Voltage 220 k typical; current 250
Backplane current: 120 mA @ 5 VDC and 70 mA @ 24 VDC
Isolation: 500 VAC / 710 VDC qualification isolation from bus
Dimensions: approximately 118 52.5 87 mm
Weight: approximately 450 g

Versatile Analog Input Solution

The 1769-IF8 module brings flexibility to industrial automation thanks to its support for both current and voltage input signals. Its eight-channel and high-density design allow users to monitor multiple analog devices within a compact footprint, making it ideal for PLC systems where space and efficiency are priorities.

Reliable Performance in Harsh Environments

Manufactured with a durable mix of plastic and metal, the ALLEN-BRADLEY 1769-IF8 can withstand challenging conditions. Operating effectively between 0C to 60C and tolerating up to 95% non-condensing humidity, it is suited for industrial applications worldwide, including in Japan.

Easy Integration and Maintenance

With its standard compact form factor, terminal block connections, and screw terminals, the 1769-IF8 is designed for quick installation and straightforward integration into existing PLC setups. The matte gray finish and rectangular shape add a professional look and enhance handling during setup.

FAQ's of ALLEN-BRADLEY 1769-IF8:

Q: How can the ALLEN-BRADLEY 1769-IF8 be integrated into an existing PLC system?

A: You can add the 1769-IF8 module directly to CompactLogix or MicroLogix PLCs using the terminal block connections and screw terminals. It mounts easily onto a DIN rail, making installation and expansion within standard automation panels efficient and straightforward.

Q: What benefits does the 16-bit resolution provide for analog input applications?

A: The 16-bit resolution ensures highly accurate analog data acquisition, which is essential for precise monitoring and control. This allows users to capture subtle variations in input signals, enhancing the overall performance of automated processes.

Q: When should current versus voltage input signals be used with the 1769-IF8 module?

A: Use current (0-20mA) inputs when signal integrity is crucial over long distances or in electrically noisy environments. Voltage inputs (-10 to +10V DC) are ideal for shorter distances and devices that output analog voltage signals. The module supports both to maximize application flexibility.

Q: Where is the ALLEN-BRADLEY 1769-IF8 most commonly applied?

A: This module is widely utilized in industrial automation environments, particularly within process control, manufacturing lines, and facilities that use PLC systems to interface with analog sensors such as temperature, pressure, or flow transducers.

Q: What process is used to connect field devices to the 1769-IF8?

A: Simply wire the analog signal cables from your field devices to the corresponding screw terminals on the 1769-IF8 module. Proper labeling and adherence to wiring standards are recommended to minimize installation errors and ensure reliable performance.

Q: How does the isolation voltage of 1200 Vrms benefit users?

A: The 1200 Vrms isolation between field signals and logic circuits protects sensitive PLC electronics from electrical surges or interference, improving system longevity and operational safety.
