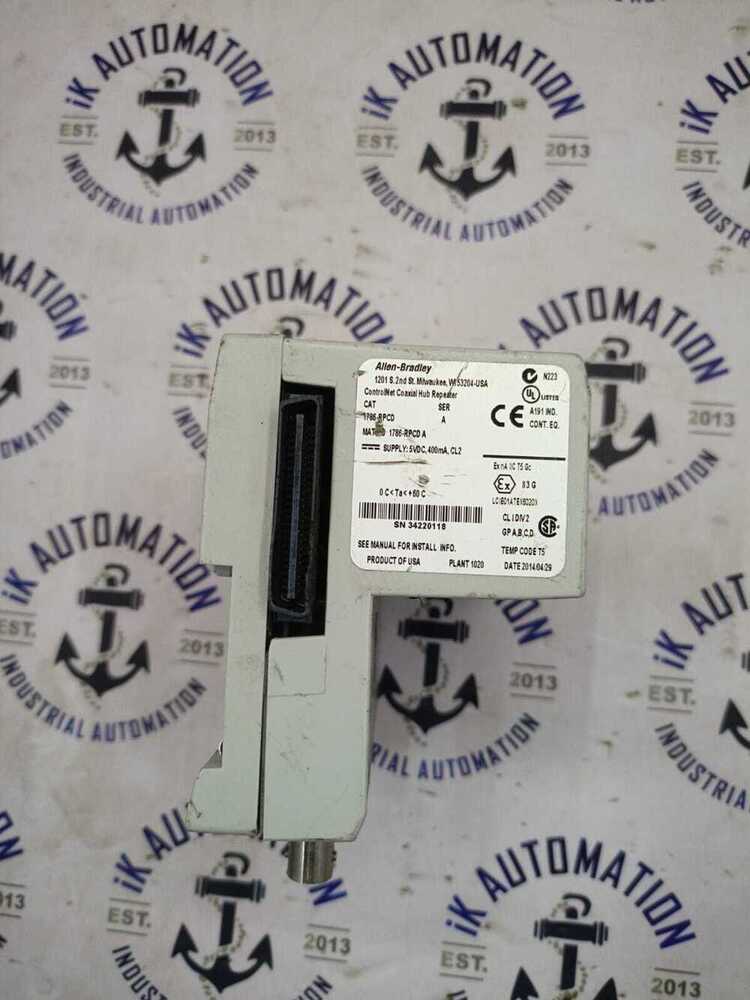

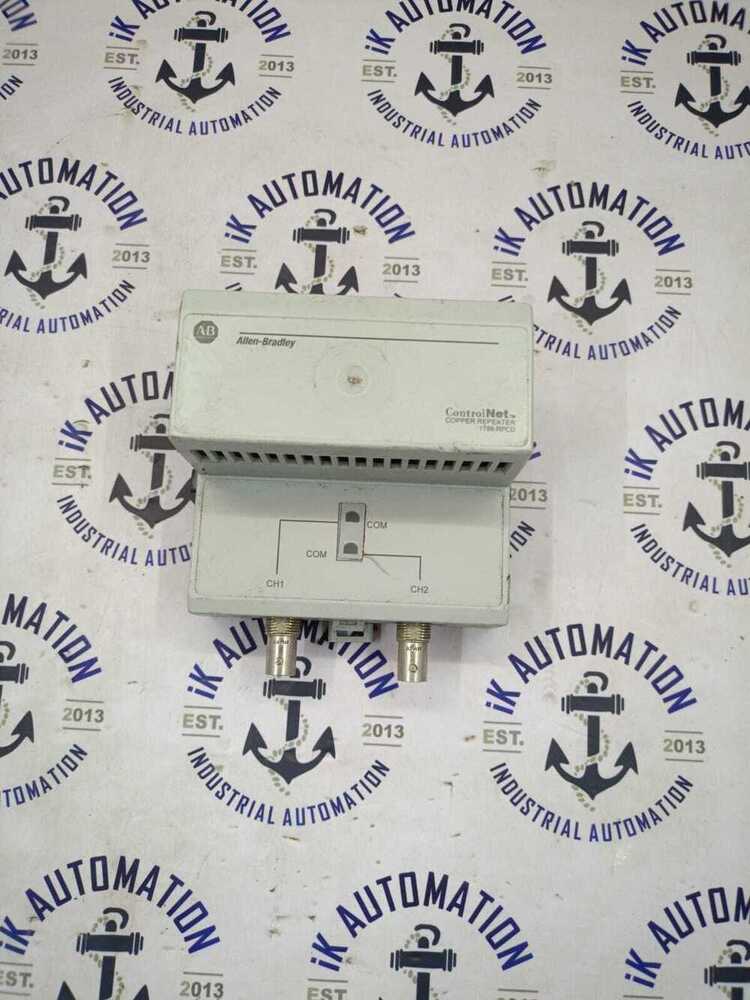

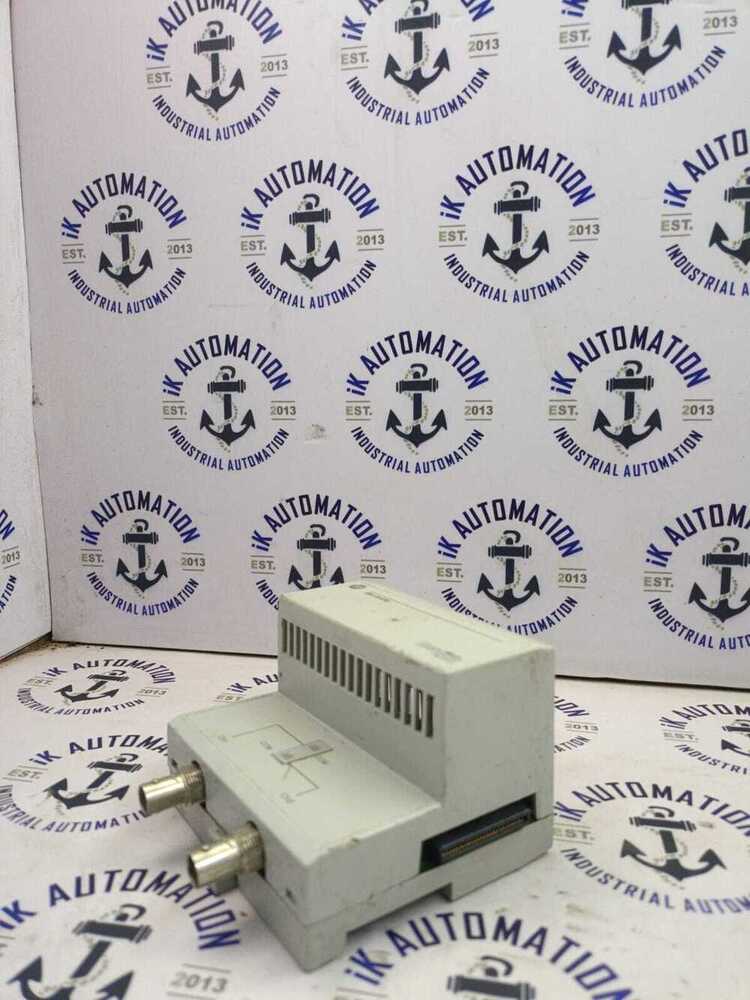

ALLEN-BRADLEY 1786-RPCD A

Name: ALLEN-BRADLEY 1786-RPCD A
Brand: IK AUTOMATION
Price: 1515 INR
Availability: InStock

Price 1515 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN-BRADLEY 1786-RPCD A Specification

IP Rating
IP20

Humidity %
5-95% non-condensing

Shape
Rectangular

Efficiency
High for industrial network signal transmission

Mounting Type
DIN Rail Mount

Surface Finish
Matte

Operating Temperature
0C to 60C

Connector Type
BNC, removable terminal block

Feature
DIN Rail Mount, LED status indicators

Insulation Material
Plastic Housing

Overheating Protection
NO

Product Type
Repeater Power Supply Module

Application
Used in ControlNet network applications

Protection Level
Standard industrial protection

Frequency (MHz)
5 MHz (approximate, as per ControlNet)

Rated Voltage
24V DC

Energy Consumption
Low

Output Type
BNC Female Connectors

Color
Gray

Dimension (L*W*H)
Approx. 110 mm x 75 mm x 50 mm

Weight
Approx. 200 g

Size
Compact

Input Voltage
24V DC

Connection Type
BNC, removable terminal block

Material
High-quality industrial plastic and metal

Series
A

Catalog Number
1786-RPCD/A

Isolation
Signal and power isolation built-in

Network Support
ControlNet

Typical Usage
Industrial Automation Systems

Compatibility
ControlNet Devices and Repeaters

Redundancy Support
Yes, for network reliability

Installation
Panel or DIN Rail Mountable

Status Indicators
LED status indicators

ALLEN-BRADLEY 1786-RPCD A Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ALLEN-BRADLEY 1786-RPCD A

ALLEN-BRADLEY 1786-RPCD A About

USED ALLEN-BRADLEY 1786-RPCD A

Manufacturer: Allen-Bradley
Part Number: 1786-RPCD
Type: ControlNet repeater
Purpose: Extends or regenerates the ControlNet network signal to help maintain reliable communication over longer cable runs.
Network: ControlNet
Typical use: Industrial automation systems using ControlNet PLCs, I/O, drives, and other ControlNet devices.
Function: Receives the ControlNet signal and retransmits it, allowing additional network segments and greater physical network distance.
Application: Useful where the standard ControlNet cable distance is insufficient or where network topology requires signal regeneration.

Reliable Industrial Network Expansion

The 1786-RPCD A acts as a vital link within ControlNet networks, extending communication distances, improving network configuration, and delivering high transmission efficiency. With built-in signal and power isolation, it safeguards the network from noise and potential disruptions, while redundancy support ensures continuous operation and minimal downtime. This device supports straightforward deployment in both new and existing systems, increasing scalability without compromising reliability.

Flexible Mounting and Easy Integration

Engineered for hassle-free installation, this repeater offers flexible mounting options including DIN rail and panel mounting. Its compact form factor (approximately 110 mm x 75 mm x 50 mm) fits seamlessly into control cabinets, while BNC connectors and a removable terminal block simplify connections. Suited for a wide range of environments, it operates efficiently in temperatures from 0C to 60C and can handle humidity levels between 5%-95% non-condensing, ensuring dependable performance year-round.

FAQ's of ALLEN-BRADLEY 1786-RPCD A:

Q: How do I properly install the ALLEN-BRADLEY 1786-RPCD A?

A: The 1786-RPCD A can be mounted either on a DIN rail or directly on a control panel using standard mounting hardware. Ensure that the device is securely attached and that all BNC and terminal block connections are firmly in place. Follow standard ControlNet wiring practices for optimal results.

Q: What is the main benefit of using this repeater in ControlNet networks?

A: The primary advantage is improved network reliability and signal integrity. The device supports redundancy, continuous operation, and minimizes the risk of signal loss, making it especially valuable for mission-critical industrial automation applications.

Q: When should I consider adding a repeater like the 1786-RPCD A to my network?

A: You should use a repeater when you need to extend communication distances beyond cable limits, connect additional nodes, or introduce network segments requiring electrical isolation. It's also ideal if your network requires enhanced redundancy and reliability.

Q: Where can the 1786-RPCD A be installed within an automation setup?

A: It's suitable for installation in control panels and on DIN rails within industrial environments that demand high reliability. Its IP20 rating and robust construction make it fit for protected indoor locations where network infrastructure needs expansion.

Q: What status indicators are available and how do they help?

A: The repeater features LED status indicators that display the operating status, signal presence, and network activity. These visual cues aid in swift diagnostics and maintenance, ensuring timely detection of operational issues.

Q: Is the 1786-RPCD A compatible with all ControlNet devices and repeaters?

A: Yes, the device is fully compatible with other ControlNet devices and repeaters, making it a versatile solution for network expansion or restructuring projects.
