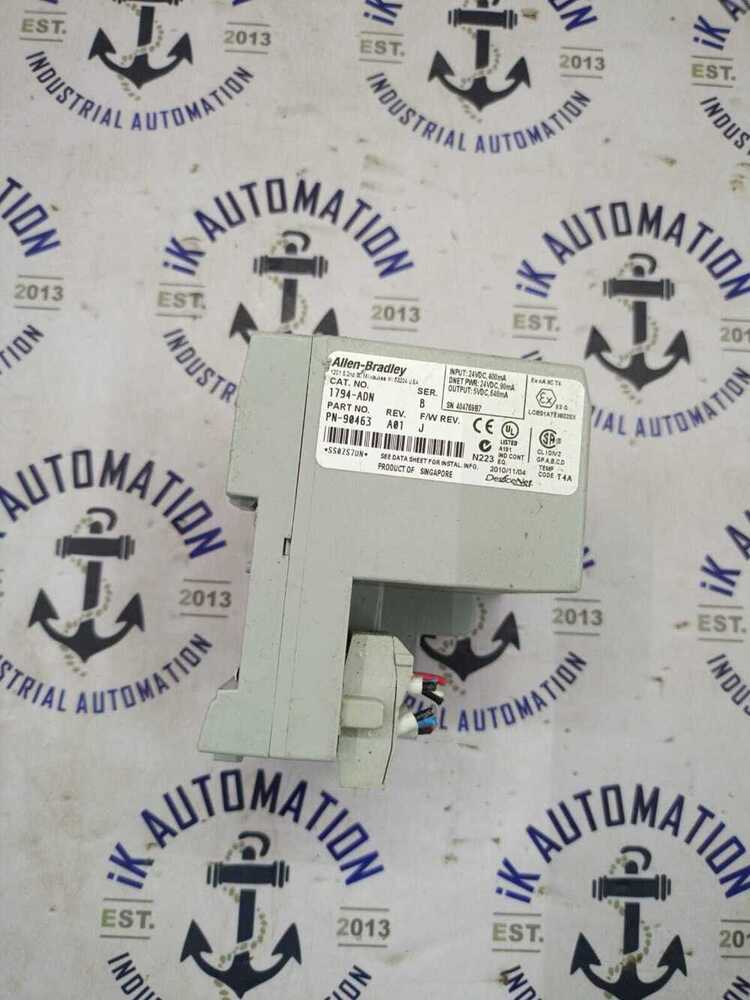

ALLEN-BRADLEY 1794-ADN

Name: ALLEN-BRADLEY 1794-ADN
Brand: IK AUTOMATION
Price: 1212 INR
Availability: InStock

Price 1212 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN-BRADLEY 1794-ADN Specification

Humidity %
5% to 95% non-condensing

Feature
DIN Rail Mountable, DeviceNet Compatible

Shape
Rectangular

Overheating Protection
NO

Operating Temperature
0 to 55C (32 to 131F)

Mounting Type
DIN Rail

Surface Finish
Matte

Insulation Material
Polycarbonate

IP Rating
IP20

Connector Type
Pluggable Terminal Blocks

Product Type
Adapter Module

Application
Flex I/O Control Systems, Industrial Automation

Rated Voltage
24V DC

Energy Consumption
2W

Color
Grey

Dimension (L*W*H)
87 x 94 x 69 mm (3.43 x 3.70 x 2.72 in)

Weight
170 g (0.37 lbs)

Size
Standard

Input Voltage
24V DC

Connection Type
Terminal Block

Material
Plastic, Electronic Components

Enclosure Type
Open style

Module Type
DeviceNet Adapter

Series
Flex I/O

LED Indicators
Module status, Network status, Power status

Communication Protocol
DeviceNet

Current Consumption
420 mA at 24V DC

ALLEN-BRADLEY 1794-ADN Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ALLEN-BRADLEY 1794-ADN

About ALLEN-BRADLEY 1794-ADN

USED ALLEN-BRADLEY 1794-ADN

Brand: Allen-Bradley / Rockwell Automation
Part Number: 1794-ADN
Product family: FLEX I/O
Device type: DeviceNet Adapter
Network: DeviceNet
Function: Connects FLEX I/O modules to a DeviceNet network
Application: Distributed and remote industrial I/O
Typical system: PLC/DeviceNet scanner DeviceNet network 1794-ADN FLEX I/O modules

Versatile Control for Flex I/O Systems

Optimized for both small and large-scale industrial automation, the 1794-ADN DeviceNet Adapter facilitates secure and reliable communication within Flex I/O systems. Its compact design and terminal block connections make for straightforward integration, allowing users to expand or modify control systems with ease. The module is tailored for use in dynamic and demanding environments such as manufacturing plants and process automation setups.

Reliable Performance in Challenging Conditions

With an operating temperature range of 0 to 55C and a humidity tolerance up to 95% non-condensing, the 1794-ADN excels in various industrial conditions. The enclosure, crafted from durable polycarbonate with a matte finish, ensures consistent protection of electronic components, while the IP20 rating offers essential ingress protection for most control cabinet installations.

FAQ's of ALLEN-BRADLEY 1794-ADN:

Q: How does the 1794-ADN Adapter facilitate communication in Flex I/O control systems?

A: The 1794-ADN Adapter acts as an interface between Flex I/O devices and the DeviceNet network. By converting DeviceNet protocol data to the Flex I/O backplane, it enables seamless integration and efficient data exchange throughout automated control systems.

Q: What steps are involved in installing the ALLEN-BRADLEY 1794-ADN on a DIN rail?

A: To install the 1794-ADN, simply snap the adapter onto the DIN rail in your control panel. Connect the wiring to the pluggable terminal blocks, ensuring proper input voltage (24V DC), then verify module, network, and power status using the built-in LED indicators.

Q: Where can the ALLEN-BRADLEY 1794-ADN be used effectively?

A: This adapter is ideal for installation in industrial automation environments, including manufacturing plants, process control systems, and other Flex I/O control setups across the United States. Its open-style, compact form is well-suited to control cabinets and panel assemblies.

Q: What are the primary benefits of using the 1794-ADN DeviceNet Adapter?

A: Key advantages include reliable DeviceNet communication, straightforward integration with existing Flex I/O systems, support for DIN rail mounting, and clear LED status indicators that simplify troubleshooting and system monitoring.

Q: How do the LED indicators on the 1794-ADN assist in maintenance and troubleshooting?

A: The module features distinct LED indicators for module, network, and power status, enabling operators to quickly assess the operational state and diagnose issues, which helps minimize system downtime.

Q: Is any special protection required for the 1794-ADN in industrial environments?

A: No extra protection is necessary if the module is installed inside a standard control cabinet. The IP20 rating provides adequate protection against ingress in most applications, though it does not offer extensive dust or water resistance.
