Send InquiryAUTONICS MD2U-MD20
Price 1344.0 INR/ Piece
MOQ : 1 Piece
AUTONICS MD2U-MD20 Specification
- Connector Type
- Screw Type Terminal
- Operating Temperature
- 0C to 55C
- Power Factor
- High power factor design
- IP Rating
- IP20
- Surface Finish
- Matte
- Overheating Protection
- YES, YES
- Shape
- Rectangular
- Humidity %
- 35% to 85% RH (non-condensing)
- Insulation Material
- ABS engineering plastic
- Mounting Type
- Panel Mount
- Feature
- Microstep Driver, Panel Mountable
- Efficiency
- >85%
- Product Type
- Step Motor Driver
- Application
- Industrial Automation, CNC Machines, Robotics
- Protection Level
- Overcurrent/Overvoltage, Overcurrent, Overheating
- Frequency (MHz)
- 50/60 Hz
- Rated Voltage
- 24-42 VDC
- Energy Consumption
- Low power consumption
- Output Type
- Pulse/Direction
- Color
- Black
- Dimension (L*W*H)
- 75 mm x 50 mm x 35 mm
- Weight
- 420 g
- Size
- Compact
- Input Voltage
- 24-42 VDC
- Phase
- Single Phase
- Material
- Plastic (Body), Electronic Components
- Connection Type
- Screw Terminal
- No Of Poles
- 2
- Motor Type
- 2-Phase Stepper motor
- Input Signal
- Step, Direction (Pulse, CW/CCW)
- Microstep Setting
- 1, 2, 4, or 16 divisions selectable
- Isolation
- Photocoupler Isolation for Inputs
- Maximum Output Current
- 2.0 A/Phase
- Model

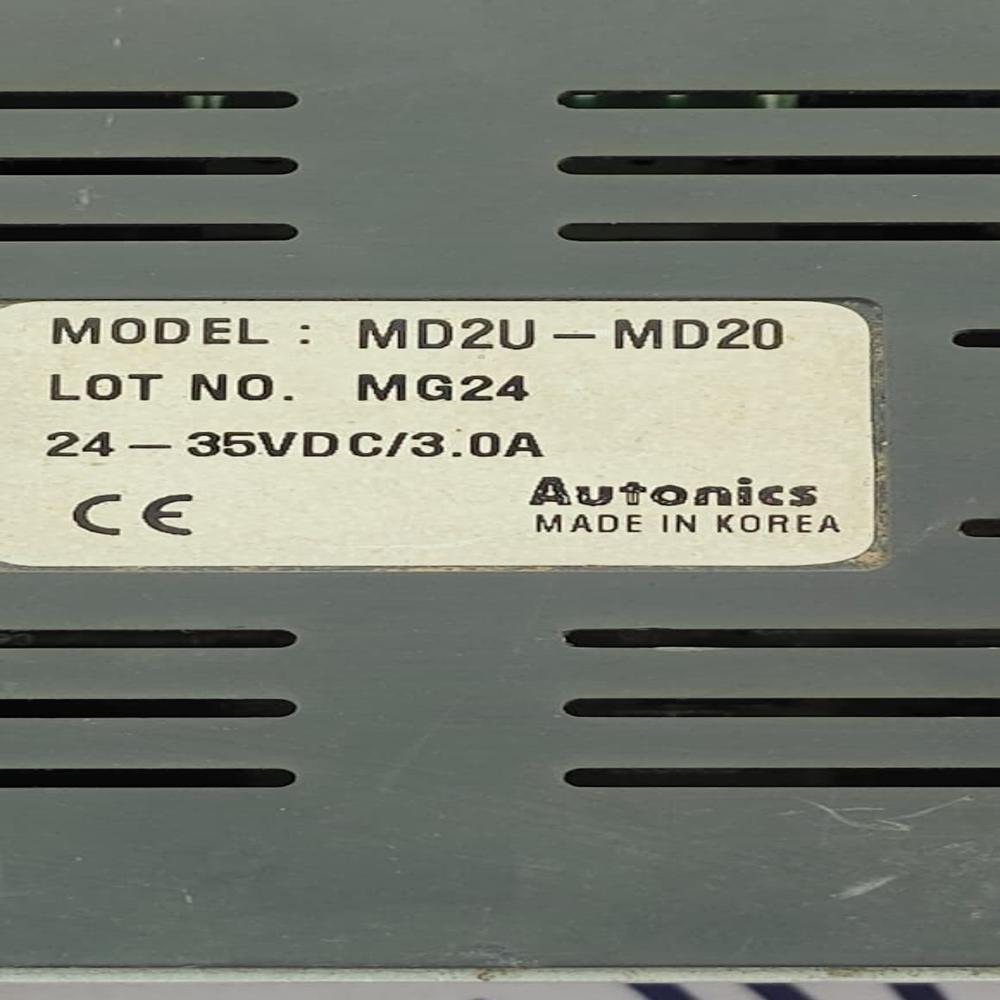

- MD2U-MD20
- LED Indicators
- Power, Alarm
- Control Method
- Pulse & Direction Control
- Storage Temperature
- -25C to 70C
