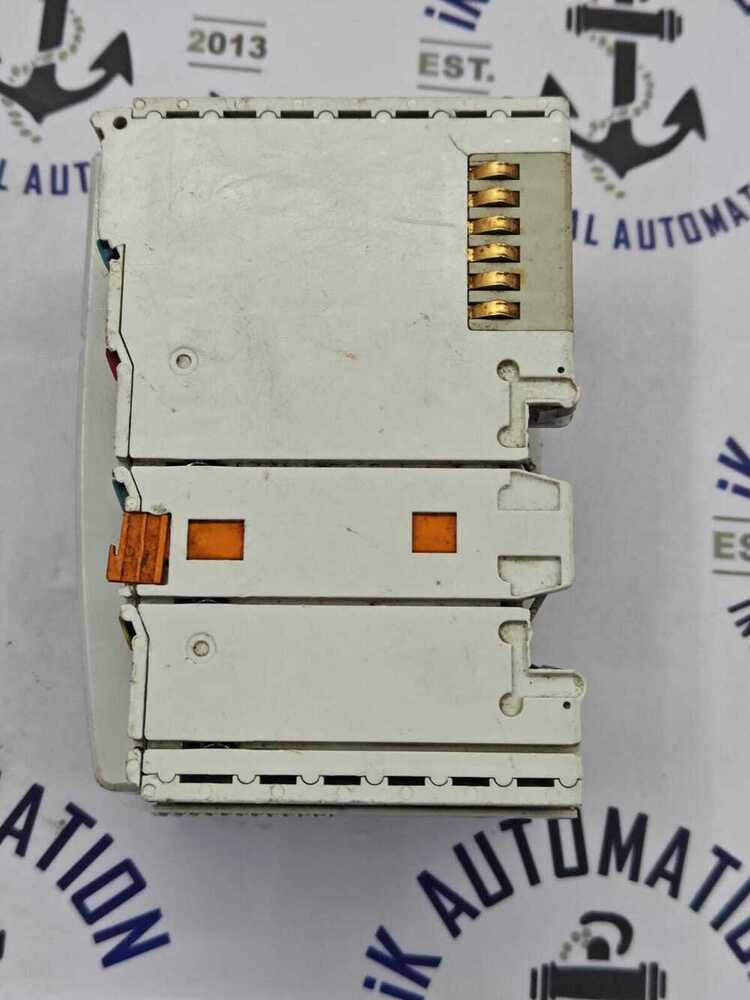

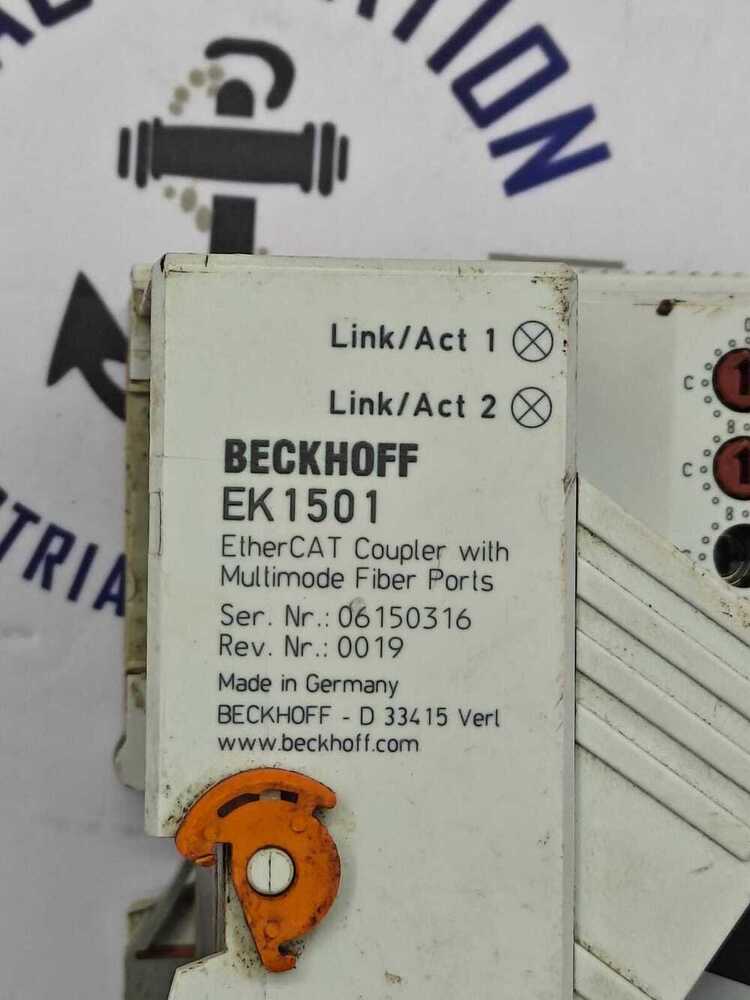

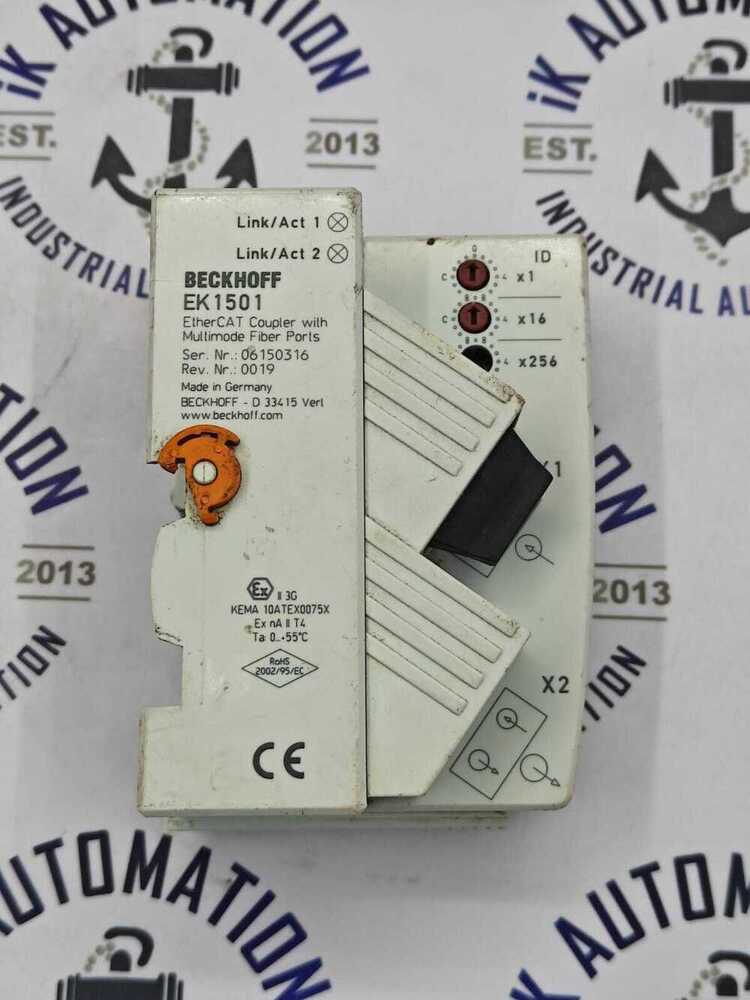

BECKHOFF EK1501

Name: BECKHOFF EK1501
Brand: IK AUTOMATION
Price: 1324 INR
Availability: InStock

Price 1324 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BECKHOFF EK1501 Specification

Humidity %
95% (non-condensing)

Mounting Type
DIN Rail

Operating Temperature
0C to +55C

Connector Type
2 x RJ45, EtherCAT IN & OUT

Feature
EtherCAT to EtherCAT Coupler, Segment Coupler with electrical isolation

Insulation Material
Plastic

IP Rating
IP20

Surface Finish
Matte

Shape
Rectangular

Overheating Protection
NO

Product Type
EtherCAT Coupler

Application
Automation, Machine Controller, Fieldbus Interface

Protection Level
IP20

Frequency (MHz)
DC to 10 MHz (signal)

Rated Voltage
24 V DC (-15%/+20%)

Energy Consumption
Typically 110 mA at 24 V DC

Output Type
EtherCAT signal output

Color
Light Grey

Dimension (L*W*H)
approx. 44 x 100 x 68 mm

Weight
approx. 70 g

Input Voltage
24 V DC

Size
Compact

Phase
Single Phase

Connection Type
Terminal Block

Material
Plastic, Electronic Components

No Of Poles
2

Shock Resistance
acc. EN 60068-2-27

Series
EK1xxx Series

Relative Humidity
max. 95% (no condensation)

Isolation Voltage
500 V (field side/power contact)

Interface
2 x RJ45 (EtherCAT IN, EtherCAT OUT)

Vibration Resistance
acc. EN 60068-2-6

Status Indicator
LEDs for Power, Run, Error, Link, and Activity

Fieldbus
EtherCAT

Bus Coupler Type
EK1501 EtherCAT Coupler

Operating Altitude
Up to 2000 m

Storage Temperature Range
-25C to +85C

Permissible Ambient Air Pressure
86 kPa to 106 kPa (650-800 mm Hg)

BECKHOFF EK1501 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED BECKHOFF EK1501

About BECKHOFF EK1501

Take advantage of the superior BECKHOFF EK1501 EtherCAT Coupler, recognized as a top-rated industrial automation solution. This impeccable device ensures rarefied performance with its latest technological features, including dual RJ45 EtherCAT interfaces for seamless connectivity. Designed for versatility, it supports up to 2000 meters in operating altitude and guarantees robust operation under extreme temperatures and humidity. The EK1501's compact, light grey, IP20-rated enclosure contains advanced electronic components, providing electrical isolation and reliable EtherCAT output. Ideal for machine controllers and automation applications, it exemplifies excellence in fieldbus interfacing.

Versatile Performance in Various Applications

The BECKHOFF EK1501 EtherCAT Coupler excels across a wide spectrum of industrial surfaces and plant environments. Its matte plastic material ensures durability, while the rectangular, compact design enables effortless DIN rail mounting within automation panels. The advanced insulation and rated frequency from DC to 10 MHz make it perfect for robust machine control, and its rarefied safety features-such as electrical isolation-enable application even in sensitive environments where safety and reliability are imperative.

Export Markets, Payment, and Sample Policy Clarity

With a strong valuation across global markets, the BECKHOFF EK1501 is exported to multiple regions, reflecting a competitive list price and high demand among automation professionals. Our payment terms are designed to facilitate smooth order completion, accommodating a range of client needs. Potential buyers can request sample units following an established sample policy, making it easier to evaluate product suitability prior to full-scale deployment, ensuring cost-effective procurement and maximum satisfaction.

FAQ's of BECKHOFF EK1501:

Q: How can I benefit from using the BECKHOFF EK1501 in automation systems?

A: The BECKHOFF EK1501 offers rapid, reliable EtherCAT fieldbus coupling, electrical isolation, and high environmental tolerance, delivering efficient data communication and heightened equipment safety in industrial automation.

Q: What are the main usage scenarios for the EK1501 coupler?

A: This coupler is ideal for machine controllers, automation panels, and any setup requiring EtherCAT-to-EtherCAT coupling, particularly where electrical isolation and compact design are critical.

Q: When is the best stage in a project to integrate the EK1501?

A: Integrating the EK1501 during the initial setup of fieldbus networks or during upgrades ensures future scalability and straightforward extension of EtherCAT communication lines.

Q: Where should the EK1501 be mounted for optimal performance?

A: The EK1501 is best mounted on a DIN rail within an automation cabinet, ensuring protection from dust, vibration, and accidental contact, while facilitating wiring and maintenance.

Q: What is the process for ordering and receiving a sample unit?

A: Interested clients can request a sample by contacting authorized dealers or distributors. Orders are processed following verification, and delivery occurs in line with our established sample policy.
