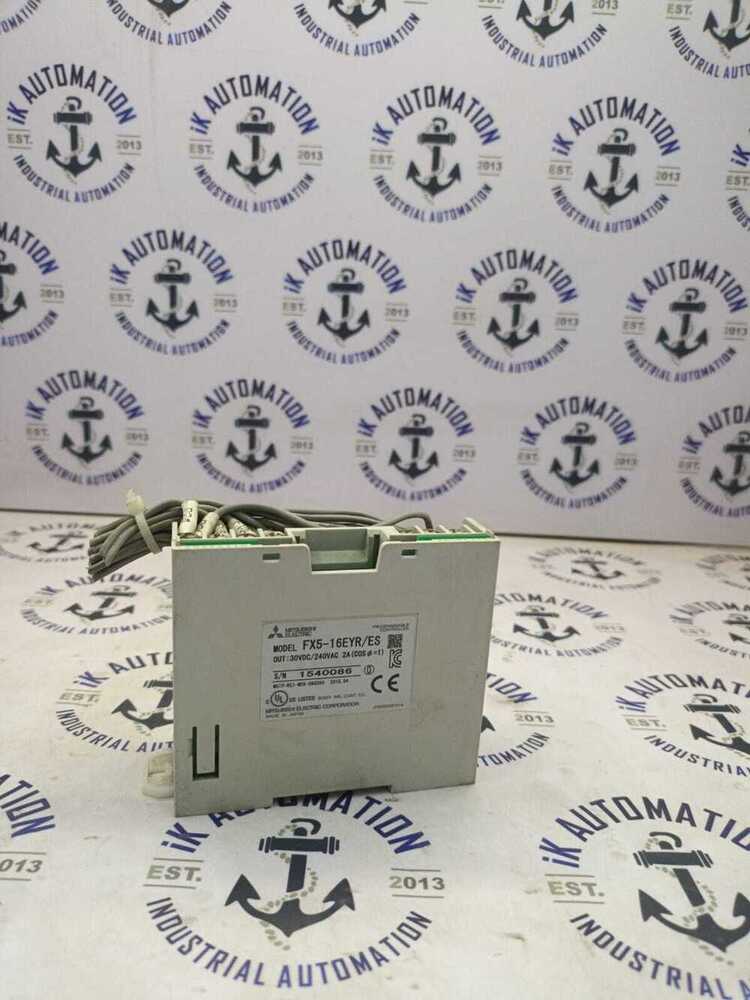

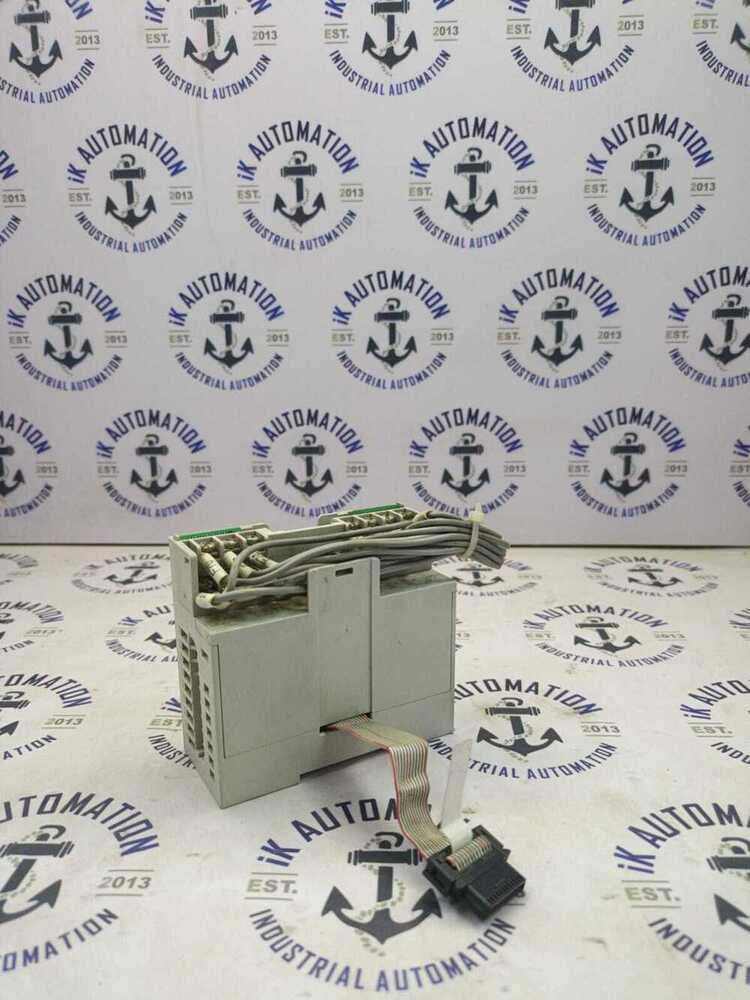

MITSUBISHI FX5-16EYR ES

Name: MITSUBISHI FX5-16EYR ES
Brand: IK AUTOMATION
Price: 1212.0 INR
Availability: InStock

Price 1212 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MITSUBISHI FX5-16EYR ES Specification

Insulation Material
Plastic

Efficiency
High

Connector Type
Terminal Block

Overheating Protection
YES

Shape
Rectangular

Feature
Expandable I/O, High reliability, Easy integration

Surface Finish
Matte

IP Rating
IP10

Humidity %
5% to 95% RH (non-condensing)

Operating Temperature
0C to 55C

Mounting Type
DIN Rail Mounting

Product Type
PLC Module - Output Unit

Application
Industrial automation, control systems

Protection Level
Standard industrial grade

Frequency (MHz)
50/60 Hz

Rated Voltage
24V DC / 100-240V AC

Energy Consumption
Low

Output Type
Relay Output

Color
Grey

Dimension (L*W*H)
90mm x 40mm x 85mm (Approx.)

Weight
Approx. 170g

Phase
Single Phase

Input Voltage
100-240V AC (power supply)

Size
Compact

Connection Type
Screw terminals

Material
Plastic, Metal Components

Storage Temperature
-25C to 75C

Series
MELSEC iQ-F FX5

Compatibility
Works with FX5 series CPUs and expansion modules

Response Time
10 ms max.

Number of Output Points
16 (Relay type)

Model Number
FX5-16EYR-ES

Isolation
Photo-coupler isolation

Control Method
Programmable Logic

Lifecycle
Long service life

Switching Capacity
2A at 30V DC / 2A at 250V AC (per point)

MITSUBISHI FX5-16EYR ES Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia

Main Domestic Market
All India

Certifications
USED MITSUBISHI FX5-16EYR ES

MITSUBISHI FX5-16EYR ES About

Module Type: Digital output expansion (Relay, NO contacts)

Number of Outputs: 16 points

Output Voltage: 30 V DC or less / 240 V AC or less

Max Load Current: 2 A per point

Response Time: Approx. 10 ms (ON to OFF / OFF to ON)

Power Supply: Powered via CPU module (5 V DC / 24 V DC)

Expandable Capabilities for Industrial Automation

The FX5-16EYR-ES provides easy I/O expansion, enabling users to scale their automation systems as requirements change. Its compatibility with MELSEC iQ-F FX5 CPUs and additional modules allows for seamless integration, simplifying the process for both new and existing setups. The module's compact rectangular design is optimized for DIN rail mounting, making it suitable for limited space installations without compromising on functionality.

Durable and Efficient Design

Engineered to withstand harsh industrial environments, this relay output module operates efficiently in temperatures ranging from 0C to 55C and humidity up to 95% RH. The robust plastic and metal construction offers long service life, while the built-in photo-coupler isolation and overheating protection enhance safety and reliability. Its low energy consumption further contributes to cost-effectiveness over extended operation.

Easy Installation and Maintenance

Featuring screw terminal connections and a terminal block interface, the FX5-16EYR-ES simplifies wiring and maintenance tasks. Its user-friendly interface and modular structure allow both initial installation and future system modifications to be performed swiftly. Clear labeling and compact dimensions (90mm x 40mm x 85mm) help ensure a straightforward and tidy setup, reducing installation time and potential errors.

FAQ's of MITSUBISHI FX5-16EYR ES:

Q: How do I install the MITSUBISHI FX5-16EYR-ES relay output module in my control panel?

A: This module is designed for DIN rail mounting, making installation quick and straightforward. Simply attach the unit onto the standard DIN rail in your control cabinet, connect the input lines to the terminal block using a screwdriver, and ensure secure connections with the screw terminals.

Q: What are the main benefits of using the FX5-16EYR-ES in industrial automation applications?

A: The FX5-16EYR-ES offers reliable relay output control, high durability, easy integration with FX5 CPUs, and expandable I/O capability. It features low energy consumption and robust insulation through photo-coupler isolation, ensuring long service life and minimal maintenance in demanding environments.

Q: When should I select this relay output module over a transistor output model?

A: Choose the relay output module when you require control of devices using both AC and DC circuits or need to switch higher voltage or current loads (up to 2A per channel at 30V DC / 250V AC). Relay outputs also provide greater electrical isolation compared to transistor outputs.

Q: Where can FX5-16EYR-ES modules be used most effectively?

A: These modules excel in industrial automation applications such as manufacturing, processing, and other environments that require reliable control of output devices like actuators, indicator lamps, solenoids, or relays, particularly in medium-scale control panels operating within 0C to 55C.

Q: What is the typical process for expanding I/O using the FX5-16EYR-ES?

A: You can expand the number of output points by connecting the FX5-16EYR-ES module to compatible FX5 series CPUs or additional expansion modules. Simply mount the unit on the DIN rail and connect it to the system using standard expansion connectors, following the manufacturer's integration guidelines.

Q: How does photo-coupler isolation improve the reliability of this module?

A: Photo-coupler isolation electrically separates the control logic from the output circuits, protecting the system from voltage spikes, reducing risk of interference, and enhancing overall reliability and longevity of both the module and connected devices.
