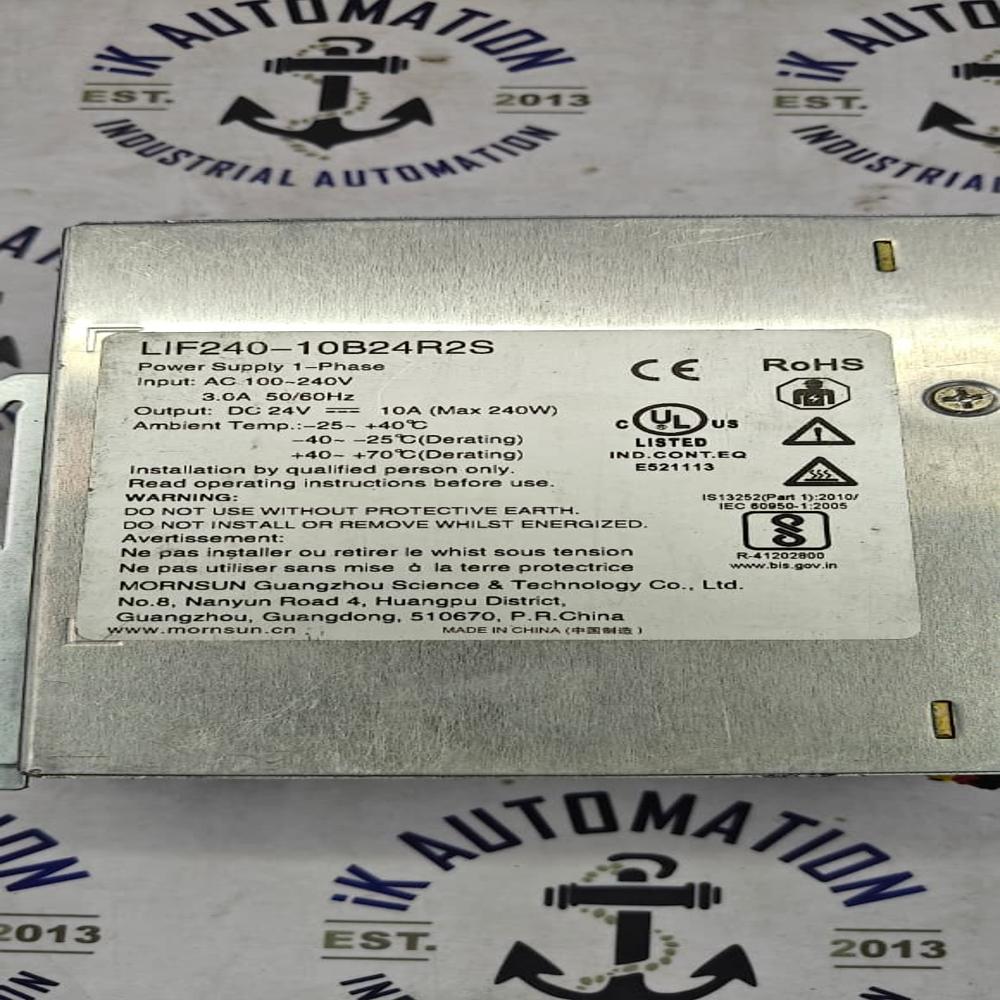

MORNSUN LIF240-10B24R2S

Name: MORNSUN LIF240-10B24R2S
Brand: IK AUTOMATION
Price: 1233.0 INR
Availability: InStock

Price 1233.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MORNSUN LIF240-10B24R2S Specification

Surface Finish
Powder Coated

Mounting Type
DIN Rail

IP Rating
IP20

Efficiency
94%

Humidity %
20%-90% RH (non-condensing)

Overheating Protection
YES

Insulation Material
Plastic/Metal

Connector Type
Screw Connectors

Operating Temperature
-30C to +70C

Feature
High Efficiency, Wide Input Range, Cooling by Free Air Convection

Power Factor
>0.95

Shape
Rectangular

Product Type
Enclosed Power Supply

Application
Industrial Automation, Control Systems, Machinery

Protection Level
Overload, Over Voltage, Short Circuit

Frequency (MHz)
47-63 Hz

Rated Voltage
24V DC Output

Energy Consumption
240W Max Output

Output Type
DC

Color
Silver

Dimension (L*W*H)
199 x 98 x 38 mm

Weight
1.2 kg

Phase
Single Phase

Size
Standard

Input Voltage
85-264V AC

Material
Metal Enclosure

No Of Poles
Single

Connection Type
Screw Terminal

Remote ON/OFF Control
No

Cooling Method
Natural Convection

Storage Temperature
-40C to +85C

Adjustable Output Voltage Range
22V to 28V DC

MTBF
>300,000 hours

Vibration Resistance
10-500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Start-up Time
<1s at 230VAC full load

Isolation Voltage
Input to Output: 3000VAC, Input to PE: 2000VAC, Output to PE: 500VAC

Hold-up Time
>20ms at 230VAC full load

Ripple & Noise
<150mVp-p

Safety Standards
ULIEC62368, EN61010

About MORNSUN LIF240-10B24R2S

Take advantage of the marvelous MORNSUN LIF240-10B24R2S, a hot-selling, unrivaled power supply revered across the market. This venerable device delivers high efficiency at 94% and a rated output of 24V DC, ensuring consistent performance for demanding industrial automation and control systems. Its robust metal enclosure, IP20 rating, and advanced protection features, like overload and overvoltage safeguards, deliver reliability in hostile environments. Deal seekers appreciate its quick start-up, wide voltage input, and natural convection cooling, making it the ultimate choice for professionals seeking superior quality.

Versatile Commercial Applications and Ultimate Flexibility

MORNSUN LIF240-10B24R2S thrives in commercial and industrial environments. It powers automation processes, advanced machinery, and sophisticated control systems with seamless dependability. Its rectangular, compact shape allows versatile surface mounting, especially on DIN rails. Specifically designed for general industrial usage, this robust model ensures your projects benefit from continuous, protected power delivery-making it highly suitable for factories, manufacturing lines, and complex equipment requiring unwavering performance.

Export-Ready: Global Shipping, Certifications, and Quotations

For the export market, MORNSUN LIF240-10B24R2S is supplied from India via reliable FOB port handover. Request a quotation for bulk purchases, and take advantage of available product samples for evaluation. Certified to global standards, including UL, EN, and IEC62368, it assures compliance and safety. Whether you are an exporter, retailer, or wholesaler, the necessary documentation accompanies every shipment, supporting smooth international trade for all supply chain partners.

FAQ's of MORNSUN LIF240-10B24R2S:

Q: How does the MORNSUN LIF240-10B24R2S ensure reliable operation in industrial environments?

A: The MORNSUN LIF240-10B24R2S features a robust metal enclosure, IP20 rating, advanced overload, over voltage, short circuit protections, and high vibration resistance, providing reliable operation even in challenging industrial conditions.

Q: What are the main application surfaces and commercial uses for this power supply?

A: This power supply is ideal for industrial automation, control systems, and machinery, and is commonly surface-mounted on DIN rails for efficient integration into equipment panels and control cabinets.

Q: When should I choose MORNSUN LIF240-10B24R2S over other models?

A: Opt for the LIF240-10B24R2S when you need high efficiency (94%), wide input voltage (85-264V AC), reliable safety certifications, and superior protection in applications demanding uninterrupted DC power output.

Q: Where is the MORNSUN LIF240-10B24R2S exported from, and is sample evaluation possible?

A: The device is exported from India with handover at an FOB port. Samples are available for interested buyers, assisting in thorough product evaluation before large-scale procurement.

Q: What certifications back the MORNSUN LIF240-10B24R2S for safety and compliance?

A: This model is certified according to ULIEC62368 and EN61010 safety standards, ensuring it meets strict industrial and electronic compliance requirements for various international markets.
