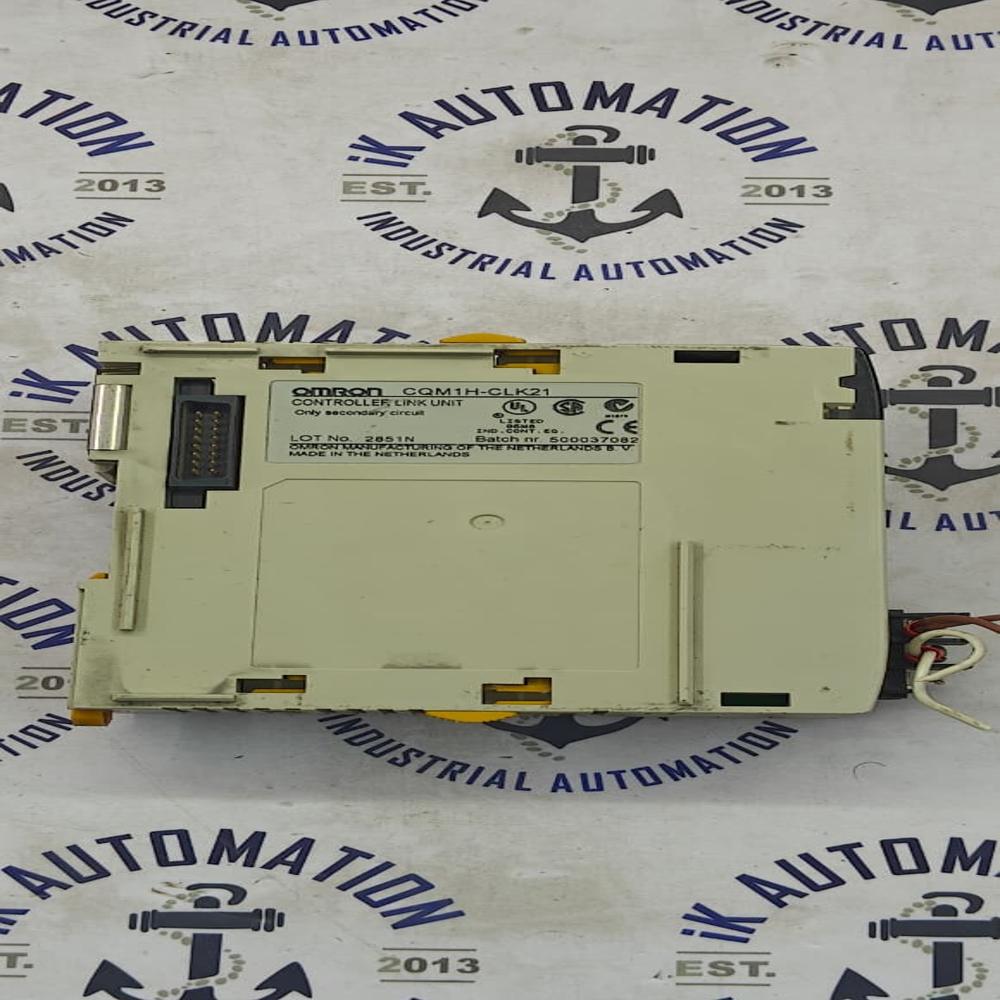

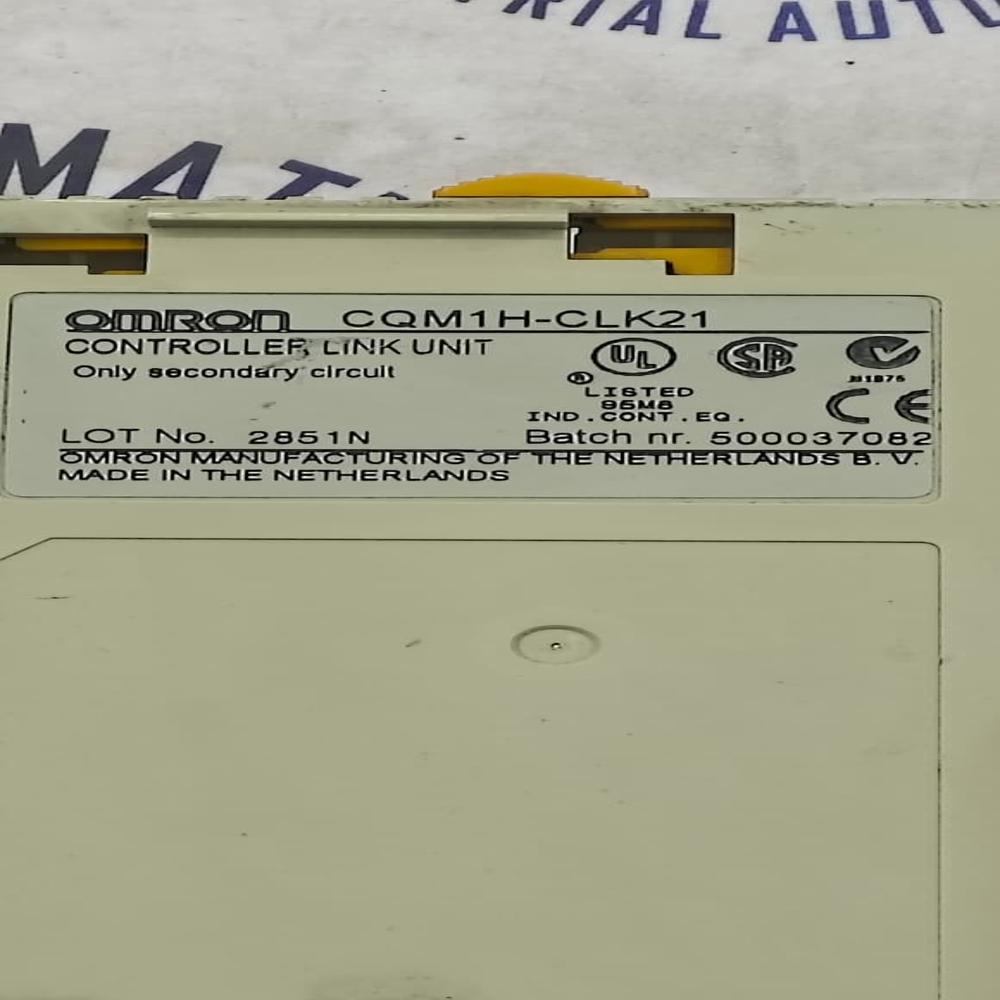

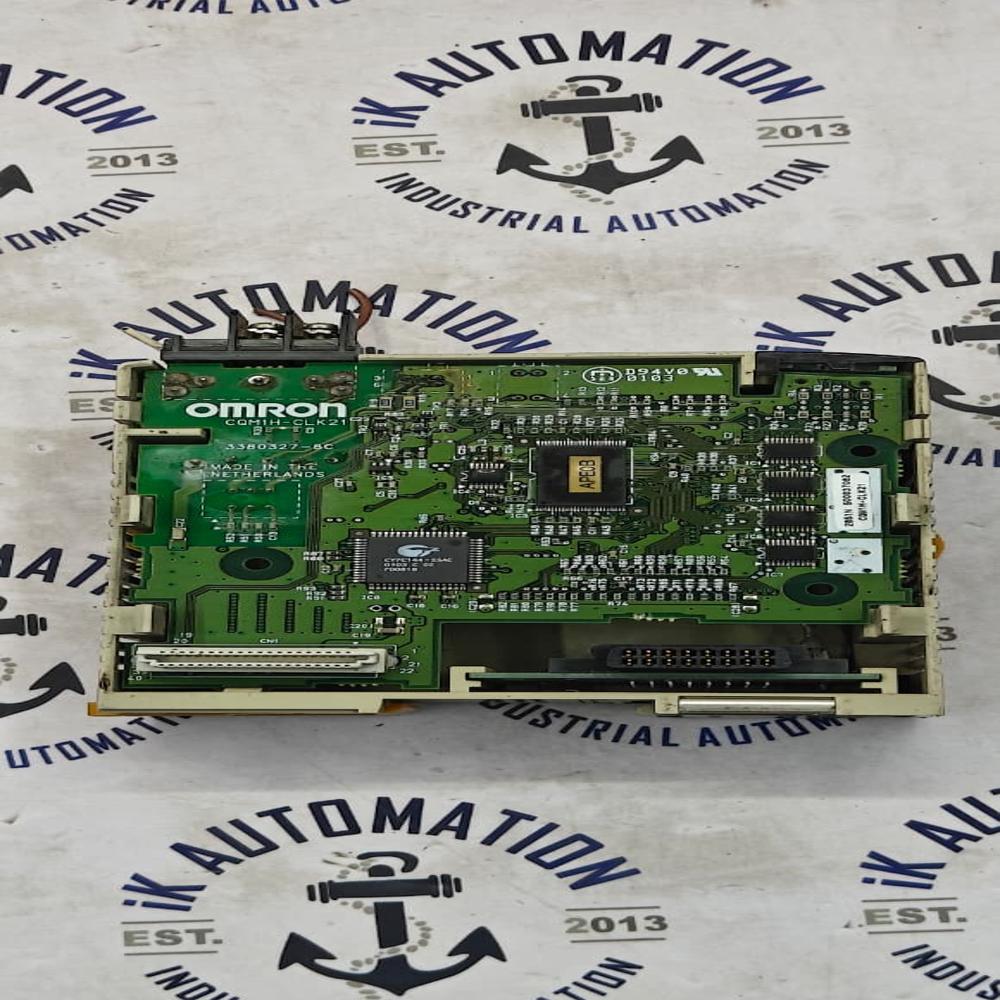

OMRON CQM1H-CLK21

Name: OMRON CQM1H-CLK21
Brand: IK AUTOMATION
Price: 1344.0 INR
Availability: InStock

Price 1344.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON CQM1H-CLK21 Specification

Shape
Rectangular

Operating Temperature
0C to 55C

Mounting Type
DIN Rail Mounting

Insulation Material
Plastic

Overheating Protection
NO

Humidity %
10% to 90% (non-condensing)

Feature
Enables PLC Network Communication

Surface Finish
Matte

Connector Type
Terminal block, coaxial BNC

IP Rating
IP20

Product Type
Controller Link Unit

Application
For Programmable Logic Controller (PLC) Communication

Rated Voltage
5 V DC

Energy Consumption
1.3 W

Color
Grey

Dimension (L*W*H)
90 mm x 35 mm x 80 mm (approx.)

Weight
110 g

Input Voltage
5 V DC (Supplied internally from PLC)

Size
Compact

Material
Plastic

Connection Type
Screw Terminal

Model Number
CQM1H-CLK21

Communication Method
Controller Link

Transmission Speed
625 kbps

Maximum Transmission Distance
500 m (with recommended cable)

Maximum Number of Nodes
32

Transmission Path
Token Bus Method, Coaxial cabling

Maximum Number of Units per PLC
2 Units

Compliance Standards
CE, cULus

OMRON CQM1H-CLK21 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About OMRON CQM1H-CLK21

Experience the pivotal OMRON CQM1H-CLK21 Controller Link Unit-now a best-seller, featured at a reduced rate for a limited time. Unlock unprecedented communication capabilities within your PLC network with this valuable module, supporting up to 32 nodes via Token Bus Method and delivering a reliable 625 kbps speed. Its compact, rectangular design ensures easy DIN Rail mounting, while robust compliance standards (CE, cULus) guarantee operational excellence. Last chance to purchase this high-performance, industry-standard communication solution, perfect for demanding automation environments.

Competitive Advantages and Versatile Uses

The OMRON CQM1H-CLK21 stands out for its compact design, reliable connectivity, and easy DIN Rail mounting. It enables seamless PLC network communication for automation systems, supporting up to 32 nodes with a maximum transmission distance of 500 meters. This module is invaluable for manufacturers, system integrators, and industrial engineers requiring robust controller link functionality. Its superior build and adherence to global standards make it the preferred type for demanding operational environments and mission-critical usage.

Packaging, Market Reach, and Sample Policy

Each unit of the OMRON CQM1H-CLK21 is securely packaged for safe goods transport. Serving both domestic and international markets, this product is available through a wide network of dealers, exporters, and retailers. Prospective buyers can inquire about sample policies and applicable charges before proceeding. With competitive asking prices, the product is readily supplied to manufacturers, service providers, and wholesalers, ensuring prompt delivery and maximum customer satisfaction throughout the supply chain.

FAQ's of OMRON CQM1H-CLK21:

Q: How does the OMRON CQM1H-CLK21 enhance PLC network communication?

A: The OMRON CQM1H-CLK21 uses a Token Bus Method over coaxial cabling to establish reliable Controller Link communication among up to 32 PLC nodes, significantly improving data transmission efficiency and control capabilities.

Q: What are the main benefits of using this Controller Link unit?

A: Its compact size, high transmission speed (625 kbps), and compliance with CE and cULus standards offer increased installation flexibility, robust network performance, and assured operational safety.

Q: Where can the OMRON CQM1H-CLK21 be applied?

A: This unit is ideal for industrial automation setups, particularly where programmable logic controllers (PLCs) are networked for factory automation, monitoring, and process control.

Q: What process is involved in mounting the CQM1H-CLK21?

A: Mounting the OMRON CQM1H-CLK21 is straightforward with DIN Rail mounting, allowing quick and secure integration into PLC cabinets or automation panels.

Q: When should I consider replacing or upgrading my communication module?

A: Consider upgrading when you require greater node capacity, higher transmission speeds, or compliance with updated industry standards for enhanced automation network performance.

Q: What is the maximum transmission distance and node count supported?

A: The CQM1H-CLK21 supports communication across distances up to 500 meters (with the recommended cable) and connects up to 32 network nodes per transmission path.
