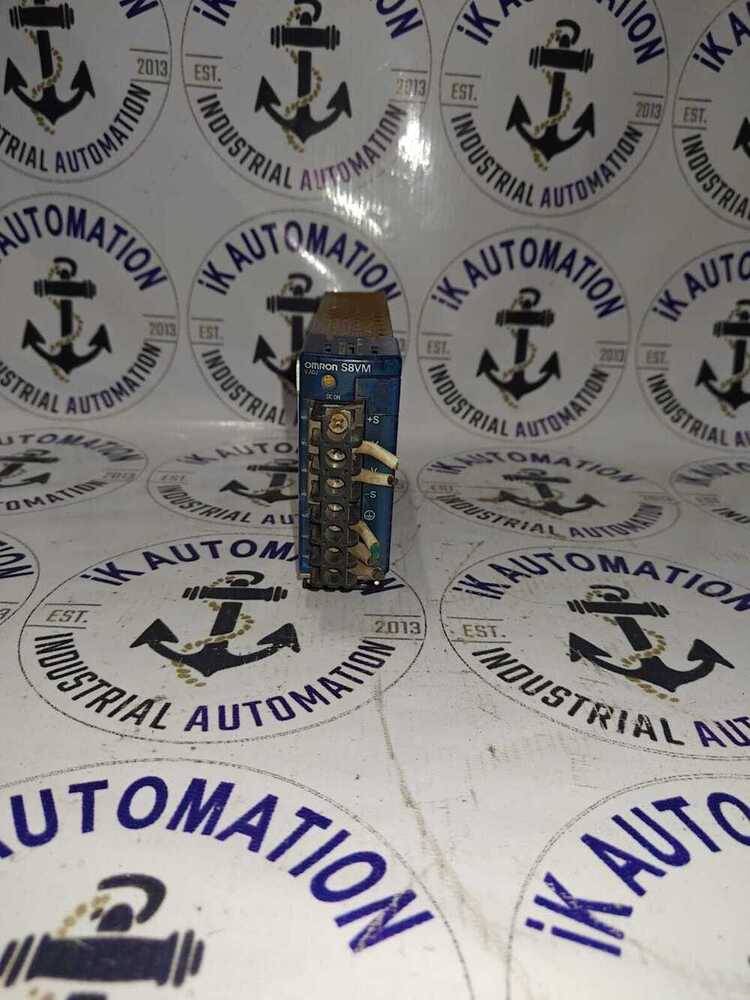

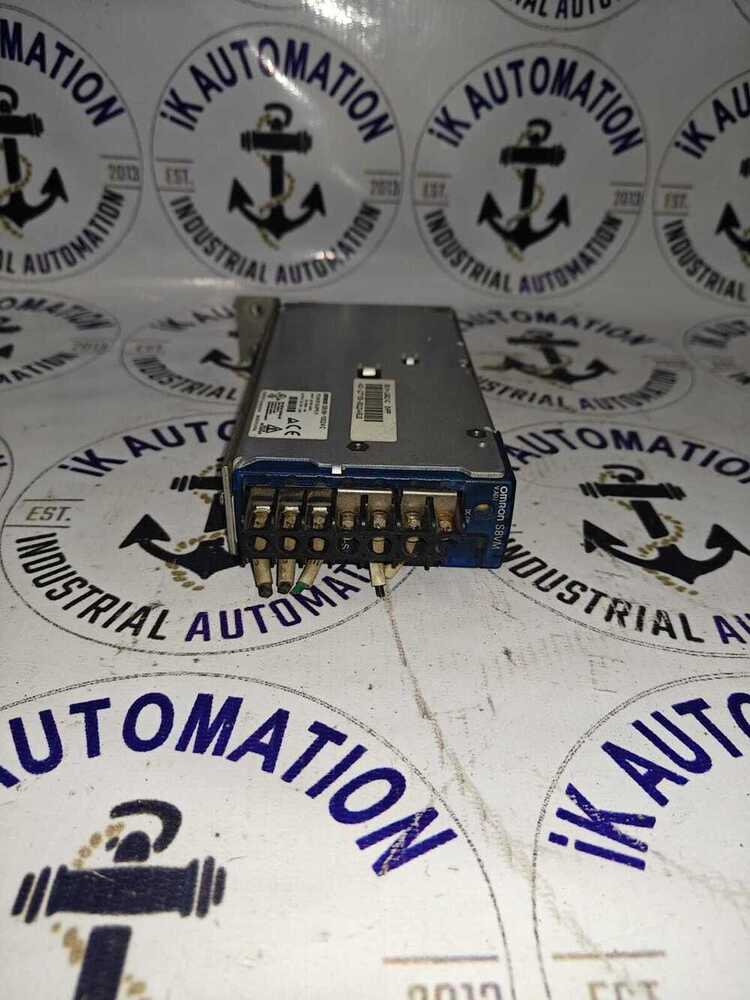

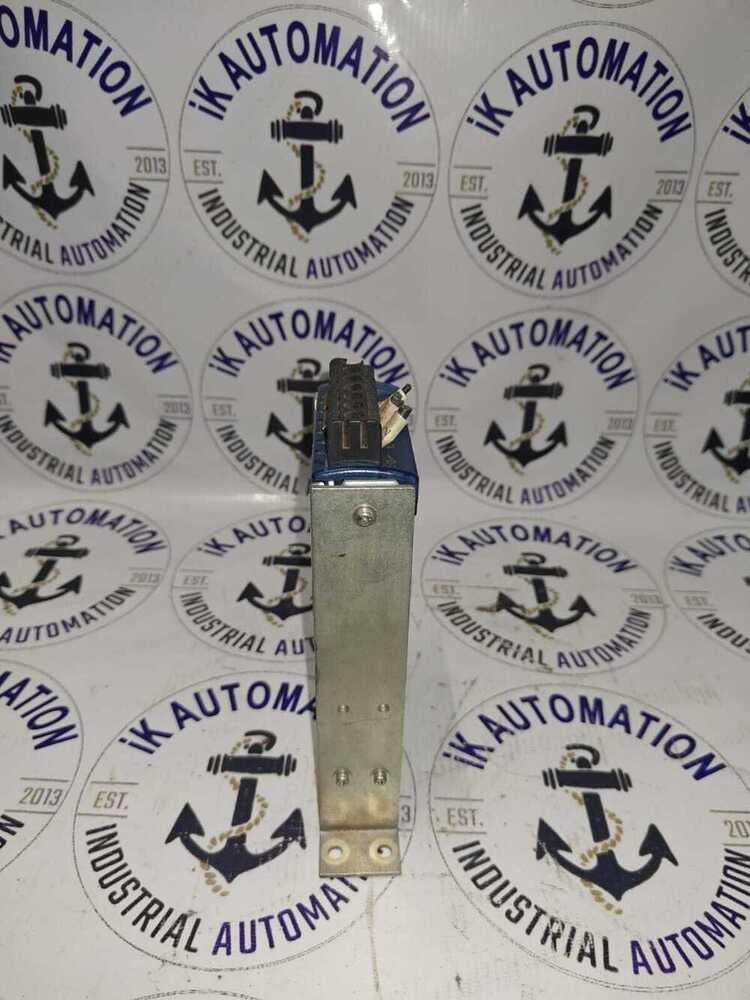

OMRON S8VM-10024 C

Name: OMRON S8VM-10024 C
Brand: IK AUTOMATION
Price: 1321.0 INR
Availability: InStock

Price 1321.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON S8VM-10024 C Specification

Connector Type
Screw Terminal

Overheating Protection
YES

Surface Finish
Powder Coated

Feature
Compact Design, High reliability, LED Indicator

Insulation Material
Plastic

Operating Temperature
-10C to +60C Celsius (oC)

Mounting Type
Panel Mount

IP Rating
IP20

Humidity %
20-90% RH (Non-condensing)

Efficiency
88%

Shape
Rectangular

Power Factor
>0.98

Product Type
Switching Power Supply

Application
Industrial Automation, Control Panels

Protection Level
Overload, Overvoltage, Short-circuit

Frequency (MHz)
50/60 Hz Hertz (HZ)

Rated Voltage
24 V DC Output Volt (V)

Output Type
DC

Color
Black/Silver

Dimension (L*W*H)
82 97 36 mm Millimeter (mm)

Weight
0.54 kg Kilograms (kg)

Input Voltage
100-240 V AC Volt (V)

Size
Compact

Phase
Single Phase

Material
Metal (Enclosure), Plastic (Terminals)

No Of Poles
1

Connection Type
Terminal Block

Output Voltage Adjustment Range
22 to 27 V

Model Number
S8VM-10024C

MTBF
100,000 hours

Output Current
4.2 A

Hold Up Time
20 ms min (at full load, 100 VAC)

Ripple Voltage
120 mVp-p max

Dielectric Strength
3,000 VAC, 50/60 Hz for 1 minute

Storage Temperature
-25C to +85C

Approval Standards
UL, cUL, CE

Vibration Resistance
10 to 55 Hz, 0.375 mm amplitude

Safety Standards
EN60950-1

Series
S8VM

Cooling Method
Natural air cooling

OMRON S8VM-10024 C Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CUSTOMR

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED OMRON S8VM-10024 C

About OMRON S8VM-10024 C

Experience the crowning achievement in power supplies with the OMRON S8VM-10024 C, now offered at a reduced price for a limited time. This praiseworthy, New model features a compact, robust design ideal for industrial automation and control panels. With a lavish 100 W output at 24 V DC and a reliable output current of 4.2 A, the S8VM-10024C ensures high efficiency and advanced protection levels including overload, overvoltage, and short-circuit safeguards. Add to Cart today for peace of mind and superior performance in demanding applications!

Exceptional Features and Versatile Uses of OMRON S8VM-10024 C

The OMRON S8VM-10024 C impresses with its compact footprint, robust metal housing, and user-friendly LED indicator. Featuring natural air cooling and an output voltage adjustment range of 22 to 27 V, this power supply is excelled for industrial automation environments, control panels, and other demanding uses. Its praiseworthy reliability and safety approvals make it a prime choice for manufacturers, exporters, and service providers who value dependable, crowning solutions for a range of electrical systems.

Estimated Delivery, Export Markets, and Secure Packaging

OMRON S8VM-10024 C goods transport is streamlined for minimal delays. Transportation options are available to suit primary export markets such as North America, Europe, and Asia, ensuring swift delivery times based on your region-typically 5-14 business days. Items are securely packaged with exceptional care, using protective materials to safeguard your investment during transit. Estimate your delivery time with our support team and enjoy peace of mind knowing your order will arrive ready for immediate industrial use.

FAQ's of OMRON S8VM-10024 C:

Q: How does the OMRON S8VM-10024 C protect against overload and short-circuit conditions?

A: The S8VM-10024C comes equipped with advanced protection mechanisms including overload, overvoltage, and short-circuit protection. These features ensure stable operation and prevent damage to connected devices, safeguarding your systems in demanding industrial environments.

Q: What is the process for adjusting the output voltage on the S8VM-10024 C?

A: You can easily adjust the output voltage within a range of 22 to 27 V using the terminal block interface. This flexibility ensures compatibility with various industrial devices and applications requiring precise voltage settings.

Q: When can I expect delivery of the OMRON S8VM-10024 C after placing an order?

A: Delivery times generally range from 5 to 14 business days, depending on your location and chosen transportation method. Our team will provide an accurate estimate at the time of purchase and keep you updated throughout the shipping process.

Q: Where is the OMRON S8VM-10024 C most commonly used?

A: This power supply is primarily used in industrial automation, control panels, and machinery requiring reliable DC output. Its certifications and robust design make it suitable for deployment in factories, production lines, and advanced industrial systems worldwide.

Q: What are the benefits of the LED indicator on the S8VM-10024 C?

A: The built-in LED indicator offers immediate visual feedback on operational status, making it easier for operators to monitor power conditions and quickly identify any issues for prompt resolution.
