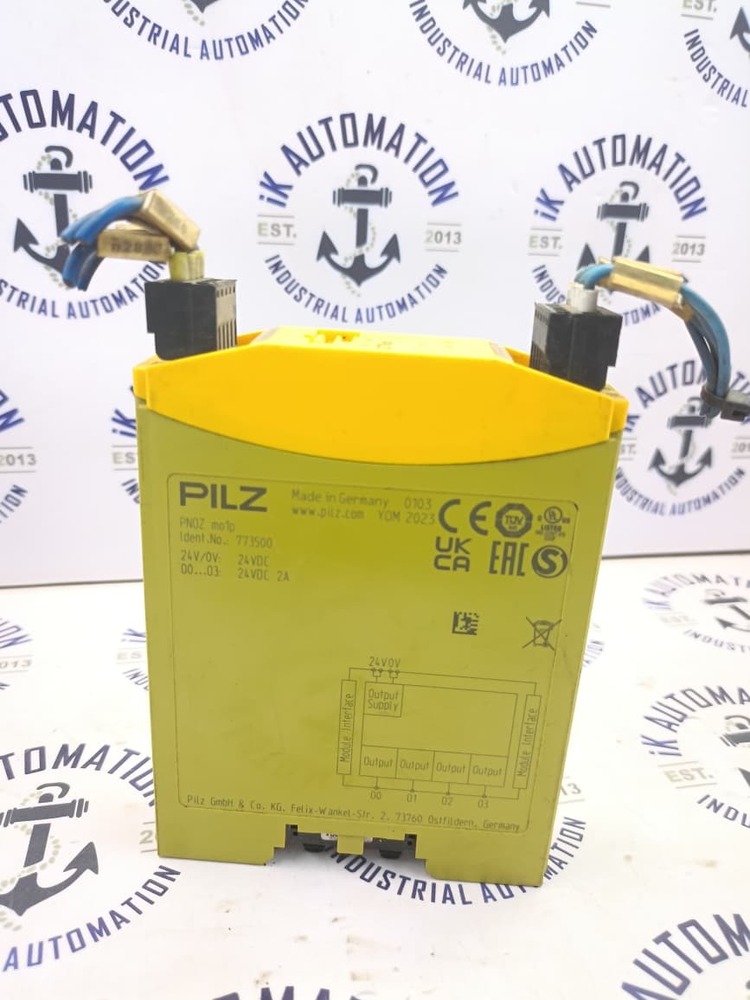

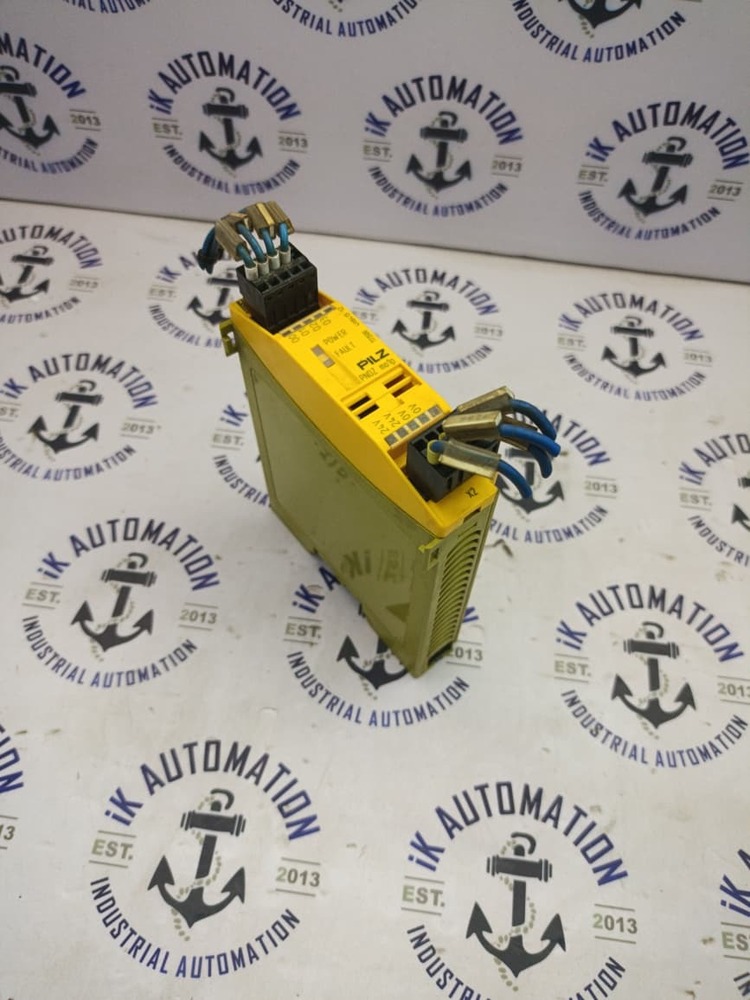

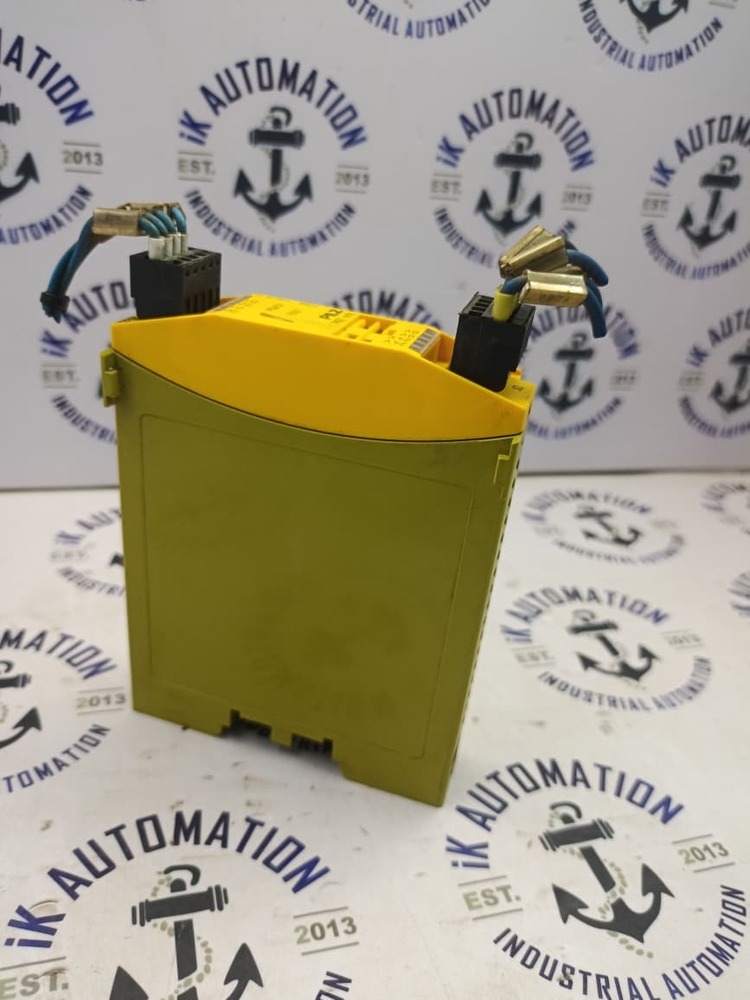

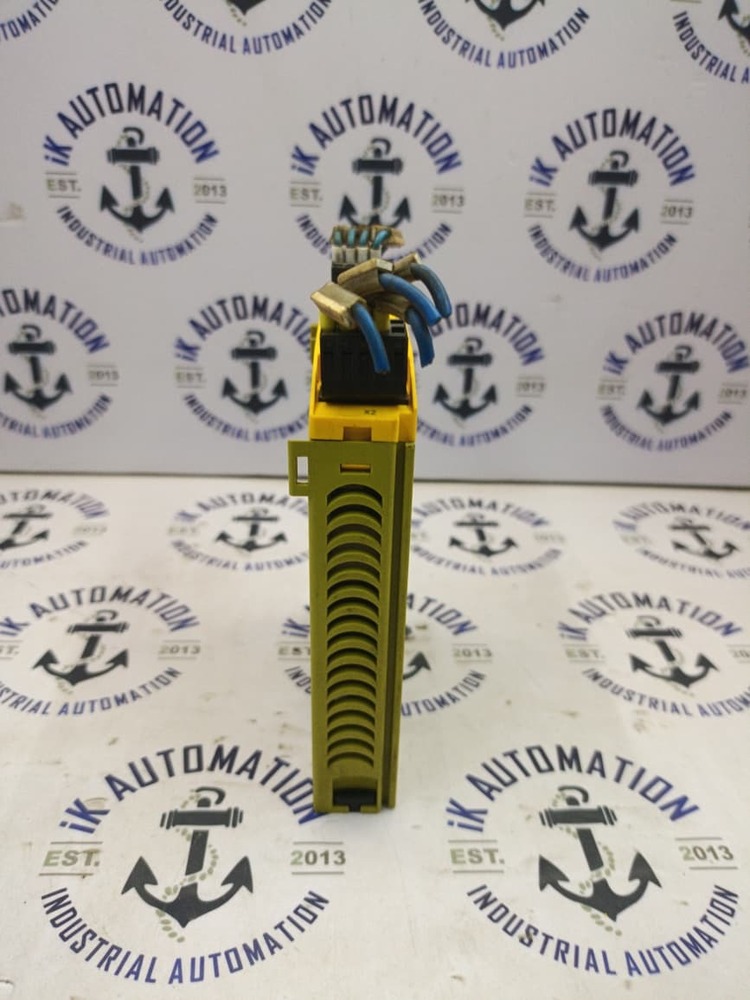

PILZ 773500

Price 1616 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PILZ 773500 Specification

Overheating Protection
YES

Operating Temperature
-10C to +55C

Surface Finish
Matte

Insulation Material
Plastic housing

Humidity %
10% to 95% (non-condensing)

Shape
Rectangular

Feature
Emergency stop monitoring, safety function

IP Rating
IP20

Mounting Type
DIN Rail

Connector Type
Screw clamp connectors

Efficiency
High Reliability

Product Type
Safety Relay

Application
Industrial Automation Safety circuits

Protection Level
Safety category 4 (EN954-1)

Frequency (MHz)
50-60 Hz

Rated Voltage
24V DC

Energy Consumption
Approx. 2.5W

Output Type
Relay Output

Color
Yellow

Dimension (L*W*H)
Approx. 87.5 x 22.5 x 102 mm

Weight
Approx. 160g

Phase
Single

Size
Compact

Input Voltage
24V DC

Connection Type
Screw terminal

No Of Poles
2

Material
Plastic, Metal

Category
Safety Relay Module

Life Expectancy
>= 1 million operations

Maximum Switching Voltage
250V AC / 24V DC

Contact Configuration
2 NO / 1 NC

Model Number
773500

Response Time
Typical <15ms

Relay Contacts Rated Current
6A

Safety Standard
EN954-1, EN61508, EN60204-1

PILZ 773500 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED PILZ 773500

About PILZ 773500

USED PILZ 773500

Product identification PILZ PNOZ mo1p

Part number 773500

Product type Failsafe digital output expansion module

System family PNOZmulti Classic

Number of outputs 4 semiconductor outputs

Supply voltage 24 V DC

Output current rating 2 A

Output switching type Singlepole positiveswitching

Protection Shortcircuitprotected outputs

Mounting 35 mm DIN rail

Dimensions H W D 94 225 121 mm

Operating temperature 0 C to 60 C

Protection rating IP20

Reliable Industrial Safety Solution

The PILZ 773500 safety relay module is specially designed for integration into safety circuits of automated industrial setups. Its rapid response time and high switching voltage capacity offer optimal protection for personnel and machinery. This compact relay provides both emergency stop monitoring and safety function control, ensuring a safety category 4 performance as per EN954-1 standards.

Efficient Design and Easy Installation

Weighing approximately 160g and featuring a compact, rectangular profile, the PILZ 773500 fits seamlessly into control panels using DIN rail mounting. Its screw terminal connectors allow for quick and secure wiring, while the matte yellow plastic housing enhances visibility and operational safety. Its robust construction ensures reliable performance in diverse operating conditions.

FAQ's of PILZ 773500:

Q: How is the PILZ 773500 safety relay installed in an automation system?

A: The PILZ 773500 is designed for DIN rail mounting and equipped with screw clamp connectors, making it straightforward to integrate into electrical control panels. Simply align the device on a standard DIN rail, connect the input/output wiring using the screw terminals, and ensure the power supply meets the required 24V DC.

Q: What is the typical response time of the PILZ 773500 safety relay module?

A: The PILZ 773500 safety relay module features a typical response time of less than 15 milliseconds, enabling prompt safety circuit activation in emergency situations.

Q: Where is the PILZ 773500 commonly used?

A: This safety relay is widely utilized in industrial automation environments, especially for emergency stop monitoring and protection circuits that require high safety integrity, such as assembly lines, robotics, and machine control systems.

Q: What are the key benefits of using the PILZ 773500 in safety applications?

A: The main benefits include high reliability, fast response, compatibility with stringent safety standards, overheating protection, and the support for over one million operational cycles. Its compact size and DIN rail mounting also facilitate efficient panel design.

Q: When should the relay contacts of the PILZ 773500 be replaced?

A: While the relay boasts a life expectancy of at least one million operations, relay contacts should be inspected regularly and replaced if signs of wear, pitting, or irregular operation are observed during routine maintenance.

Q: How does the overheating protection feature work in this module?

A: The PILZ 773500 incorporates an integrated overheating protection system that helps prevent damage due to excessive temperatures, thus maintaining operational safety and reliability.
