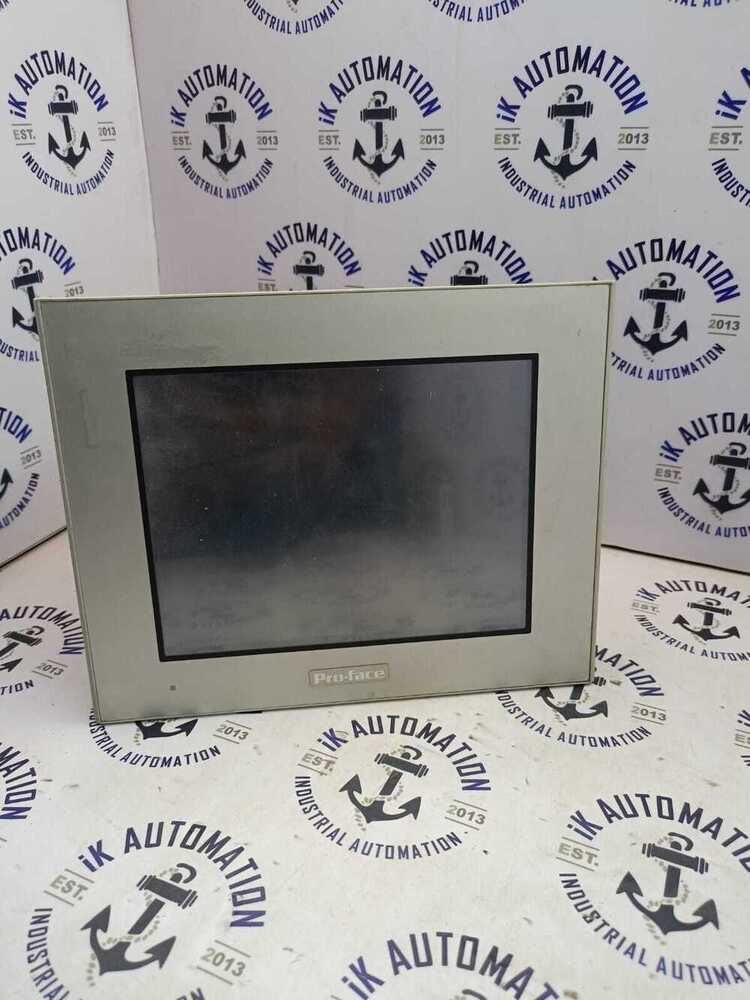

PRO-FACE GP-4401T

Name: PRO-FACE GP-4401T
Brand: IK AUTOMATION
Price: 1212 INR
Availability: InStock

Price 1212 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PRO-FACE GP-4401T Specification

Shape
Rectangular

IP Rating
IP65 (Front Panel)

Operating Temperature
0C to 50C

Insulation Material
Plastic (Housing)

Connector Type
USB Type A, Serial (RS232/RS485), Ethernet RJ45

Humidity %
10% to 90% RH (Non-condensing)

Feature
Touch Panel, Ethernet Connectivity, USB Interface, SD Card Slot

Surface Finish
Matte

Mounting Type
Panel Mount

Product Type
Touch Screen HMI (Human Machine Interface)

Application
Industrial Automation, Machine Control

Protection Level
IP65 (Front Panel)

Frequency (MHz)
50/60 Hz

Rated Voltage
24V DC

Energy Consumption
Approx. 15W

Output Type
Digital Display (LCD), Serial Communication

Color
Silver/Grey

Dimension (L*W*H)
Approx. 199 x 163 x 56 mm

Weight
Approx. 1.0 kg

Input Voltage
24V DC

Size
10.4 inch TFT color display

Phase
Single Phase

Material
Aluminum Front Panel, Plastic Housing

Connection Type
Terminal block, USB, Serial, Ethernet

Panel Cutout Size
187 x 151 mm

Backlight
LED

Touch Type
Analog Resistive Touch Screen

Max Power Consumption
15W

Programming Software
Pro-face GP-Pro EX

Voltage Tolerance
+10%/-20%

Supported Protocols
Modbus, Ethernet/IP, Profibus (optional), RS232/RS485

Display Resolution
640 x 480 pixels (VGA)

Communication Ports
2 x Serial Ports, 1 x Ethernet Port, 1 x USB Host, 1 x USB Device

Display Colors
65,536 Colors

Memory
32 MB Flash Memory

Storage Expansion
SD Card Slot

Cooling Method
Natural Air Cooling

PRO-FACE GP-4401T Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED PRO-FACE GP-4401T

About PRO-FACE GP-4401T

USED PROFACE GP4401T

Key Specifications

Parameter Specification

Manufacturer Proface Schneider Electric

Model GP4401T

Series GP4000

Type Programmable Touchscreen HMI

Display Size 75 inch

Display TFT Color LCD

Resolution 640 480 pixels VGA

Display Colors 65536 colors

Touch Panel Analog resistive

Application Memory 32 MB Flash EPROM

Backup Memory 320 KB SRAM

Power Supply 24 VDC

COM1 RS232C

COM2 RS422485

Ethernet 10BASET100BASETX

USB USB TypeA MiniB

External Storage SD card

Programming Software GPPro EX

External Dimensions 218 173 60 mm

Panel Cutout 2045 1595 mm

Operating Temperature 055 C

Advanced Touch Panel for Industrial Automation

The PRO-FACE GP-4401T blends advanced touch screen technology with significant connectivity options, making it a versatile tool for factory automation and process control. Its large 10.4-inch display offers sharp visibility, while the IP65-rated front panel protects against water and dust. Multiple communication ports ensure seamless integration with a variety of industrial devices and protocols.

Reliable Operation in Challenging Conditions

Designed with durability in mind, the GP-4401T utilizes an aluminum front panel and plastic housing, with natural air cooling for efficient heat dissipation. Its broad operating temperature and humidity range make it suitable for harsh industrial environments. Programmable via GP-Pro EX, it allows for customized screen design and responsive user interfaces.

FAQ's of PRO-FACE GP-4401T:

Q: How does the PRO-FACE GP-4401T enhance machine control applications?

A: The PRO-FACE GP-4401T improves machine control by integrating a 10.4-inch analog resistive touch screen with multi-protocol support, including Modbus and Ethernet/IP. Its intuitive interface and real-time data visualization boost operational efficiency and user engagement.

Q: What is the process for programming the GP-4401T touch panel?

A: Programming the GP-4401T is accomplished using Pro-face GP-Pro EX software. Users design and configure interfaces on a PC, then transfer the project to the panel via USB, Ethernet, or SD card. The process is straightforward and supports a range of industrial protocol configurations.

Q: When is it recommended to use the SD card slot for this device?

A: The SD card slot is used when additional storage is needed for data logging, recipe management, or backup purposes. It is advisable to utilize the SD card during the implementation of complex applications or routine maintenance for data retrieval and updates.

Q: Where is the ideal location to install the PRO-FACE GP-4401T?

A: The ideal installation location is within an industrial control panel, as the device supports panel mounting and front-panel IP65 protection. This ensures optimal operator access and protects the HMI from environmental hazards.

Q: What are the benefits of its multiple communication ports?

A: With two serial ports, an Ethernet port, a USB host, and a USB device port, the GP-4401T facilitates flexible connections with PLCs, sensors, and PCs. This versatility streamlines integration, device management, and remote monitoring within automated systems.

Q: How does natural air cooling benefit the operation of the GP-4401T?

A: Natural air cooling eliminates the need for additional fans or heat sinks, reducing maintenance and potential points of failure. This leads to more reliable, silent operation over extended periods.
