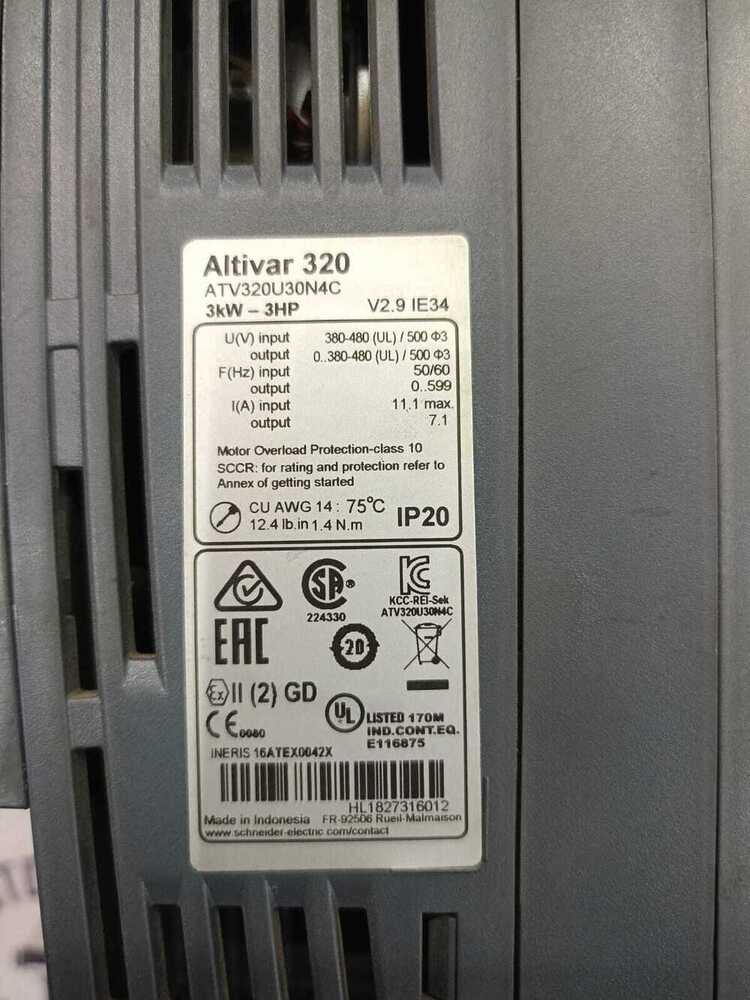

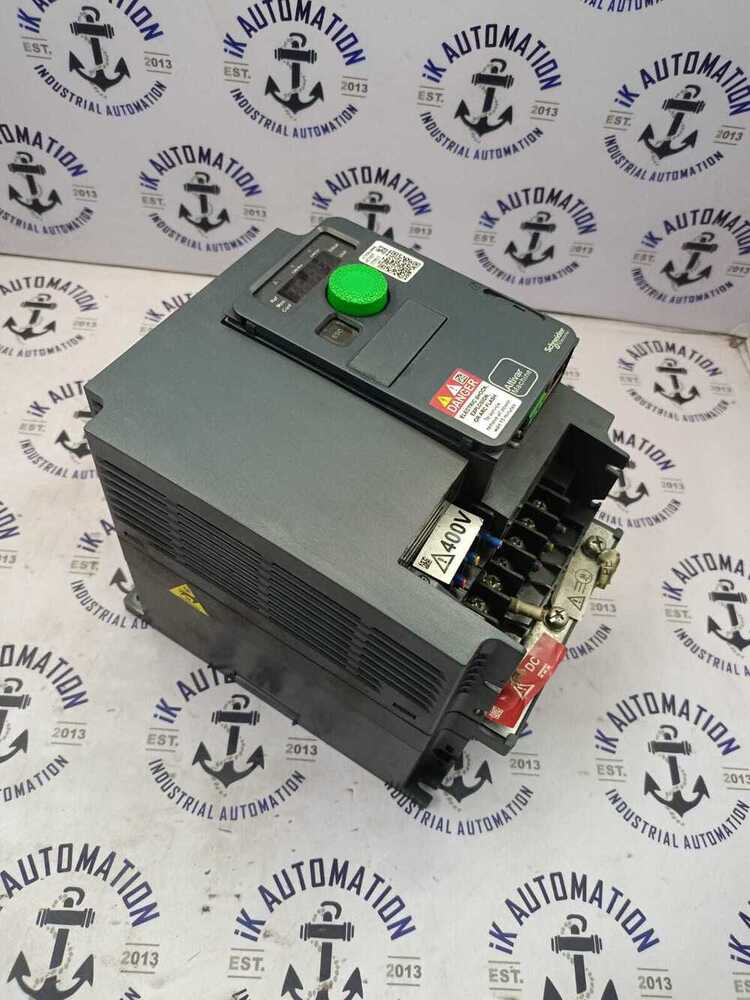

SCHNEIDER ATV320U30N4C

Name: SCHNEIDER ATV320U30N4C
Brand: IK AUTOMATION
Price: 1414 INR
Availability: InStock

Price 1414 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER ATV320U30N4C Specification

IP Rating
IP20

Power Factor
0.98

Operating Temperature
-10C to +50C

Insulation Material
High-grade Plastic

Humidity %
5 to 95% (non-condensing)

Connector Type
Screw

Feature
Integrated EMC Filter, Modbus Communication

Shape
Rectangular

Surface Finish
Matt

Efficiency
>95%

Overheating Protection
YES

Mounting Type
Wall Mount

Product Type
Variable Frequency Drive (VFD)

Application
Motor Speed Control, Automation Systems

Protection Level
Overload, Short Circuit, Overvoltage, Undervoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
3 kW output

Output Type
Three Phase Output

Color
Dark Grey

Dimension (L*W*H)
143 x 130 x 154 mm

Weight
2.9 kg

Phase
Three Phase

Input Voltage
380-500V AC

Size
U30 (3 kW/4 HP)

Material
Plastic & Metal

No Of Poles
3

Connection Type
Screw Terminal

Overload Capacity
150% for 60 seconds

Motor Power Range
3 kW (4 HP)

Relay Outputs
2 configurable relay outputs

Model Number
ATV320U30N4C

Cooling Method
Fan Cooled

Control Type
Keypad/Terminal/Communication

Analogue Input
2 (voltage/current selectable)

Display Type
LED Digital Display

Digital Input
6 (programmable)

Communication Protocol
Modbus/Bluetooth (optional)

SCHNEIDER ATV320U30N4C Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED SCHNEIDER ATV320U30N4C

SCHNEIDER ATV320U30N4C About

USED SCHNEIDER ATV320U30N4C

Key specifications

Parameter	Specification
Manufacturer	Schneider Electric
Series	Altivar Machine ATV320
Model	ATV320U30N4C
Type	Variable Speed Drive / VFD
Motor rating	3 kW
Input supply	3-phase, 380500 V AC
Frequency	50/60 Hz
Output current	7.1 A continuous at 4 kHz, heavy duty
Maximum transient current	10.7 A for 60 s
Motor type	Asynchronous and synchronous motors
Control	V/F and sensorless vector control
EMC filter	Integrated Class C2
Protection	IP20
Cooling	Fan
Form factor	Compact
Safety	STO (Safe Torque Off)
Communication	Modbus/CANopen capability
Typical application	Industrial machines, pumps, fans, conveyors and other motor-speed-control

Versatile Motor Control and Communication

The ATV320U30N4C supports various control methods such as keypad, terminals, and communication protocols including Modbus and optional Bluetooth. This flexibility allows for seamless integration into different automation systems and quick adaptation to diverse operational requirements.

Enhanced Protection and Reliability

With robust protection features like overload, short circuit, overvoltage, and undervoltage safeguards, the ATV320U30N4C ensures the safety of both equipment and operators. This reliability is further supported by its high-quality construction, integrated EMC filter, and IP20 rating.

High Efficiency and Easy Installation

Achieving efficiency levels above 95% and equipped with a power factor of 0.98, the drive guarantees optimized energy consumption. Its compact design, screw terminal connections, and wall mount compatibility make installation straightforward for professionals across Indonesia.

FAQ's of SCHNEIDER ATV320U30N4C:

Q: How is the SCHNEIDER ATV320U30N4C typically used in industrial settings?

A: The ATV320U30N4C is primarily used for motor speed control and automation systems, enabling precise regulation of motor operations in applications such as conveyors, pumps, and fans in factories and industrial environments.

Q: What benefits does the optional Modbus/Bluetooth communication offer?

A: Optional Modbus/Bluetooth communication allows remote monitoring, configuration, and integration with modern automation networks, enhancing flexibility and reducing downtime during maintenance or adjustment.

Q: When should the overload protection feature be utilized?

A: The overload protection, supporting up to 150% for 60 seconds, activates when the connected motor experiences excessive load, helping protect the motor and drive from potential damage and maximizing operational safety.

Q: Where can the ATV320U30N4C be installed safely?

A: The drive is designed for indoor use in industrial and clean environments within its IP20 protection rating. It is suitable for wall-mounted installation and should be placed in locations with a temperature range of -10C to +50C and non-condensing humidity (5-95%).

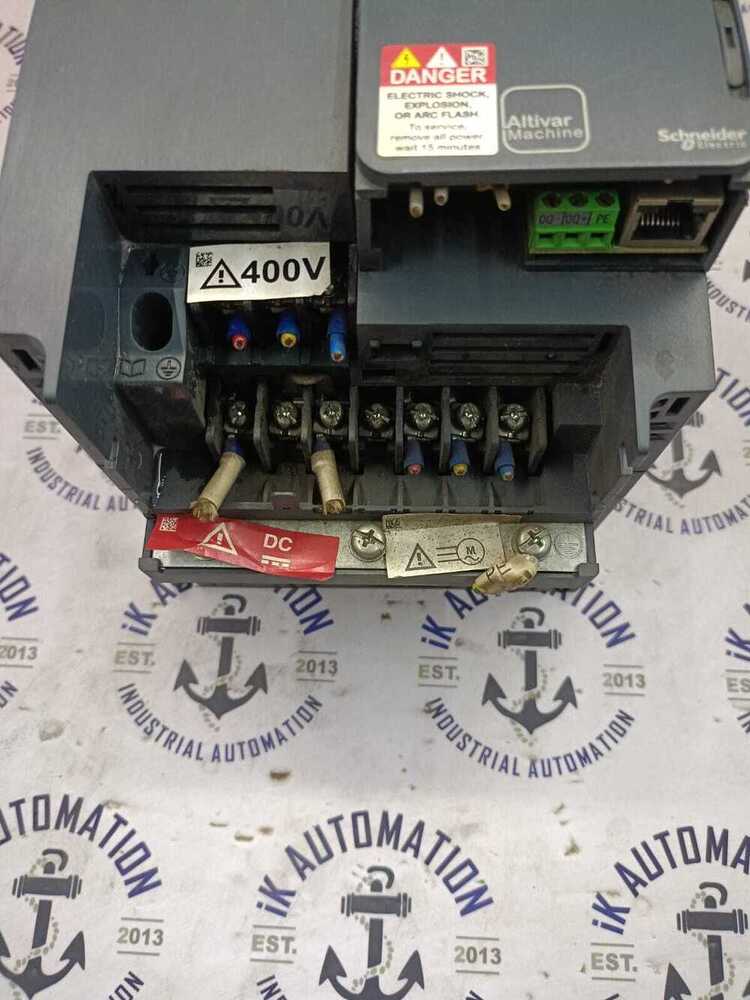

Q: What is the process for connecting inputs and outputs to the drive?

A: Connection is achieved via screw terminals for easy wiring. Six digital, two analog (voltage/current selectable), and two configurable relay outputs allow integration with a wide variety of sensors and actuators for advanced automation.

Q: How does the integrated EMC filter benefit installations?

A: The built-in EMC filter minimizes electromagnetic interference, ensuring compliance with industrial safety standards and reducing noise that can affect other sensitive equipment in the workspace.
