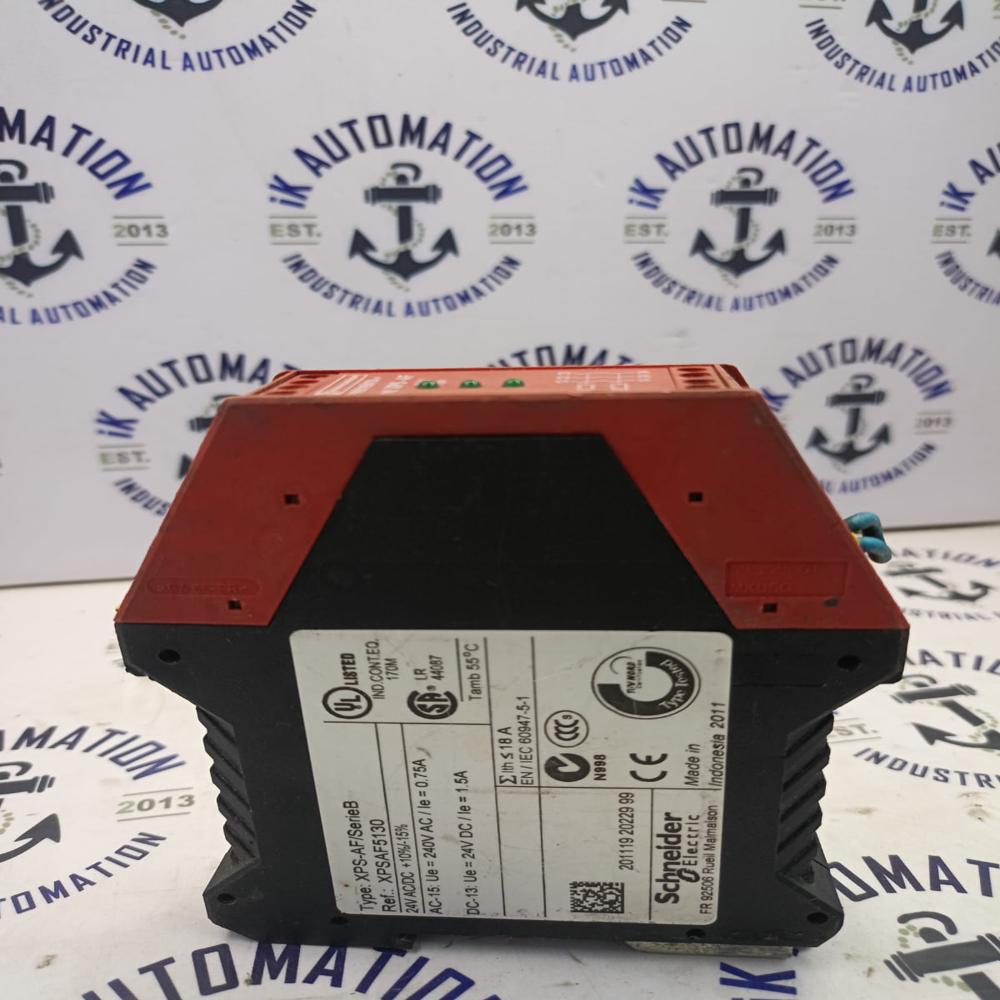

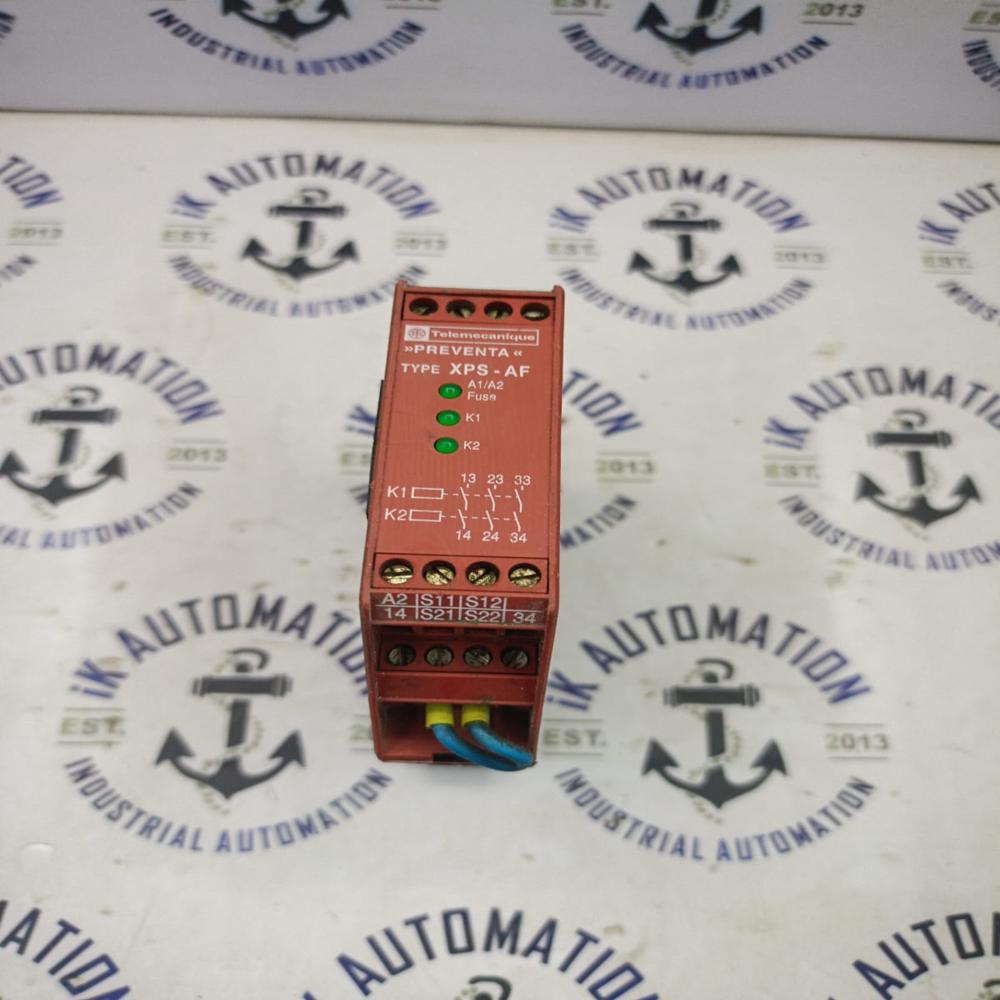

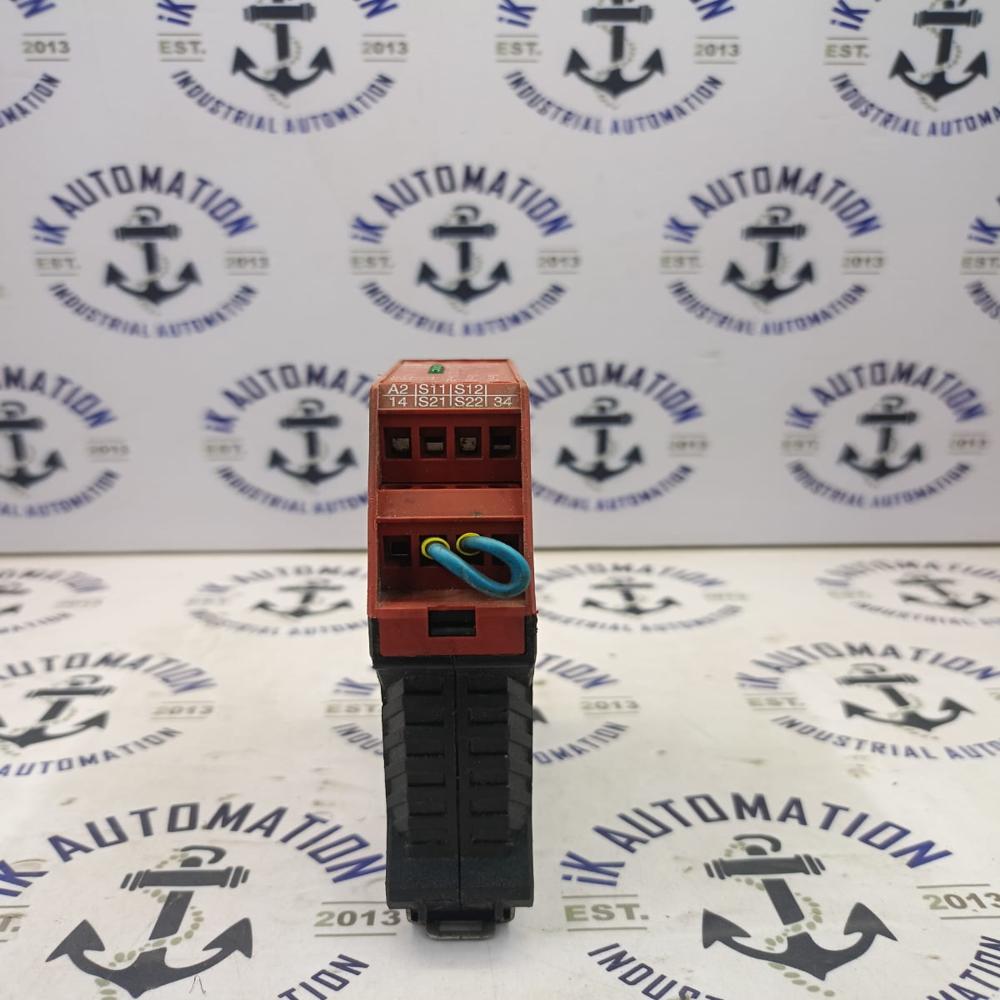

SCHNEIDER XPSAF5130

Name: SCHNEIDER XPSAF5130
Brand: IK AUTOMATION
Price: 1313.0 INR
Availability: InStock

Price 1313.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER XPSAF5130 Specification

Connector Type
Screw Type Terminals

IP Rating
IP20

Efficiency
Standard for Safety Relays

Surface Finish
Matte Plastic

Insulation Material
High-impact Polycarbonate

Power Factor
N/A (DC Operation)

Shape
Rectangular DIN Rail Module

Mounting Type
DIN Rail Mount

Overheating Protection
Yes (Thermal Protection)

Operating Temperature
-10C to +55C

Humidity %
10% to 95%, non-condensing

Feature
Manual/Auto Start, LED Indication, Dual Channel Input

Product Type
Safety Relay Module

Application
Industrial Automation, Safety Circuits, Emergency Stop Circuits

Protection Level
Safety Category 4 (ISO 13849-1)

Frequency (MHz)
50/60 Hz

Rated Voltage
24V DC

Energy Consumption
< 2.5 W

Output Type
Relay (3 N/O) + 1 N/C

Color
Red & Black

Dimension (L*W*H)
22.5 x 100 x 120 mm (approx.)

Weight
Approx. 200 g

Size
Compact DIN Rail Mount

Input Voltage
24V DC

Phase
Single / Two-channel (configurable)

Material
Plastic (Enclosure)

Connection Type
Screw Terminal

No Of Poles
2

Response Time
< 20 ms

Housing Material
Thermoplastic

Reset Type
Manual and Automatic Reset Supported

Contact Rating
250V AC / 6A (resistive load)

Max Cable Cross-section
2.5 mm2 (flexible/rigid)

Standards Compliance
EN 954-1, ISO 13849-1, IEC 61508

Storage Temperature
-25C to +70C

Indicators
LED (Status and Fault Indication)

SCHNEIDER XPSAF5130 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED SCHNEIDER XPSAF5130

About SCHNEIDER XPSAF5130

USED SCHNEIDER XPSAF5130

Technical specifications


Brand	Schneider Electric
Model	XPSAF5130
Product range	Preventa
Product type	Safety relay module
Application	Emergency-stop and safety-switch monitoring
Rated supply voltage	24 V AC/DC
Supply frequency	50/60 Hz
Safety outputs	3 NO, instantaneous relay outputs
Start type	Configurable
Mounting	DIN rail
Electrical connection	Screw terminals
Protection rating	IP20
Operating temperature	-10C to +55C
Safety level	Up to PL e, Category 4, depending on system design
SIL capability	SILCL 3, subject to applicable system requirements

Reliable Safety for Industrial Automation

Engineered for robust operation in industrial environments, the SCHNEIDER XPSAF5130 ensures optimal safety for machinery and personnel. Its dual-channel input and advanced relay output capabilities make it ideal for emergency stop circuits and complex safety circuits, maintaining protection even in demanding applications. LED status and fault indicators provide at-a-glance monitoring, ensuring quick troubleshooting and smooth operation.

Efficiency Meets International Compliance

The XPSAF5130 meets stringent international safety standards such as EN 954-1, ISO 13849-1, and IEC 61508, achieving Category 4 protection as per ISO 13849-1. With a rapid response time of less than 20 ms and energy consumption below 2.5 W, this relay delivers efficient operation without compromising safety or reliability, and is perfectly suited for modern safety requirements in Indonesian industry.

Compact Design, Simple Installation

Featuring a compact DIN rail-friendly casing (22.5 x 100 x 120 mm), the XPSAF5130 is easy to mount and has screw terminal connections for secure wiring. Its housing is made of high-impact polycarbonate for durability, while supporting a cable cross-section up to 2.5 mm2. The versatile unit supports both manual and automatic reset, making integration straightforward for system builders and maintenance teams.

FAQ's of SCHNEIDER XPSAF5130:

Q: How is the SCHNEIDER XPSAF5130 installed in an industrial environment?

A: The XPSAF5130 is designed for easy DIN rail mounting in standard electrical panels. It features screw terminals compatible with flexible or rigid cables up to 2.5 mm2, simplifying integration into new or existing safety circuits in industrial settings.

Q: What are the benefits of using dual channel input in safety applications?

A: Dual channel input provides redundancy, ensuring that a single fault does not compromise system safety. This is especially important in emergency stop and critical safety circuits, offering enhanced protection and compliance with Category 4 (ISO 13849-1) standards.

Q: When should I use manual versus automatic reset modes?

A: Manual reset is recommended when it is necessary for personnel to verify safety conditions before restarting machinery, while automatic reset can be used in controlled environments where swift resumption of operations is required after a fault is cleared. Both modes are selectable on the XPSAF5130 for operational flexibility.

Q: Where can the XPSAF5130 be utilized?

A: This safety relay is suitable for a range of industrial automation contexts, including machinery safety, emergency stop circuits, and other safety-critical applications. Its rugged design makes it ideal for use across manufacturing plants and process automation lines in Indonesia.

Q: What process is in place for monitoring the relay's status?

A: The XPSAF5130 is equipped with LED indicators for status and fault conditions, enabling quick diagnosis and ensuring that operators can easily monitor system health for timely maintenance and intervention.

Q: How does the XPSAF5130 achieve compliance with international safety standards?

A: It is independently tested and certified to EN 954-1, ISO 13849-1, and IEC 61508. Through its robust mechanical and electrical design, dual channel inputs, and reliable relay outputs, it satisfies the requirements for use in safety Category 4 applications.

Q: What are the main advantages of choosing the XPSAF5130 for safety relay functions?

A: The XPSAF5130 offers fast response time (<20 ms), robust fault indication, versatile reset options, strong environmental resistance, and full compliance with international safety standards, making it a reliable and efficient choice for improving industrial safety systems.
