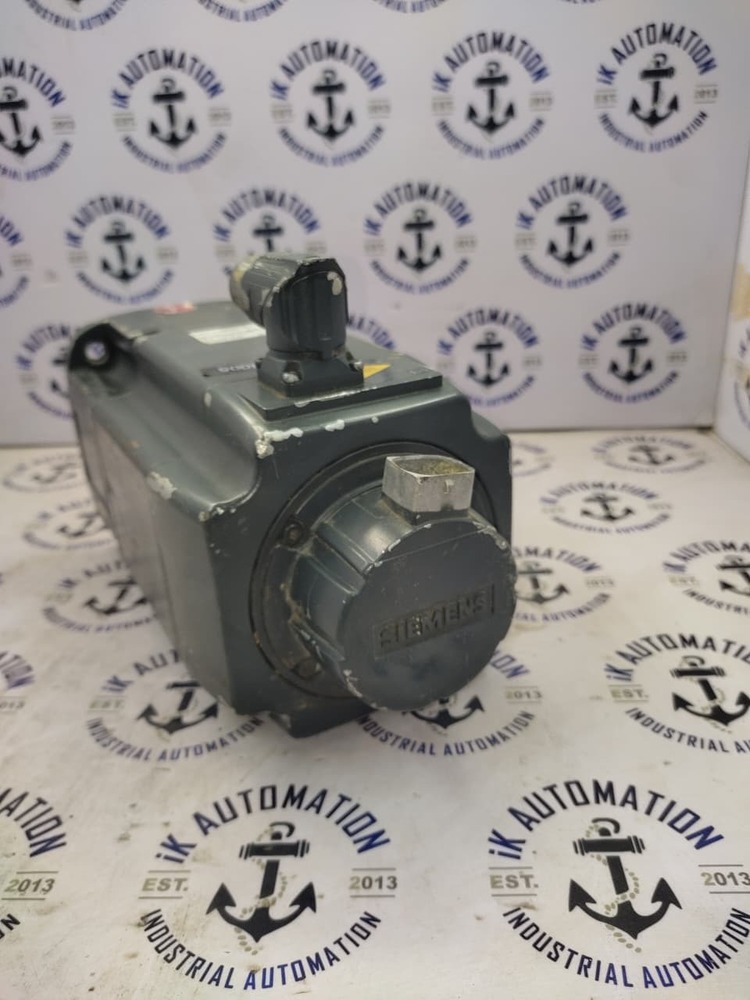

SIEMENS 1FK7063-2AF7 1-RB0

Name: SIEMENS 1FK7063-2AF7 1-RB0
Brand: IK AUTOMATION
Price: 1414 INR
Availability: InStock

Price 1414 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 1FK7063-2AF7 1-RB0 Specification

Connector Type
Circular Connector (Encoder and Power)

Efficiency
High Efficiency Motor

Humidity %
Max. 90% (non-condensing)

Overheating Protection
Integrated Temperature Sensor

Shape
Cylindrical

Operating Temperature
0C to +40C (Standard)

Insulation Material
Class F Insulation

Feature
High Dynamics, Compact Design, Feedback Encoder Integrated

IP Rating
IP65

Surface Finish
Painted/Coated

Mounting Type
Flange Mounting

Product Type
Synchronous Servo Motor

Application
Automation, CNC, Robotics, Industrial Machinery

Protection Level
IP65

Rated Voltage
320 V

Energy Consumption
Depends on Load/Application

Output Type
Rotary Motion

Color
Grey-Black

Dimension (L*W*H)
Approx. 260mm x 90mm x 100mm

Weight
7.5 kg (approx)

Input Voltage
320 V DC (Nominal)

Phase
Three Phase

Size
1FK7063 Frame Size

Connection Type
Flange Mount, Electrical Connector

Material
Aluminum Cast Housing / Steel Shaft

Inertia
0.0019 kgm2

Lubrication
Lifetime Lubricated Bearings

Peak Torque
17 Nm

Motor Model
1FK7063-2AF7-1-RB0

Cooling Method
Natural Convection/Air Cooled

Serial Number
Specific to Unit

Torque Constant
1.91 Nm/A

Maximum Speed
6000 rpm

Shaft Type
Keyed, Smooth Shaft

Brake
Not Present (Standard Version)

Storage Temperature
-20C to +80C

Service Life
>20,000 h (typical)

Rated Torque
6 Nm

Noise Level
<70 dB(A)

Feedback
Incremental Encoder (Standard) or Absolute (Optional)

Rated Power
1.09 kW

SIEMENS 1FK7063-2AF7 1-RB0 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED SIEMENS 1FK7063-2AF7 1-RB0

About SIEMENS 1FK7063-2AF7 1-RB0

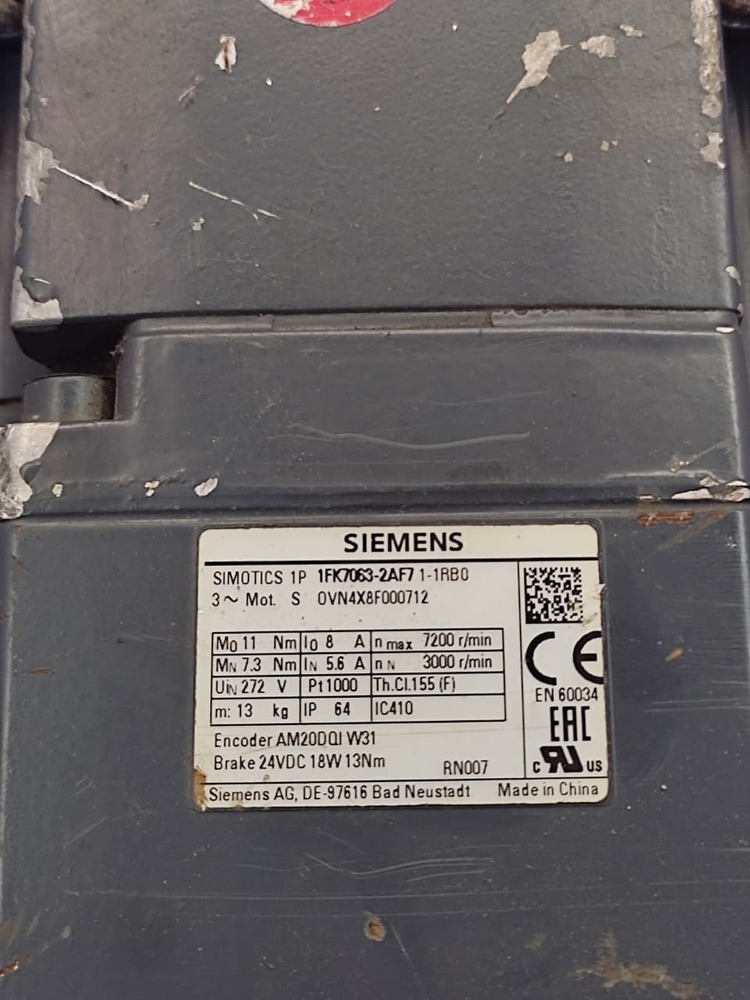

Main specifications

Motor type: Permanent-magnet synchronous servo motor
Series: SIMOTICS S 1FK7-CT
Rated power: 2.3 kW
Rated speed: 3,000 rpm
Rated torque: 7.3 Nm
Static/stall torque: up to 11 Nm at 100 K
Rated current: 5.6 A
Maximum mechanical speed: 7,200 rpm
Maximum torque: 35 Nm
Cooling: Natural cooling
Mounting: IM B5 / flange mounting
Motor shaft height: 63 mm
Typical application: CNC machines, machine tools, automation and precision motion systems.
USED SIEMENS 1FK7063-2AF7 1-RB0

High Performance and Reliability

Designed for high dynamics, the SIEMENS 1FK7063-2AF7-1-RB0 provides consistent output and precise control, making it suitable for advanced industrial automation. Its IP65 protection, integrated feedback, and lifetime-lubricated bearings enhance reliability and minimize maintenance.

Versatile Applications

This motor is highly versatile, supporting automation systems, CNC machinery, robotics, and a variety of industrial equipment. The compact frame and flange mounting facilitate straightforward integration into new or existing systems.

Efficient and Durable Design

Built with a durable aluminum cast housing and a keyed or smooth steel shaft, the motor boasts a high efficiency rating and a noise level under 70 dB(A). The surface is painted/coated, ensuring longevity even in rigorous industrial settings.

FAQ's of SIEMENS 1FK7063-2AF7 1-RB0:

Q: How should the SIEMENS 1FK7063-2AF7-1-RB0 motor be installed in industrial machinery?

A: This motor is designed for flange mounting using the provided electrical connectors. Ensure the frame size and connection type match your equipment, and that installation is carried out by qualified personnel following local electrical standards.

Q: What benefits does the integrated feedback encoder provide?

A: The standard incremental encoder, with an optional absolute variant, offers precise position and speed monitoring. This results in greater control accuracy and enhanced automation performance for CNC and robotics applications.

Q: When is it necessary to select the absolute encoder over the standard incremental encoder?

A: An absolute encoder is preferred when your application requires immediate position feedback after power cycles, providing absolute position data without referencing, which is ideal for precise automation or safety-critical systems.

Q: Where can the SIEMENS 1FK7063-2AF7-1-RB0 be used effectively?

A: This motor excels in environments that demand compact, high-performance drives-such as automation, CNC machinery, robotics, and other industrial applications. Its IP65 protection makes it suitable for challenging factory conditions.

Q: What is the process for connecting the motor electrically?

A: Connect the motor using its circular power and encoder connectors, ensuring correct alignment and secure mating. Double-check wiring diagrams and verify voltage ratings before energizing the system to avoid damage.

Q: How does the integrated temperature sensor prevent overheating?

A: The built-in temperature sensor continuously monitors operating temperatures. If excessive heat is detected, the motor's control system can trigger protective shutdowns, ensuring safety and protecting the motor's lifespan.

Q: What maintenance is required for the 1FK7063-2AF7-1-RB0 servo motor?

A: Minimal maintenance is needed as the motor uses lifetime-lubricated bearings. Routine checks should ensure the electrical connectors are secure and the surface is free from dust or debris for optimal cooling.
