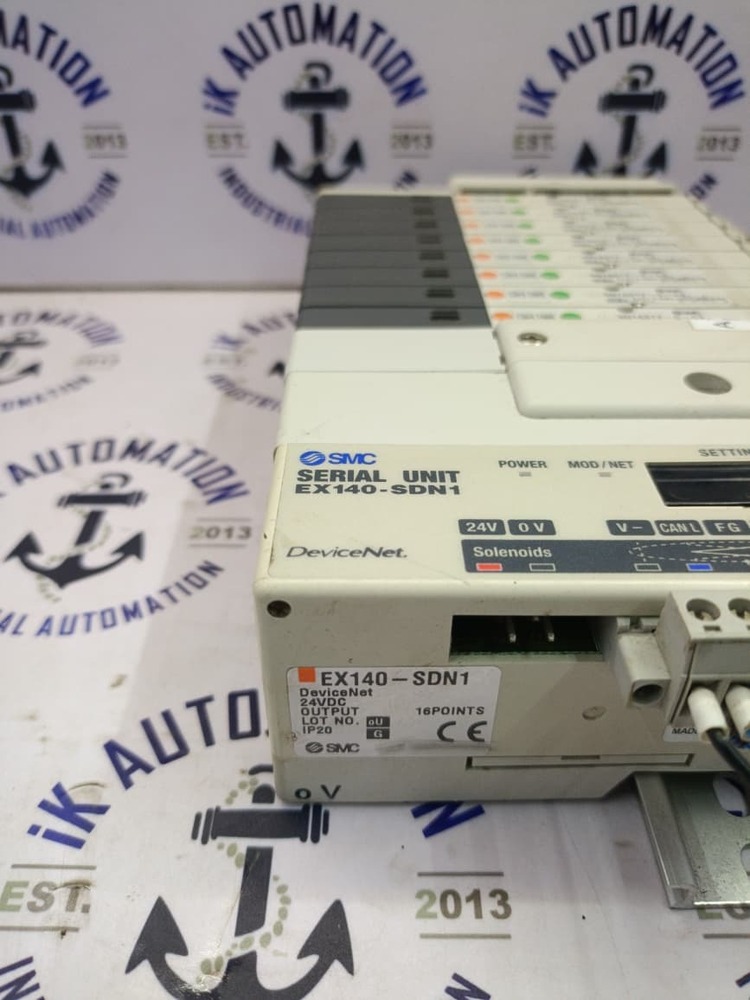

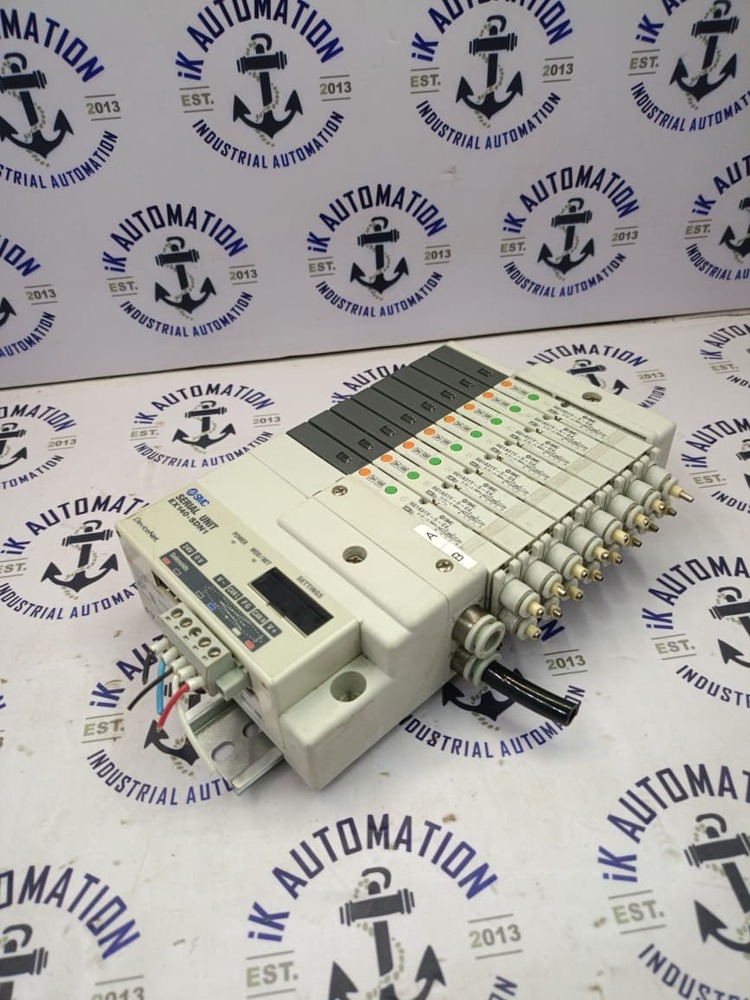

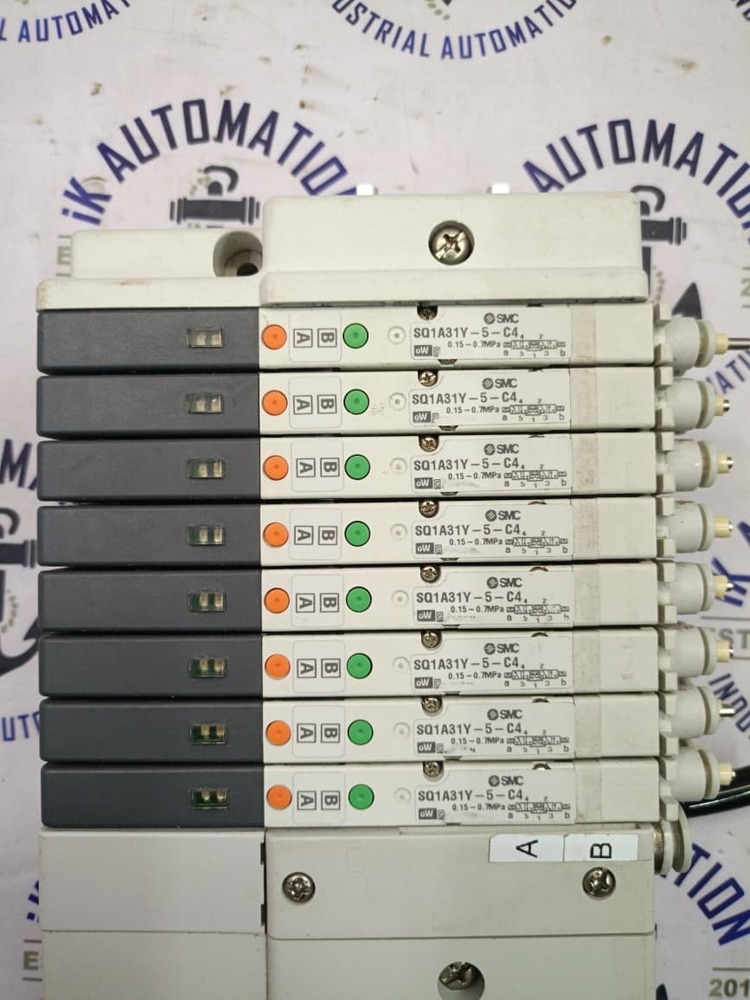

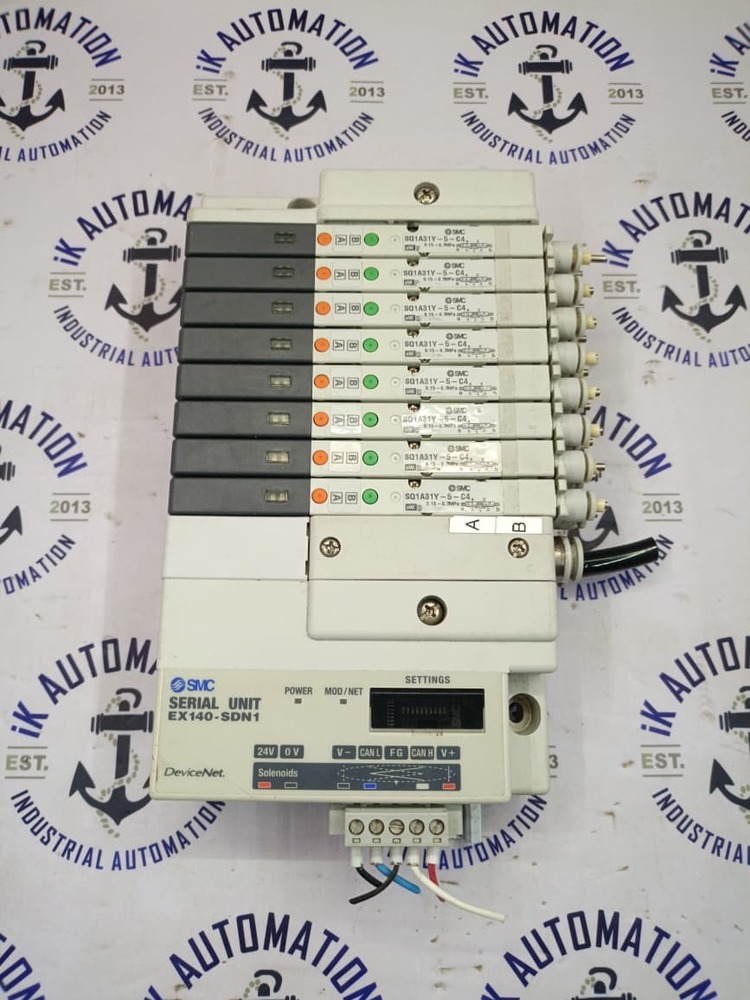

SMC EX140-SDN1

Name: SMC EX140-SDN1
Brand: IK AUTOMATION
Price: 1212.0 INR
Availability: InStock

Price 1212 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SMC EX140-SDN1 Specification

Operating Temperature
-10C to +50C

Mounting Type
DIN Rail / Panel

Efficiency
High

Shape
Rectangular

Connector Type
Sub-D Connector

Overheating Protection
YES

Humidity %
20-90% RH

Surface Finish
Matt

IP Rating
IP65

Insulation Material
Polycarbonate

Feature
Compact, Modular, Easy Integration

Product Type
Valve Manifold Communication Adapter

Application
Factory Automation, Pneumatic Control

Protection Level
IP65

Rated Voltage
24V DC

Energy Consumption
Low

Output Type
Digital

Color
White/Beige

Dimension (L*W*H)
Approx. 180mm x 80mm x 45mm

Weight
Approx. 500g

Size
Standard

Input Voltage
24V DC

Phase
Single

Material
Aluminum, Polycarbonate

No Of Poles
8

Connection Type
Direct Cable, Sub-D Port

Valve Stations
8 (Expandable)

Bus System
DeviceNet, Digital Control

Response Time
< 5ms

Communication Interface
DeviceNet

Maximum Load per Output
0.5A

Electrical Connection
Plug-in

Vibration Resistance
30m/s2

Compatibility
SMC SY, VQ Series Valves

Life Expectancy
>10 million cycles

Control Method
Fieldbus

Shock Resistance
300m/s2

Port Type
Push-in & Threaded

Supply Voltage Range
24V DC +/-10%

Status Indicators
LED for power and operation

Heat Resistance
Good

Model
EX140-SDN1

Storage Temperature Range
-20C to +60C

Ambient Temperature
-10C to +50C

SMC EX140-SDN1 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED SMC EX140-SDN1

About SMC EX140-SDN1

USED SMC EX140SDN1

Key specifications

Model EX140SDN1

Network DeviceNet Release 20

IO 0 inputs 16 outputs

Communication speed 125 250 500 kbps

Output NPN sink positive common

Valve supply 24 VDC 10 5

Valve load SMC solenoid valve 24 VDC up to 21 W

Internal current consumption 100 mA

Operating temperature 055 C with 8 valve outputs ON 050 C with 16 ON

Compatible valve families including SMC SZ3000 and SQ10002000 series

DeviceNet Communication & Digital Control

The EX140-SDN1 utilizes DeviceNet fieldbus for swift, reliable digital communication with response times under 5ms. This reliable and standardized interface simplifies integration in modern industrial systems, offering precise valve control and monitoring compatibility with other DeviceNet-equipped devices.

Rugged, Adaptable Design for Industrial Environments

Built from high-quality aluminum and polycarbonate, this product withstands challenging environments-rated for shock, vibration, and a broad temperature range. Its IP65 protection and heat resistance ensure stable performance in dusty, damp, and high-temperature settings frequently found in Indian factories.

Flexible Valve Integration and Expansion

Designed for compatibility with SMC SY and VQ Series valves, the EX140-SDN1 accommodates up to eight valve stations, which can be expanded as application needs grow. This modularity makes it easy to scale with expanding automation requirements.

FAQ's of SMC EX140-SDN1:

Q: How do I connect the SMC EX140-SDN1 to my DeviceNet network?

A: The EX140-SDN1 is equipped with a Sub-D connector for direct cable connections to your DeviceNet network. Simply mount the unit on a DIN rail or panel, plug in your DeviceNet cable, and connect to your network-no complex wiring or setup required.

Q: What are the main benefits of using the EX140-SDN1 in factory automation?

A: This valve station offers fast response, reliable digital control, and easy system expansion. Its IP65 rating, robust construction, and compatibility with leading valve series enhance reliability and simplify integration, boosting system uptime and flexibility.

Q: When should I expand the number of valve stations on the EX140-SDN1?

A: You should expand your valve stations when your automation application requires control of additional pneumatic actuators beyond the initial capacity. The modular design allows for scalable expansion up to eight stations, adapting as your requirements grow.

Q: Where can the EX140-SDN1 be installed for best performance?

A: The EX140-SDN1 can be installed on DIN rails or directly on panels within control cabinets exposed to industrial environments. It is suitable for locations with temperatures from -10C to +50C and where IP65 protection from dust and water is needed.

Q: What is the process for replacing a faulty valve on the EX140-SDN1 station?

A: First, ensure the power supply is off. Remove the affected valve from the plug-in slot, insert the replacement compatible SY or VQ series valve, and secure it. Restore power, and check status indicators to ensure normal operation resumes.

Q: How does the EX140-SDN1 ensure long-term reliability in demanding environments?

A: It features a shock resistance up to 300m/s2, vibration resistance to 30m/s2, heat-resistant construction, and IP65/sealed protection, ensuring continued performance even in factories with intense mechanical and environmental stress.
