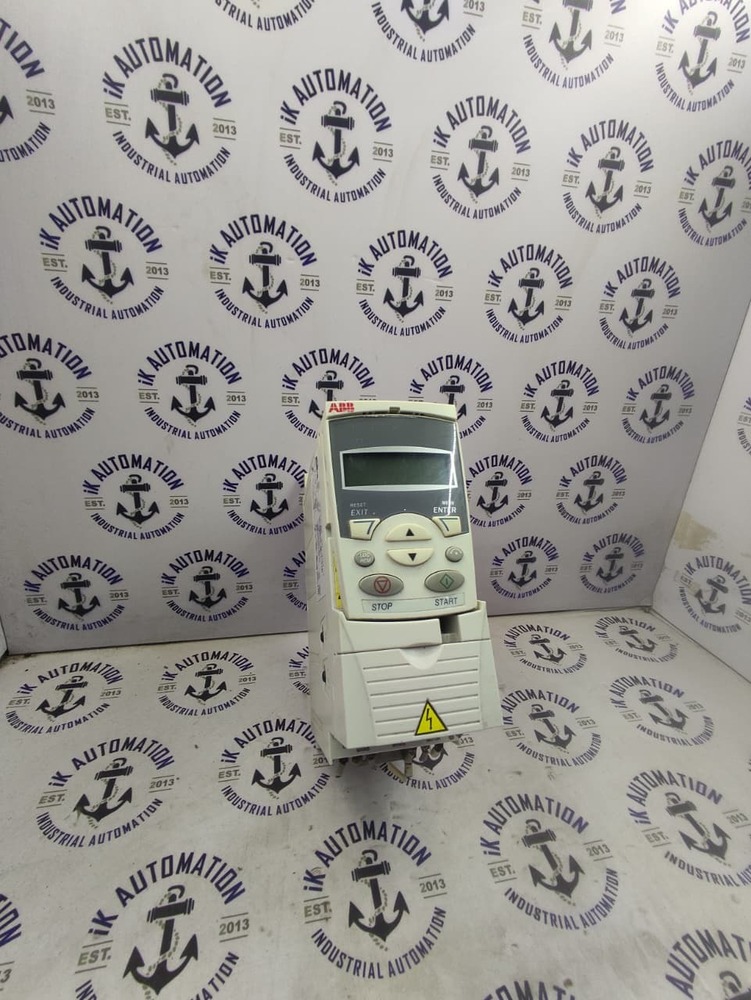

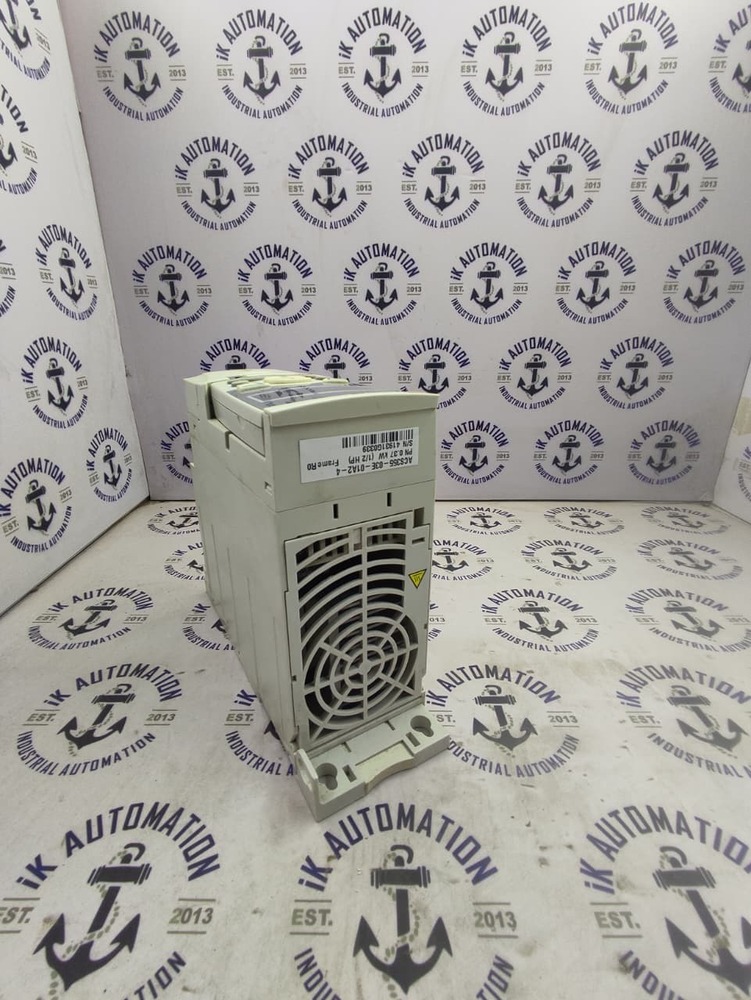

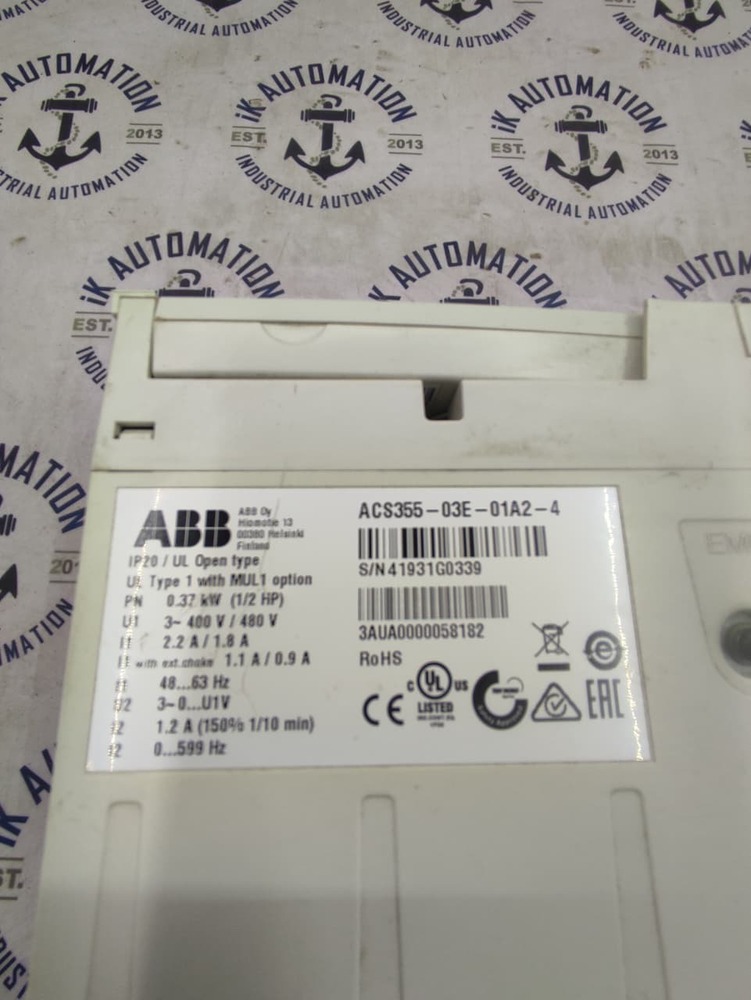

ABB ACS355-03E-03E-01-4

Name: ABB ACS355-03E-03E-01-4
Brand: IK AUTOMATION
Price: 1616.0 INR
Availability: InStock

Price 1616.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ABB ACS355-03E-03E-01-4 Specification

Efficiency
Up to 97%

Surface Finish
Matt finish

IP Rating
IP20

Power Factor
>0.98

Operating Temperature
-10C to +50C

Humidity %
0-95%, non-condensing

Feature
User-friendly control panel, programmable, built-in safety features

Shape
Rectangular

Overheating Protection
Yes, integrated

Insulation Material
Standard industrial insulation

Mounting Type
Panel Mount

Connector Type
Screw terminals

Product Type
AC Drive / Variable Frequency Drive (VFD)

Application
Industrial motor control / automation

Protection Level
Overcurrent, Overvoltage, Undervoltage, Overtemperature

Frequency (MHz)
0.5-500 Hz

Rated Voltage
380-480V AC

Energy Consumption
Depends on load & settings

Output Type
Adjustable Frequency & Voltage Output

Color
White / Grey

Dimension (L*W*H)
180 mm x 70 mm x 160 mm

Weight
1.1 kg

Size
Compact

Phase
Three Phase

Input Voltage
380-480V AC

Material
Plastic / Metal Composite

No Of Poles
-

Connection Type
Screw Terminal Block

Analog Inputs
2

Braking Chopper
Integrated

Analog Outputs
1

Standards Compliance
CE, UL, cUL, RoHS

Control Method
V/Hz scalar control, sensorless vector control

Digital Inputs
5

Noise Level
<70 dB(A)

Display
LCD keypad

Digital Outputs
1 relay

Cooling Method
Forced air cooling (fan)

Communication Interface
Modbus, optional fieldbus modules

Motor Power Rating
1.5 kW (2 HP)

ABB ACS355-03E-03E-01-4 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSOTMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ABB ACS355-03E-03E-01-4

ABB ACS355-03E-03E-01-4 About

USED ABB ACS355-03E-03E-01-4

ABB ACS355-03E-03A3-4 Low Voltage AC Machinery Drive / Variable Frequency Drive (VFD)

Series: ACS355
Supply: 3-phase, 380480 V AC
Rated output current: 3.3 A
Rated motor power: 1.1 kW (IEC)
Enclosure: IP20
Frame size: R1
EMC: Built-in EMC filter, 50 Hz configuration
Application: Speed control of 3-phase AC motors, suitable for machinery, pumps, fans, conveyors,

The model-code breakdown is essentially:

ACS355 = ABB machinery drive series
03 = 3-phase input
E = EMC filter connected
03A3 = 3.3 A rated output
4 = 380480 V class

Advanced Motor Control for Industrial Automation

The ACS355-03E-03E-01-4 is tailored for reliable and precise control of industrial motors. Supporting both V/Hz scalar and sensorless vector control methods, it ensures adaptable speed and torque performance. This drive is compatible with various automation systems, thanks to its Modbus support and optional fieldbus modules. Its robust construction and integrated safety features offer peace of mind for demanding automation environments, while maintaining a compact form factor.

User-Friendly Interface and Flexible Configuration

Equipped with an LCD keypad and a panel mount design, this drive simplifies installation and operation. Programming is intuitive, with five digital and two analog inputs allowing for versatile system integration. The user can monitor performance and adjust settings easily through the front panel, increasing efficiency during both setup and daily use. The compact size and screw terminal connections facilitate straightforward mounting and wiring.

FAQ's of ABB ACS355-03E-03E-01-4:

Q: How does the ACS355-03E-03E-01-4 ensure motor protection during operation?

A: This drive features comprehensive protection mechanisms, including overcurrent, overvoltage, undervoltage, and overtemperature safeguards. An integrated overheating protection system ensures safe and reliable performance, reducing downtime and risk to connected equipment.

Q: What connection and mounting options does this drive provide?

A: The ACS355 offers a panel mount design with screw terminal block connections, ensuring secure and efficient wiring. Its compact dimensions (180 x 70 x 160 mm) and lightweight build (1.1 kg) make it easy to integrate into various industrial control cabinets.

Q: When should I use the sensorless vector control mode versus V/Hz control?

A: Sensorless vector control should be selected when precise speed and torque regulation is required-ideal for applications with fluctuating loads. V/Hz scalar control, on the other hand, is suitable for situations where simplicity and cost-effectiveness are prioritized over dynamic response.

Q: Where can I use the ACS355-03E-03E-01-4 drive?

A: This drive is suitable for a broad range of three-phase industrial applications across manufacturing, processing, and automation sectors. It meets international standards (CE, UL, cUL, RoHS), allowing installation in many global regions, including Japan.

Q: What benefits does the integrated braking chopper provide?

A: With an integrated braking chopper, the drive handles rapid deceleration more efficiently, preventing overvoltage during braking moments. This feature is particularly advantageous for applications requiring frequent stopping or high-inertia loads, improving system safety and lifespan.

Q: How does the drive minimize energy consumption and maximize efficiency?

A: By allowing adjustable frequency and voltage output, the drive matches energy supply to motor demand, reducing unnecessary consumption. Its high efficiency (up to 97%) and power factor greater than 0.98 further lower operating costs.

Q: What is the process for configuring communication interfaces?

A: The drive comes standard with Modbus communication and supports optional fieldbus modules for integration with different automation networks. Configuration is performed using the LCD keypad or via remote setup tools, simplifying connectivity within modern industrial environments.
