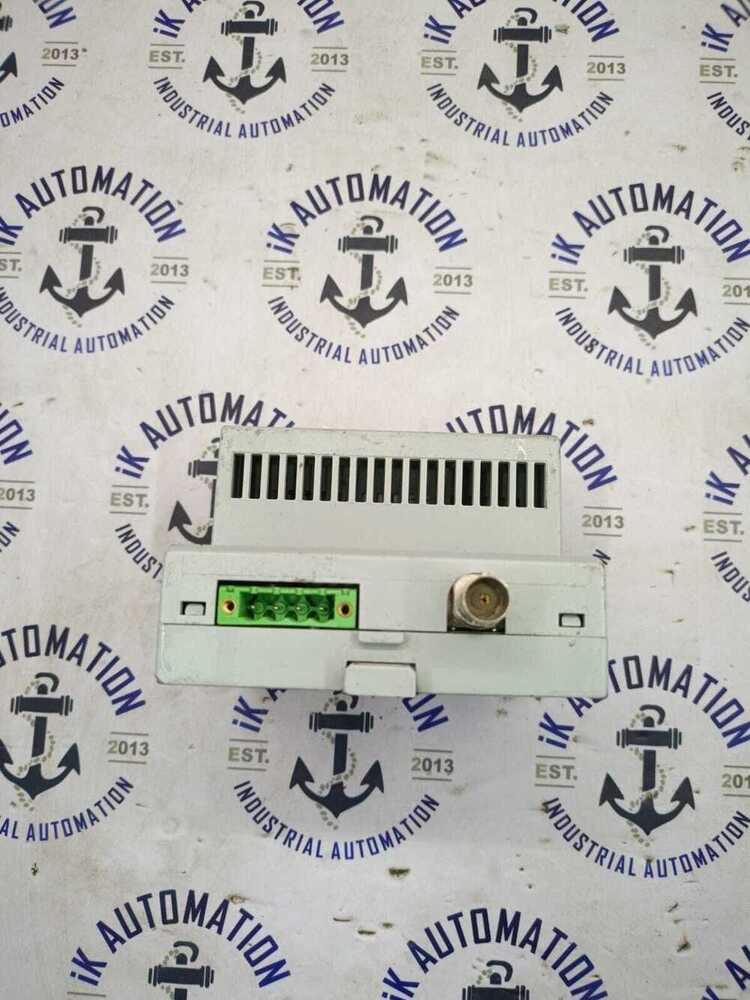

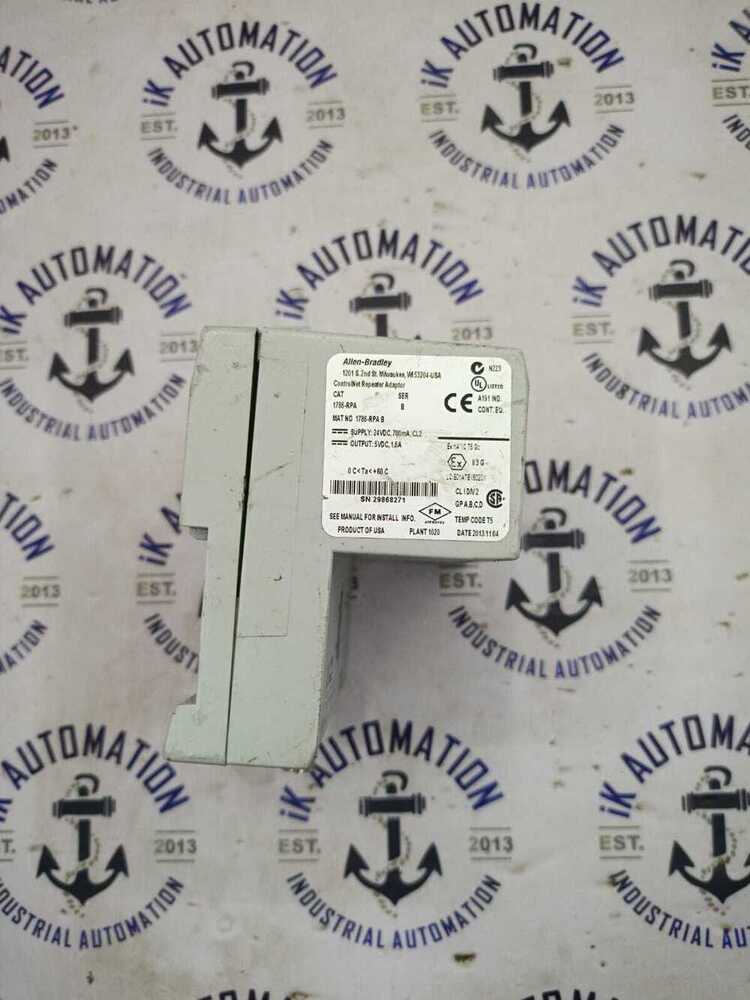

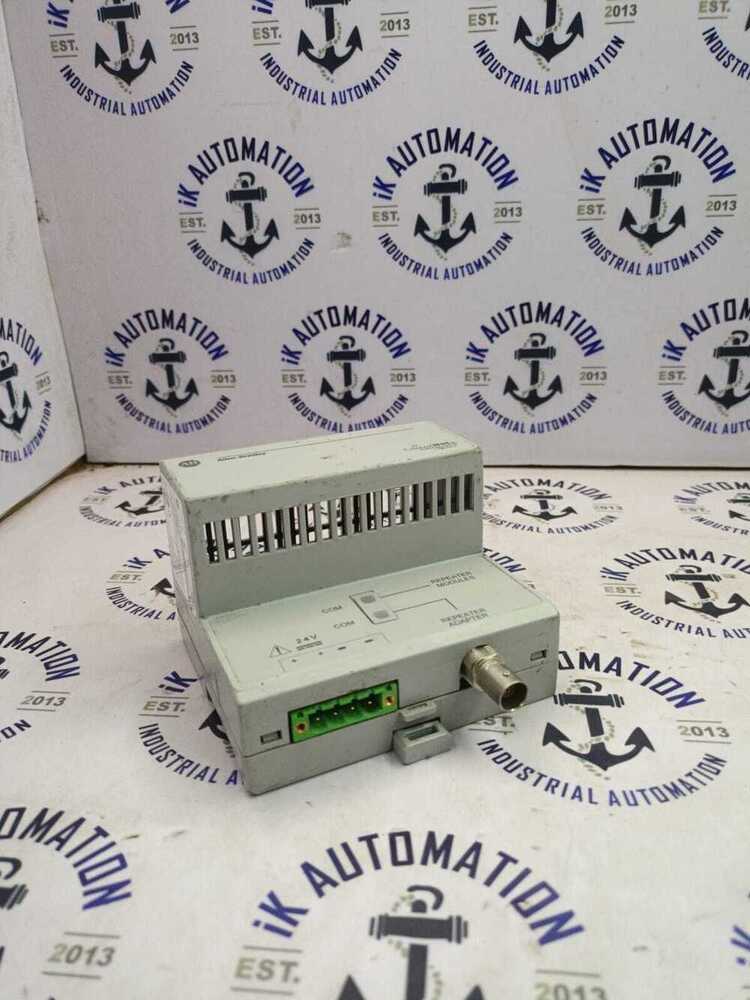

ALLEN-BRADLEY 1786-RPA

Name: ALLEN-BRADLEY 1786-RPA
Brand: IK AUTOMATION
Price: 1414 INR
Availability: InStock

Price 1414 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN-BRADLEY 1786-RPA Specification

Shape
Rectangular

Insulation Material
Industrial Polycarbonate

Humidity %
5-95% non-condensing

Feature
Hot Swappable, DIN Rail Mountable

IP Rating
IP20

Connector Type
BNC, Removable Terminal Blocks

Surface Finish
Matte / Industrial finish

Mounting Type
DIN Rail Mount

Operating Temperature
0C to 60C (32F to 140F)

Product Type
Repeater Adapter Module

Application
ControlNet Network Communication

Protection Level
Standard

Frequency (MHz)
5 MHz (Network Data Rate)

Rated Voltage
24V DC Nominal

Energy Consumption
Approx. 3W

Output Type
Repeats ControlNet Signals

Color
Grey

Dimension (L*W*H)
Est. 120 mm x 110 mm x 60 mm

Weight
Approx. 400g

Input Voltage
18-32V DC

Size
Standard Module Size

Connection Type
BNC Connector for Coaxial Cable

Material
Industrial Grade Plastic Housing

Compliances
UL Listed, CE Marked, c-UL, Class I Div 2

Network Type
ControlNet

Typical Use
Extending & Isolating ControlNet Segments

Status Indicators
Module Status, Network Status, Power LED

Isolation Voltage
50V continuous

Model Number
1786-RPA

Module Addressing
No DIP Switches - Auto addressing

Product Series
1786 Series ControlNet Components

ALLEN-BRADLEY 1786-RPA Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED ALLEN-BRADLEY 1786-RPA

ALLEN-BRADLEY 1786-RPA About

USED ALLEN-BRADLEY 1786-RPA

Brand: Allen-Bradley / Rockwell Automation
Model: 1786-RPA
Product type: ControlNet Repeater Adapter
Network: ControlNet
Function: Interface for ControlNet repeater configuration
Application: ControlNet network extension and signal regeneration
System use: Industrial PLC and automation communication networks
Compatible repeater system: Used with Allen-Bradley ControlNet repeater components such as the 1786-RPCD
Mounting: Designed for installation as part of a ControlNet repeater assembly

Seamless Extension of ControlNet Networks

The 1786-RPA serves as an effective solution for extending and segmenting ControlNet networks. Its hot-swappable and auto-addressing features allow easy installation and maintenance, even during active operations. Designed for use in diverse industrial settings, this module is robust and versatile, providing reliable network communication.

User-Friendly and Reliable Design

Featuring standard DIN rail mounting and BNC connectors, the 1786-RPA streamlines installation with minimal downtime. The matte industrial finish and clearly marked status LEDs offer instant feedback on module, network, and power status, ensuring ease of monitoring and upkeep for maintenance teams.

Built for Industrial Standards and Safety

Engineered with an IP20 rating and industrial polycarbonate insulation, the 1786-RPA prioritizes safety and compliance. It operates consistently in harsh conditions, withstanding temperatures from 0C to 60C and humidity between 5-95%. Compliance with UL Listed, CE, and Class I Div 2 certifications testifies to its suitability for critical industrial applications.

FAQ's of ALLEN-BRADLEY 1786-RPA:

Q: How is the ALLEN-BRADLEY 1786-RPA typically used in a ControlNet system?

A: The 1786-RPA is used to extend and isolate segments of ControlNet networks, enabling longer distances and improved signal integrity by repeating ControlNet signals between sections. This is essential for large-scale or complex automation systems requiring reliable data communication.

Q: What are the main benefits of the 1786-RPA's hot-swapping capability?

A: Hot-swappable design allows users to replace or install the module without disrupting system operation or powering down the ControlNet network. This feature minimizes downtime and simplifies maintenance in active industrial environments.

Q: Where should the 1786-RPA be installed within an automation setup?

A: This module is designed for DIN rail mounting inside an enclosure or panel, preferably near the segments of the ControlNet network that require extension or electrical isolation. Its compact size fits easily alongside other standard automation components.

Q: What indicators does the 1786-RPA provide for status monitoring?

A: It includes LEDs for module status, network activity, and power. These visual indicators offer quick, at-a-glance feedback to help operators and technicians assess operation and troubleshoot issues promptly.

Q: How does the 1786-RPA handle module addressing?

A: The module utilizes auto-addressing, eliminating the need for manual DIP switch configuration. This feature streamlines setup and reduces the potential for installation errors.

Q: What are the compliance certificates relevant to industrial use of the 1786-RPA?

A: The module meets UL Listed, CE Marked, c-UL, and Class I Division 2 hazardous location certifications, making it suitable for application in regulated and safety-sensitive environments.

Q: What cable and connector types are compatible with the 1786-RPA?

A: It uses BNC connectors and supports coaxial cable for network connections, with removable terminal blocks for power wiring, ensuring installation flexibility and secure connectivity.
