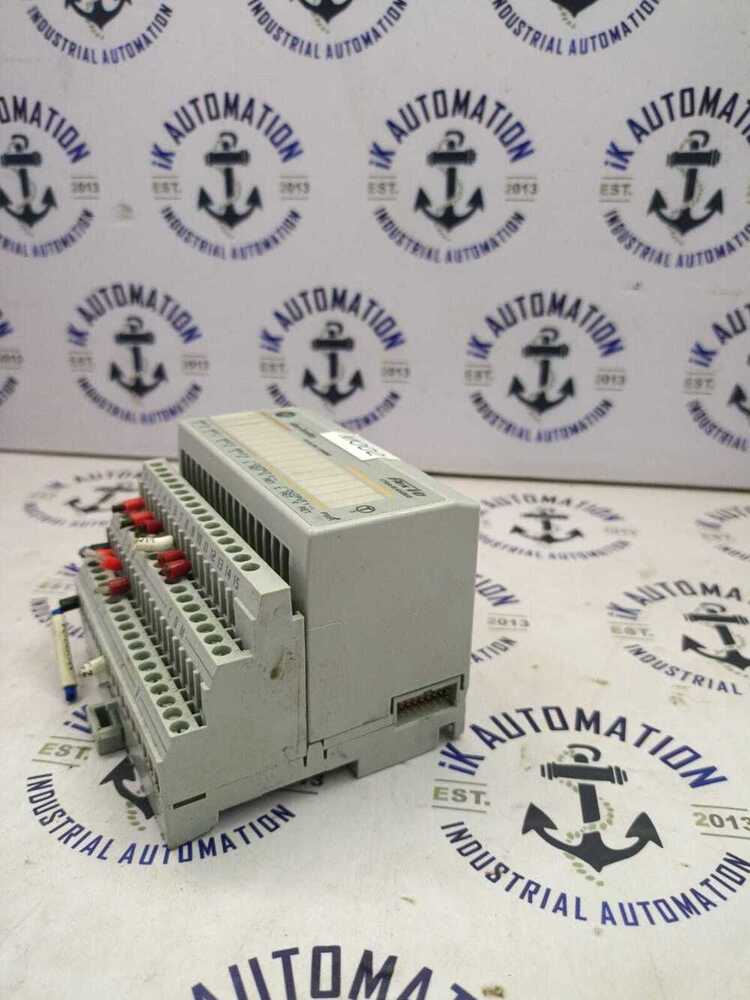

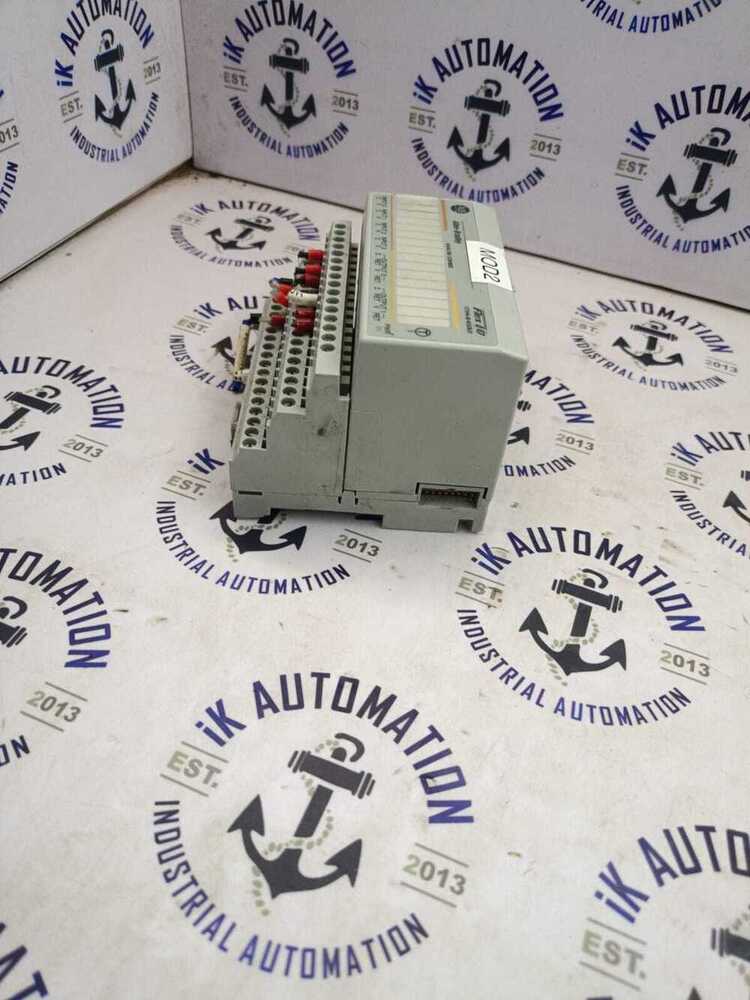

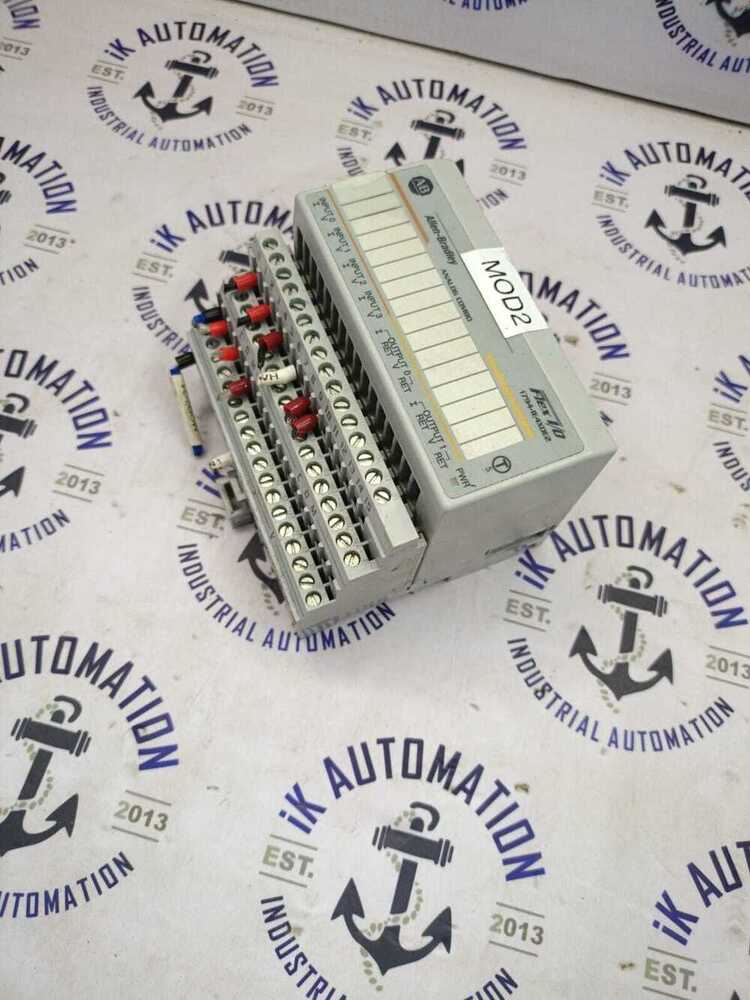

ALLEN-BRADLEY 1794-1E4X0E2

About ALLEN-BRADLEY 1794-1E4X0E2

Key specifications

• Series: Allen-Bradley FLEX I/O 1794

• Type: Analog combination I/O module

• Analog inputs: 4

• Analog outputs: 2

• Input signals:

  • 0–10 V DC

  • ±10 V DC

  • 0–20 mA

  • 4–20 mA

• Output signals:

  • 0–10 V DC

  • 0–20 mA

  • 4–20 mA

• Resolution: 12-bit plus sign

• Power: 24 V DC nominal, operating range 10.5–31.2 V DC

• Current consumption: approximately 165 mA at 24 V DC

• Outputs: Non-isolated, 2 single-ended channels

• Terminal bases: Compatible with 1794-TB2, TB3, TB3S, TB3T and TB3TS

• Operating temperature: 0–55 °C

• Hazardous-area certification: The module has ATEX/UKEX Zone 2 approval with Ex nA IIC T4 Gc classification.
