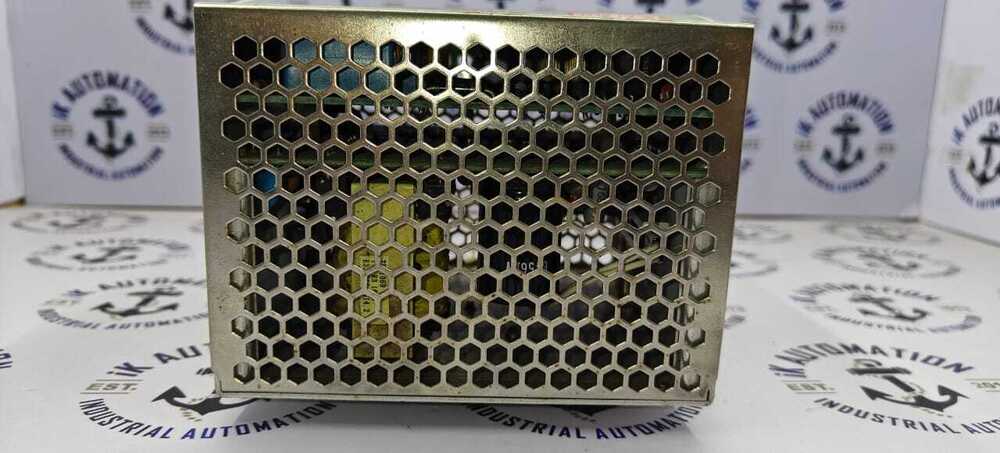

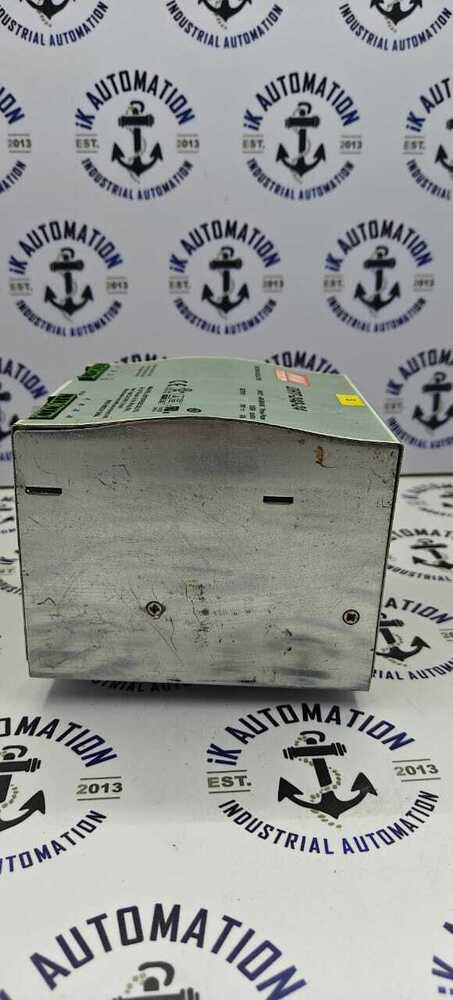

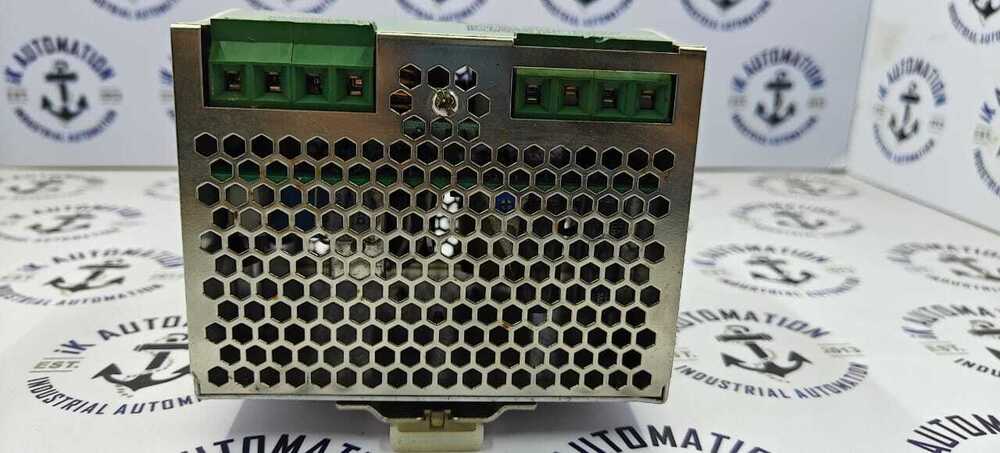

MEAN WELL DRT-240-24

Name: MEAN WELL DRT-240-24
Brand: IK AUTOMATION
Price: 1218 INR
Availability: InStock

Price 1218 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MEAN WELL DRT-240-24 Specification

Connector Type
Screw Terminal

IP Rating
IP20

Surface Finish
Anodized

Overheating Protection
YES

Insulation Material
Polycarbonate

Feature
High Reliability, LED Indicator, Power Good Signal

Mounting Type
DIN Rail Mount

Power Factor
>0.93

Shape
Rectangular

Humidity %
20% 90% RH

Efficiency
>91%

Operating Temperature
-20C to +60C Celsius (oC)

Product Type
DIN Rail Power Supply

Application
Industrial Automation, Control Panels

Protection Level
Overload, Over Voltage, Short Circuit

Frequency (MHz)
47 63 Hz Hertz (HZ)

Rated Voltage
24 VDC Volt (V)

Output Type
DC

Color
Silver / Blue

Dimension (L*W*H)
125.2 x 100 x 117 mm Millimeter (mm)

Weight
1.2 kg Kilograms (kg)

Input Voltage
340 550VAC Volt (V)

Size
Standard

Phase
Three Phase

Connection Type
DIN Rail

Material
Metal

No Of Poles
Single

Type
Switching Mode Power Supply

Case Material
Aluminum

Approval
TUV, UL, CB, CE

Ripple & Noise
150mVp-p

Remote ON/OFF
No

Overload Protection
105% 150%

Hold-up Time
> 16ms (Full Load)

Storage Temperature
-40C to +85C

Cooling Type
Free air convection

Safety Standards
EN61000-6-2, EN61000-6-4, EN55022 Class B

Rated Current
10A

Parallel Operation
No

LED Indicator
Power ON

Vibration Resistance
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

MEAN WELL DRT-240-24 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CUSTOMER

Main Domestic Market
All India

Certifications
USED MEAN WELL DRT-240-24

About MEAN WELL DRT-240-24

The MEAN WELL DRT-240-24 is a special, cost-effective switching mode power supply remarked for its robust 24 VDC, 10A output and 240W energy consumption. Highly sought-after for industrial automation and control panels, its rarefied reliability is reinforced by overload, over voltage, short circuit, and overheating protection. Featuring a vivid LED indicator for Power ON, efficient free air convection cooling, and remarkable vibration resistance, this single-pole, three-phase unit boasts an anodized aluminum case for durability. Approved by TUV, UL, CB, and CE, it's an ideal purchase for applications demanding high standards and dependability.

Versatile Industrial Application and Usage

The MEAN WELL DRT-240-24 is designed for seamless integration into a range of industrial automation surfaces, control panels, and machinery setups. With its rectangular DIN rail mount shape and compact size, this unit streamlines installation in crowded electrical enclosures. Commercial users benefit from its high reliability and minimal maintenance, making it suitable for OEMs, system integrators, and factories seeking dependable power supplies in challenging environments, ensuring consistent performance in daily operations.

Export Markets, Certifications, and Delivery Insight

With its global recognition, the MEAN WELL DRT-240-24 finds remarkable demand in major export markets, especially across Europe, Asia, and China. Its certifications-TUV, UL, CB, CE-provide assurance for stringent compliance and safe operation. When you finalize your purchase, expect a swift drop-off and quick arrival, thanks to efficient logistics networks. Contact your dealer or distributor for the competitive asking price and reliable delivery time, ensuring your projects face minimal downtime.

FAQ's of MEAN WELL DRT-240-24:

Q: How does the MEAN WELL DRT-240-24 ensure safe and reliable operation in industrial settings?

A: The DRT-240-24 integrates overload, over voltage, short circuit, and overheating protection, guaranteeing safe and stable power delivery under demanding industrial conditions. Its robust aluminum case and vibration resistance further enhance operational reliability.

Q: What are the key commercial applications for the MEAN WELL DRT-240-24?

A: This power supply is widely used in industrial automation, control panels, and machinery requiring high efficiency and reliability, serving OEMs, manufacturers, and large-scale systems integrators.

Q: Where can I purchase the MEAN WELL DRT-240-24 and are there dealer or distributor options?

A: You may acquire the DRT-240-24 from authorized dealers, distributors, exporters, importers, retailers, and wholesalers globally. These channels provide tailored solutions and support for end users and commercial buyers alike.

Q: What safety and quality certifications does the MEAN WELL DRT-240-24 hold?

A: The DRT-240-24 is certified to TUV, UL, CB, and CE standards, and complies with EN61000-6-2, EN61000-6-4, and EN55022 Class B for electromagnetic compatibility and safety-strengthening its suitability for international markets.

Q: When can I expect the arrival of the MEAN WELL DRT-240-24 after placing an order?

A: Delivery time depends on your location and chosen supplier, but reputable dealers and distributors prioritize efficient drop-off to minimize waiting, often providing precise estimates at the time of purchase.

Q: What are the benefits of its DIN rail mounting and aluminum case design?

A: DIN rail mounting simplifies installation within industrial panels, while the anodized aluminum case provides durability, effective heat dissipation, and added protection in harsh conditions.
