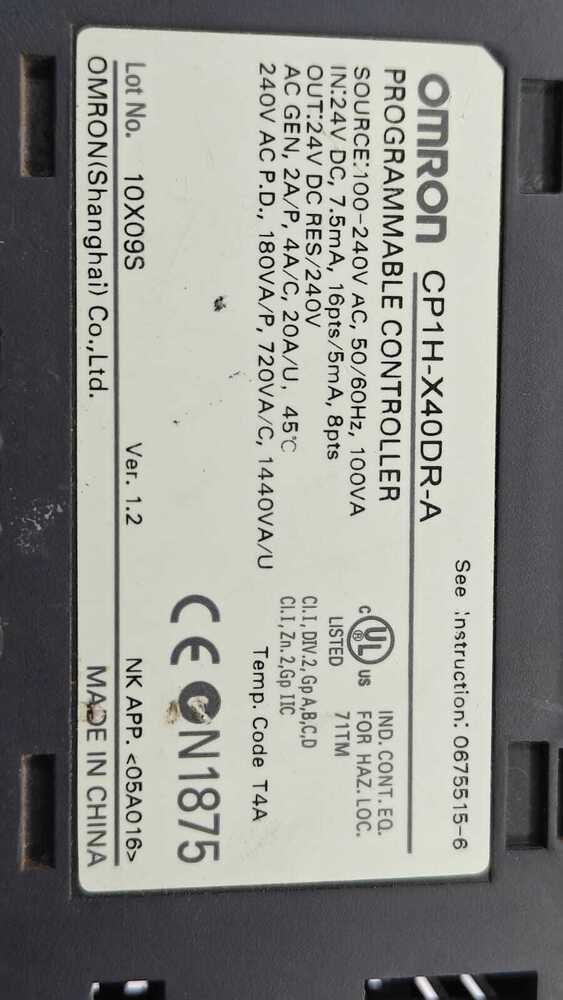

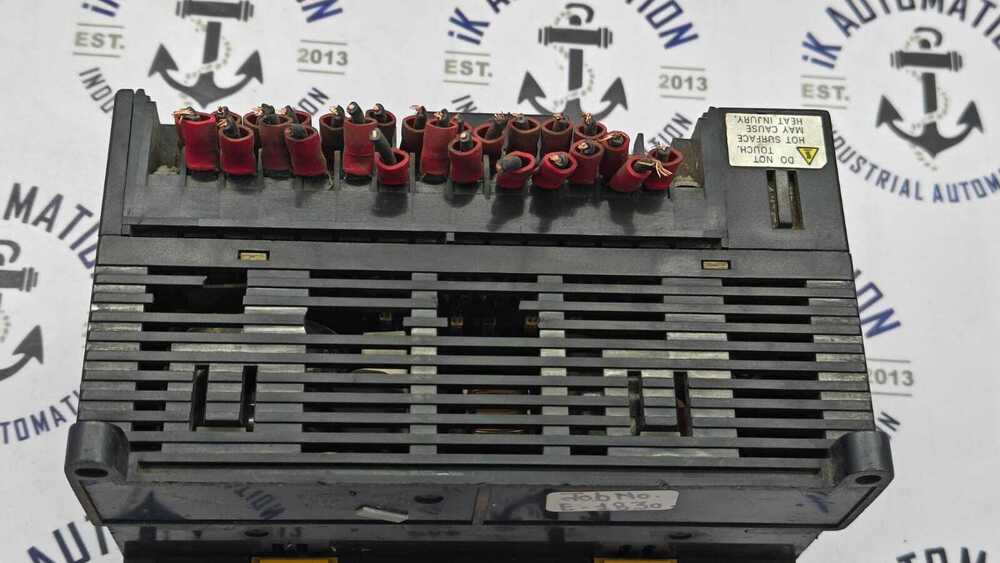

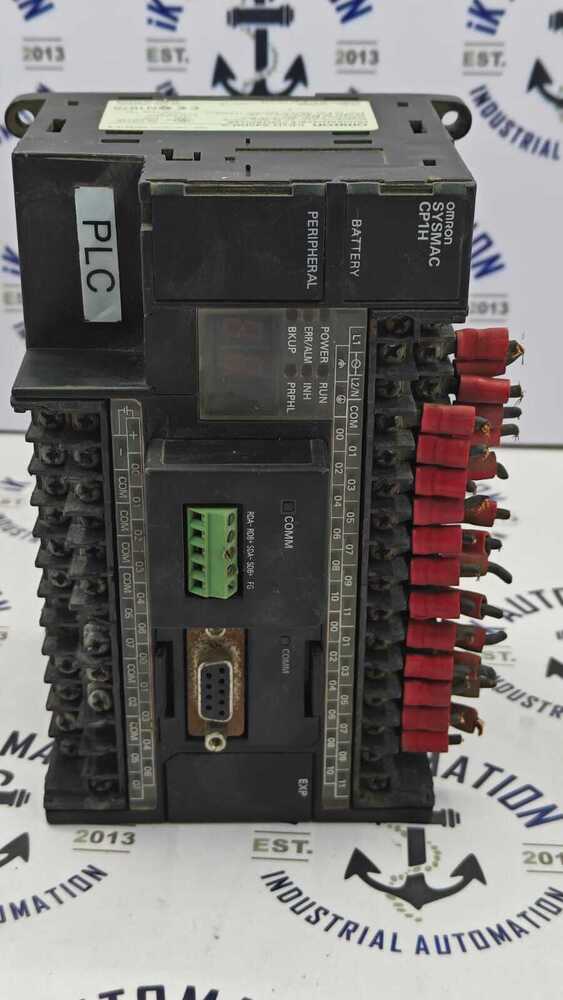

OMRON CP1H-X40DR-A

Name: OMRON CP1H-X40DR-A
Brand: IK AUTOMATION
Price: 1794 INR
Availability: InStock

Price 1794 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON CP1H-X40DR-A Specification

Mounting Type
DIN Rail

Humidity %
10% to 90% RH (non-condensing)

Operating Temperature
0C to 55C Celsius (oC)

Surface Finish
Matte

Feature
High-speed Counter, Pulse Output, Ethernet Communication (Optional)

Efficiency
High

Power Factor
>0.8

Connector Type
Removable Terminal Block

Overheating Protection
YES

Shape
Rectangular

IP Rating
IP20

Insulation Material
Polycarbonate

Product Type
Programmable Logic Controller (PLC)

Application
Automation Control Systems, Industrial Machinery

Protection Level
Overcurrent, Overvoltage, Short-circuit

Frequency (MHz)
50/60 Hz Hertz (HZ)

Rated Voltage
AC100 to 240V Volt (V)

Output Type
Relay

Color
Grey

Dimension (L*W*H)
130 mm 100 mm 85 mm Millimeter (mm)

Weight
650 g Grams (g)

Input Voltage
24 V DC (for inputs) Volt (V)

Phase
Single/Three Phase (Depending on Application)

Size
Standard Compact Size

Connection Type
Screw Terminal

Material
Industrial Grade Plastic and Metal

High-Speed Pulse Output
2 axes, 1 Hz to 100 kHz

Response Time
Input: 10 ms max, Output: 10 ms max

Controller Type
CP1H series (CPU Unit)

Input Points
24 (24 VDC, Sink/Source)

Clock
Built-in real-time clock

Display Type
Status LED Indicators

Expansion Capability
Up to 7 expansion modules

Battery Backup
Supported (optional battery)

Communication Ports
1x RS-232C, 2x RS-485, USB device

Memory Capacity
20K steps program capacity, 32K words data memory

Output Points
16 (Relay Output type)

OMRON CP1H-X40DR-A Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED OMRON CP1H-X40DR-A

About OMRON CP1H-X40DR-A

Discover the splendid performance of the OMRON CP1H-X40DR-A, a top-tier PLC solution for dynamic industrial automation needs. Featuring 24 input points (24 VDC), 16 relay outputs, and a generous 20K steps program capacity, this new release ensures rapid, reliable control. Expandable up to 7 modules, with versatile communication ports (RS-232C, RS-485, USB), its ideal for complex systems. Ending soon try now and elevate your automation with best-in-class protection, high-speed pulse output, and robust construction. The perfect choice for automation professionals!

Versatile Industrial AutomationApplications Unmatched

The OMRON CP1H-X40DR-A excels in industrial automation settings, making it the best choice for complex machinery control, process automation, and monitoring. It is specifically engineered for integration in control panels, production lines, and reliable automation systems across various factories. Its top-tier response time and high-speed pulse output capabilities are ideal for synchronized motion, batch production, and process management. Simply put, this controller is indispensable whenever precision and efficiency in automation are required.

Dynamic Supply, Quick Delivery & Trusted Export Partner

OMRON CP1H-X40DR-A is stocked and ready for prompt distribution, catering to export and domestic markets alike. Our supply ability supports bulk and small orders, assuring steady availability. Expect packaging that guarantees product safety during transit and efficient lead times. Standard deliveries are swift, while sample units can be arranged for evaluation upon request. Rely on us for consistent, ready-to-ship stock to meet your system upgrade timelines.

FAQs of OMRON CP1H-X40DR-A:

Q: How can I utilize the expansion capability of the OMRON CP1H-X40DR-A?

A: The controller supports up to 7 expansion modules, enabling you to scale input/output points or integrate additional functions like analog input, positioning, or communication as your system grows.

Q: What are the main usage scenarios for the OMRON CP1H-X40DR-A?

A: This PLC is best employed in industrial automation control systems, especially for production lines, process integration, and machine automation where precise, high-speed control and robust protection features are required.

Q: When is it beneficial to use the high-speed pulse output feature?

A: The high-speed pulse output is ideal for applications requiring synchronized and rapid movement, such as stepper or servo motor control in automated assembly or packaging lines.

Q: Where should I install the OMRON CP1H-X40DR-A for optimal performance?

A: Install the device on a DIN rail inside a control panel, ensuring environmental conditions stay within the specified temperature and humidity range. Avoid direct exposure to dust, moisture, or vibration for long-term reliability.

Q: What is the process for connecting the OMRON CP1H-X40DR-A to other equipment?

A: Connections are facilitated through removable terminal blocks and screw terminals for I/O, while communication is enabled by built-in RS-232C, dual RS-485, and a USB device port for easy integration with human-machine interfaces or SCADA systems.
